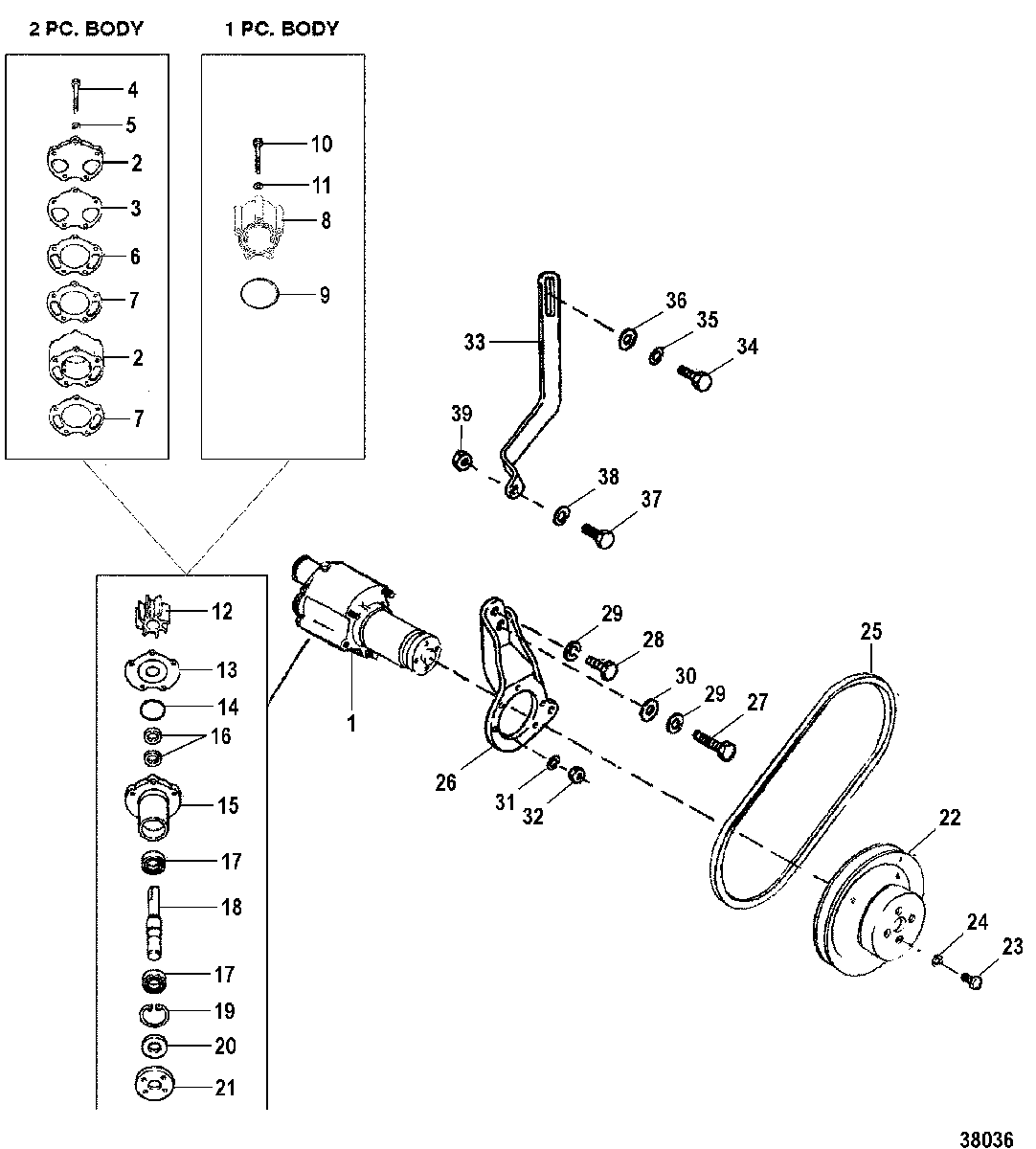

SEA WATER PUMP(FUEL COOLED SYSTEM) (S/N 0K147350 & UP) для Mercruiser - 454 MAG. BRAVO MPI (GEN VI) GM 454 V-8 1996-1997 0F802350 THRU 0K999999
-
№АртикулНазвание
-
146-807151A12 PUMP ASSEMBLY, SeawaterPUMP ASSEMBLY, Seawater
-
246-807151A14 BODY AND COVER
TWO PIECE BODYBODY AND COVER
TWO PIECE BODY -
327-8052151 GASKET
TWO PIECE BODYGASKET
TWO PIECE BODY -
410-73275 SCREW, (.312-18 x 2.88)
TWO PIECE BODYSCREW, (.312-18 x 2.88)
TWO PIECE BODY -
410-99347 SCREW, (.312-18 x 3.75)
TWO PIECE BODYSCREW, (.312-18 x 3.75)
TWO PIECE BODY -
512-20084 WASHER, (.328 x .562 x .062)
TWO PIECE BODYWASHER, (.328 x .562 x .062)
TWO PIECE BODY -
694916 WEAR PLATE, Wear (Outer)
TWO PIECE BODYWEAR PLATE, Wear (Outer)
TWO PIECE BODY -
727-94914 GASKET
TWO PIECE BODYGASKET
TWO PIECE BODY -
846-807151A14 BODY AND COVER, Water Pump
ONE PIECE BODYBODY AND COVER, Water Pump
ONE PIECE BODY -
925-33465 QUAD RING
ONE PIECE BODYQUAD RING
ONE PIECE BODY -
1010-807356 SCREW, (.312-18 x 2.680)
ONE PIECE BODYSCREW, (.312-18 x 2.680)
ONE PIECE BODY -
1010-74822 SCREW, (.312-18 x 3.500)
ONE PIECE BODYSCREW, (.312-18 x 3.500)
ONE PIECE BODY -
1112-814806 WASHER, (.344 x .688 x .065) Stainless Steel
ONE PIECE BODYWASHER, (.344 x .688 x .065) Stainless Steel
ONE PIECE BODY -
1247-59362T1 IMPELLERIMPELLER
-
1394576 WEAR PLATE, Wear (Inner)WEAR PLATE, Wear (Inner)
-
1425-94288 QUAD RINGQUAD RING
-
1546-94913A2 HOUSING ASSEMBLY, Water PumpHOUSING ASSEMBLY, Water Pump
-
1626-90562 SEAL, (1.254 x .312), OilSEAL, (1.254 x .312), Oil
-
1730-72961 BEARING, BallBEARING, Ball
-
1859501A1 SHAFTSHAFT
-
1953-23720 RING, Retaining, SnapRING, Retaining, Snap
-
2026-72785 SEAL, OilSEAL, Oil
-
2147530 HUBHUB
-
2252822T PULLEYPULLEY
-
2310-47277 SCREW, (.312-24 x .750)SCREW, (.312-24 x .750)
-
2413-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
2557-13457Q BELTBELT
-
2615295T BRACKETBRACKET
-
2710-47461 SCREW, (.437-14 x 1.00)SCREW, (.437-14 x 1.00)
-
2810-17965 SCREW, (.437-14 x .70)SCREW, (.437-14 x .70)
-
2913-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
3012-27025 WASHERWASHER
-
3113-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
3211-21908 NUT, (.312-18) Cad PlatedNUT, (.312-18) Cad Plated
-
3315751T BRACEBRACE
-
3410-47461 SCREW, (.437-14 x 1.00)SCREW, (.437-14 x 1.00)
-
3513-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
3612-74758 WASHERWASHER
-
3710-35786 SCREW, (.375-24 x 1.00)SCREW, (.375-24 x 1.00)
-
3813-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3911-46335 NUT, (.375-24)NUT, (.375-24)
