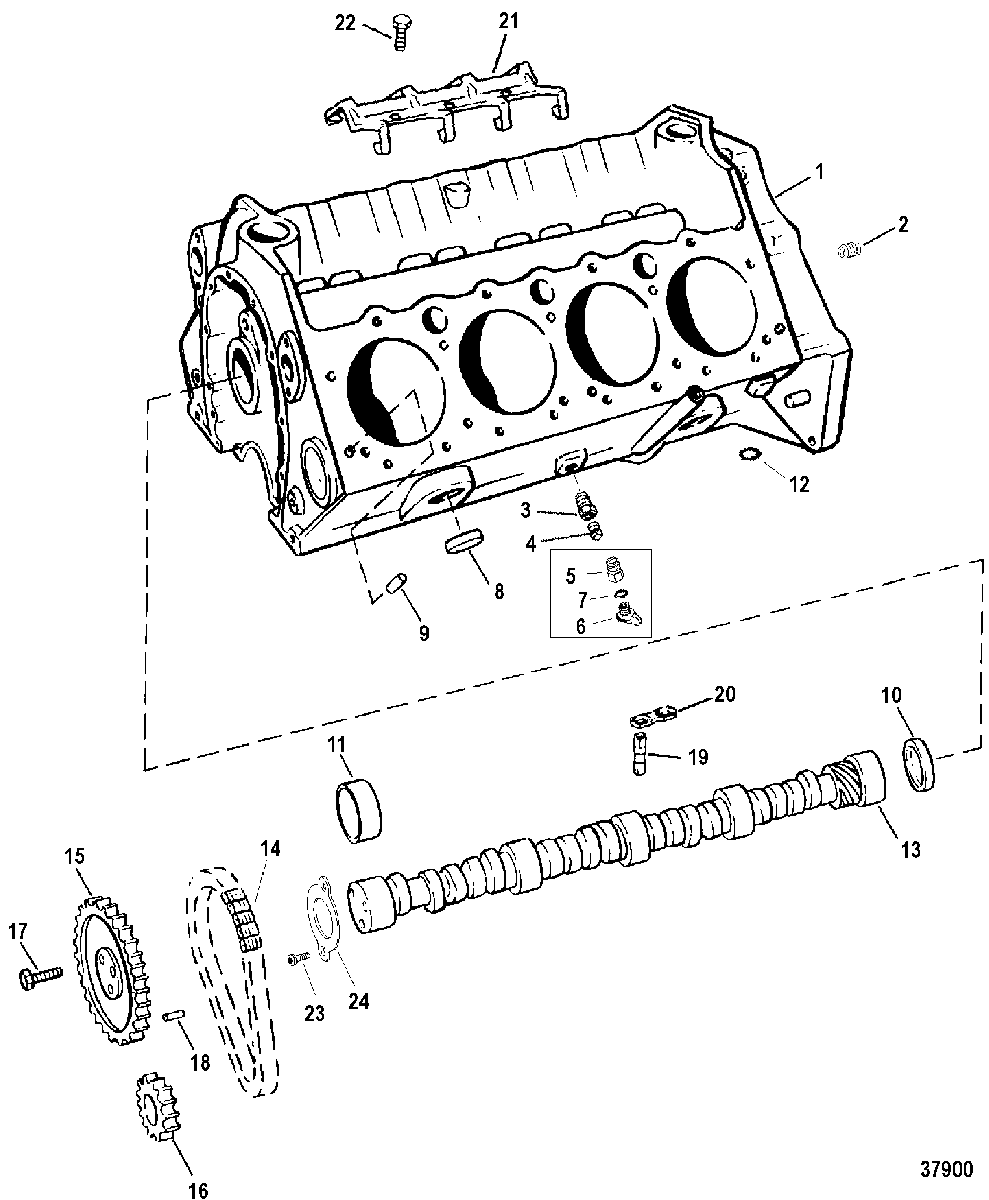

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 454 MAG. BRAVO MPI (GEN VI) GM 454 V-8 1996-1997 0F802350 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    NSS NOT SOLD SEPARATE, CYLINDER BLOCK ASSEMBLY
    (454) (ORDER LONG BLOCK 807744A1)
    NOT SOLD SEPARATE, CYLINDER BLOCK ASSEMBLY
    (454) (ORDER LONG BLOCK 807744A1)
  • 1
    NSS NOT SOLD SEPARATE, CYLINDER BLOCK ASSEMBLY
    (502) (ORDER LONG BLOCK 807745A1)
    NOT SOLD SEPARATE, CYLINDER BLOCK ASSEMBLY
    (502) (ORDER LONG BLOCK 807745A1)
  • 2
    22-32561 PLUG, (.250-18 x .41), Pipe
    PLUG, (.250-18 x .41), Pipe
  • 2
    22-12524 PLUG, (.375), Pipe
    PLUG, (.375), Pipe
  • 3
    22-48556 BUSHING , Reducer (.250 To .125)
    BRASS DRAIN PLUG
    BUSHING , Reducer (.250 To .125)
    BRASS DRAIN PLUG
  • 4
    22-328022 PLUG, Pipe (.125-27)
    BRASS DRAIN PLUG
    PLUG, Pipe (.125-27)
    BRASS DRAIN PLUG
  • 5
    22-860088 BUSHING, Adaptor
    PLASTIC DRAIN PLUG
    BUSHING, Adaptor
    PLASTIC DRAIN PLUG
  • 6
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue, Drain
    PLASTIC DRAIN PLUG
    PLUG KIT, (.500-13) Royal Blue, Drain
    PLASTIC DRAIN PLUG
  • 7
    25-32509 QUAD RING
    PLASTIC DRAIN PLUG
    QUAD RING
    PLASTIC DRAIN PLUG
  • 8
    19-34270 EXPANSION PLUG, (1.625)
    EXPANSION PLUG, (1.625)
  • 9
    17-52190 PIN, Dowel
    PIN, Dowel
  • 10
    19-94140 EXPANSION PLUG (Rear Camshaft Hole)
    EXPANSION PLUG (Rear Camshaft Hole)
  • 11
    23-85684 BEARING SET
    BEARING SET
  • 12
    25-69756 O-RING, (.500 Inch), Rear Main Cap Oil Passage
    O-RING, (.500 Inch), Rear Main Cap Oil Passage
  • 13
    431-850478T CAMSHAFT
    CAMSHAFT
  • 14
    845796T CHAIN, Timing
    CHAIN, Timing
  • 15
    43-845795T SPROCKET, Camshaft
    SPROCKET, Camshaft
  • 16
    43-845794T SPROCKET, Crankshaft
    SPROCKET, Crankshaft
  • 17
    10-8M0043993 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 18
    17-843378 PIN, Dowel (1/4 In. Diameter) (1/4 in. Dia.)
    PIN, Dowel (1/4 In. Diameter) (1/4 in. Dia.)
  • 19
    850466T LIFTER, Roller
    LIFTER, Roller
  • 20
    845754 GUIDE, Lifter
    GUIDE, Lifter
  • 21
    8M0050807 RETAINER, Lifter Guide
    RETAINER, Lifter Guide
  • 22
    10-841389 SCREW, (.312-18 x .625), Retainer
    SCREW, (.312-18 x .625), Retainer
  • 23
    845941 RETAINER, Camshaft
    RETAINER, Camshaft
  • 24
    10-845943 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • -
    807744A1 MARINE LONG BLOCK
    (454 MAGNUM)
    MARINE LONG BLOCK
    (454 MAGNUM)
  • -
    807745A3 MARINE LONG BLOCK
    (502 MAGNUM)
    MARINE LONG BLOCK
    (502 MAGNUM)
  • -
    92-809825 RTV SILICONE, (3 Ounce Tube) Metallic Blue
    RTV SILICONE, (3 Ounce Tube) Metallic Blue
  • -
    92-34227Q02 SEALING COMPOUND, (16 Ounce)
    SEALING COMPOUND, (16 Ounce)
