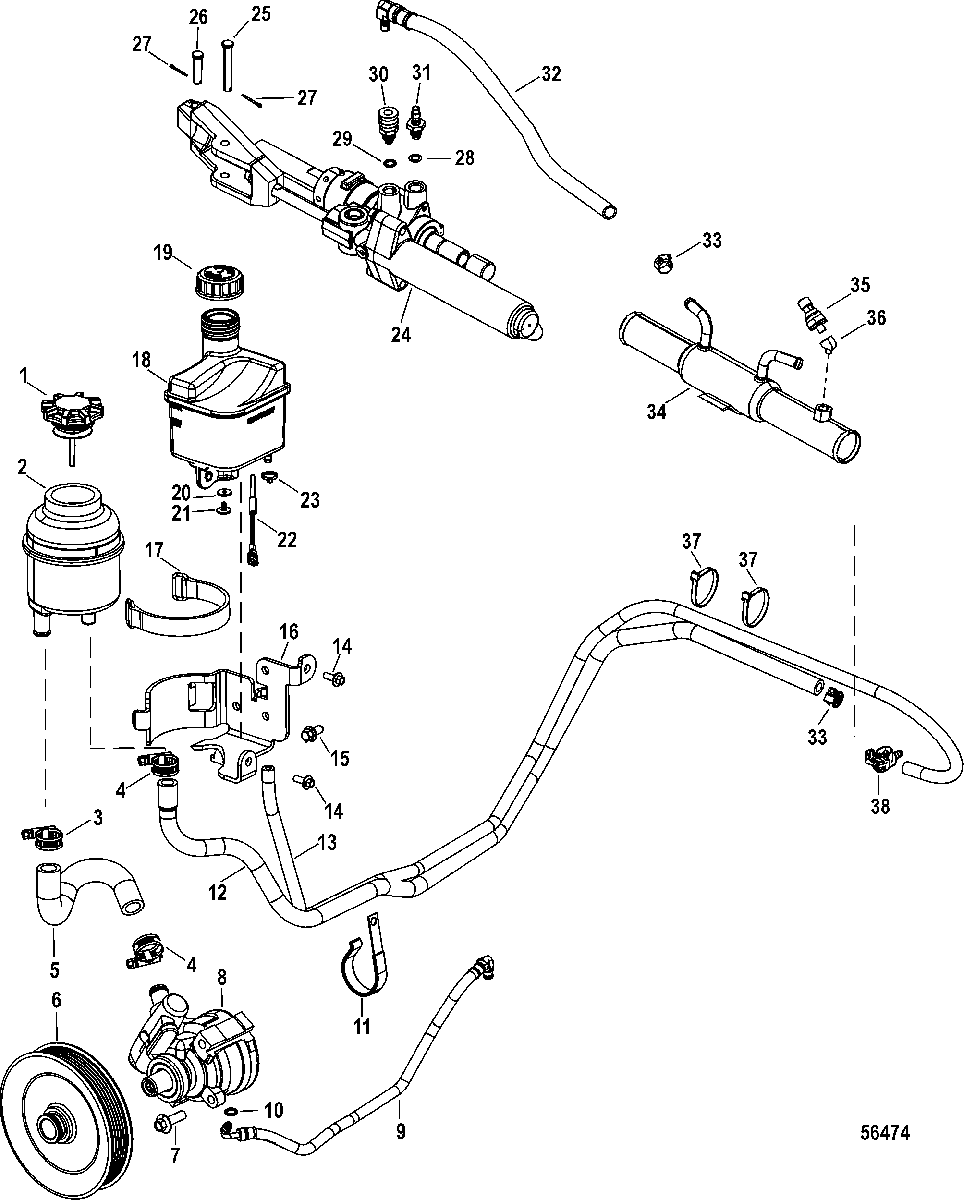

Steering System and Drive Lube Bottle для Mercruiser - 4.5L MPI 200 Alpha/Bravo 2A441953 & Up

  • №
    Артикул
    Название
  • 1
    8M0121096 CAP, Oil Reservoir - Black
    CAP, Oil Reservoir - Black
  • 2
    8M0121093 RESERVOIR ASSEMBLY, Oil, Power Steering
    RESERVOIR ASSEMBLY, Oil, Power Steering
  • 3
    54-8M0083431 CLAMP
    CLAMP
  • NS
    19-8M0074363 CAP
    CAP
  • 4
    54-F698772 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 5
    32-8M0077292 HOSE, Oil, Pump to Reservoir
    HOSE, Oil, Pump to Reservoir
  • 6
    861578 PULLEY
    PULLEY
  • 7
    10-4010725 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 8
    98-8M0110722 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 9
    32-8M0107544 HOSE ASSEMBLY, Pump to Cylinder
    HOSE ASSEMBLY, Pump to Cylinder
  • 9
    32-8M0107543 HOSE ASSEMBLY, Pump to Cylinder
    Bravo FWC
    HOSE ASSEMBLY, Pump to Cylinder
    Bravo FWC
  • 10
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
  • 11
    54-8M6002411 CLIP
    CLIP
  • 12
    32-8M0077293 HOSE, Oil, Reservoir to Cooler
    HOSE, Oil, Reservoir to Cooler
  • 13
    32-8M0080036 HOSE ASSEMBLY, Bottle to Transom
    HOSE ASSEMBLY, Bottle to Transom
  • 14
    10-4006731 SCREW, (M6 x 16) Stainless Steel
    SCREW, (M6 x 16) Stainless Steel
  • 15
    10-88552616 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 16
    8M0095757 BRACKET
    BRACKET
  • 17
    8M0088265 STRAP
    STRAP
  • 18
    8M0095479 LUBE BOTTLE ASSEMBLY
    LUBE BOTTLE ASSEMBLY
  • 19
    36-8067271 CAP, Drive Lube Monitor
    CAP, Drive Lube Monitor
  • 20
    12-72761 WASHER, (.203 x .562 x .060) Stainless Steel
    WASHER, (.203 x .562 x .060) Stainless Steel
  • 21
    10-58376 SCREW, (.164-18 x .375)
    SCREW, (.164-18 x .375)
  • 22
    87-856156T04 SWITCH
    SWITCH
  • 23
    69355 TIE STRAP, (5.50 Inches)
    TIE STRAP, (5.50 Inches)
  • 24
    8M0063382 CYLINDER ASSEMBLY, Power Steering
    CYLINDER ASSEMBLY, Power Steering
  • 25
    17-15878 PIN, Clevis
    PIN, Clevis
  • 26
    17-16419 PIN, Clevis
    PIN, Clevis
  • 27
    18-46950 COTTER PIN
    COTTER PIN
  • 28
    25-806232 O-RING, (.239 x .064)
    O-RING, (.239 x .064)
  • 29
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
  • 30
    22-865415 FITTING
    FITTING
  • 31
    22-865414001 FITTING
    FITTING
  • 32
    32-865390015 HOSE, Male Quick Connect, Cylinder to Cooler
    HOSE, Male Quick Connect, Cylinder to Cooler
  • 33
    54-815504105 CLAMP, Worm Gear (11-18 mm)
    CLAMP, Worm Gear (11-18 mm)
  • 34
    8M0125858 COOLER, Power Steering
    COOLER, Power Steering
  • 35
    8M6000623 SENSOR
    SENSOR
  • 36
    22-8M0123050 FITTING, Elbow (45 Degree)
    FITTING, Elbow (45 Degree)
  • 37
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 38
    22-865379 FITTING, Female, To Transom
    FITTING, Female, To Transom
  • 39
    54-815504210 CLAMP, Worm Gear
    CLAMP, Worm Gear
