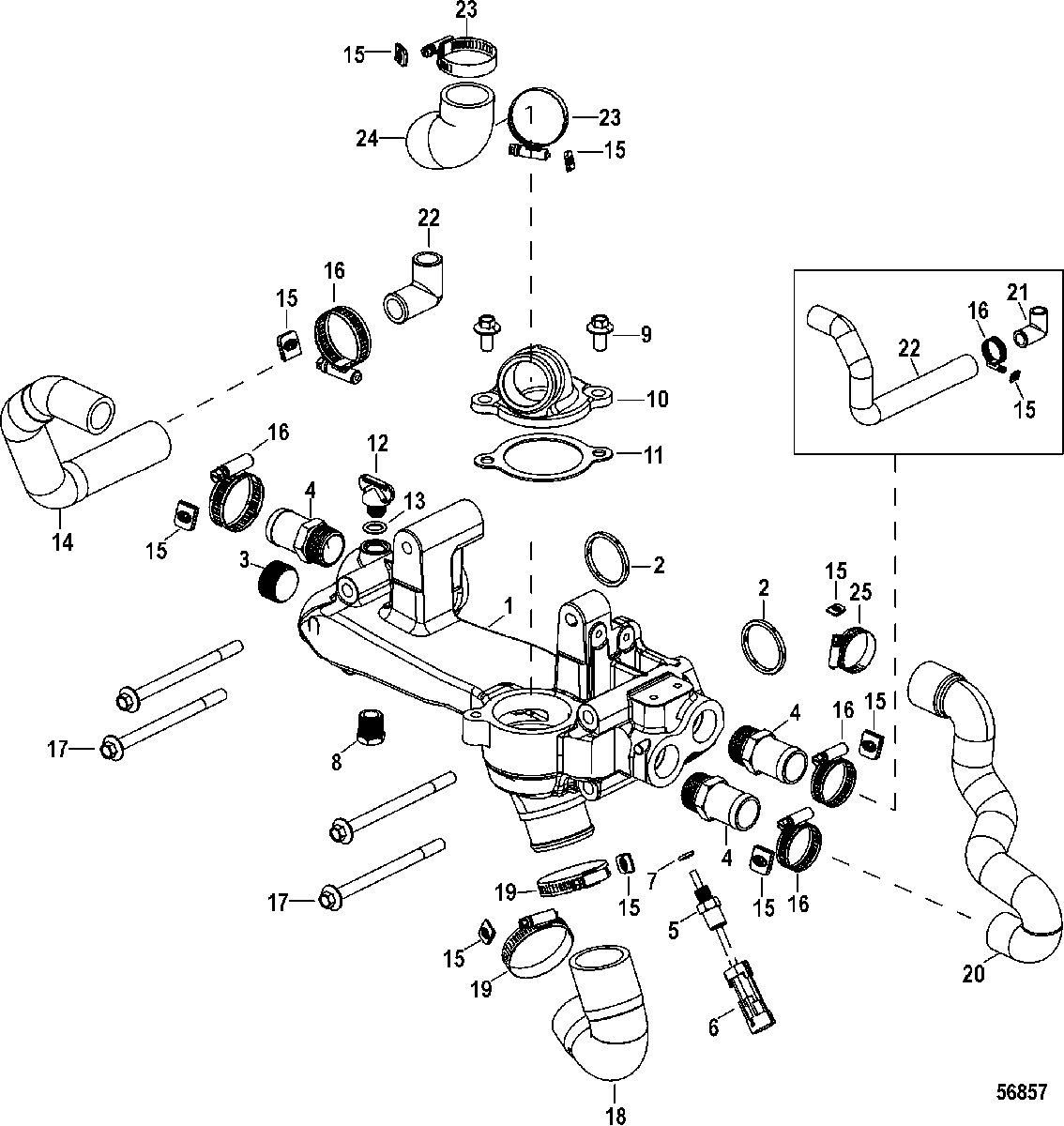

Fresh Water Cooling, Crossover Assembly для Mercruiser - 4.5L MPI 200 Alpha/Bravo 2A441953 & Up
-
№АртикулНазвание
-
18M0107035 CROSSOVERCROSSOVER
-
28M0081836 SEALSEAL
-
322-428611 FITTING, Pipe - Brass (.750-14)FITTING, Pipe - Brass (.750-14)
-
422-866725 FITTING, Straight (.750-14)FITTING, Straight (.750-14)
-
5885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
6830796A1 CONNECTOR ASSEMBLYCONNECTOR ASSEMBLY
-
725-896699 O-RING, (1.78 mm x .08 mm)O-RING, (1.78 mm x .08 mm)
-
822-32803 PLUG, Pipe (.375-18) BrassPLUG, Pipe (.375-18) Brass
-
910-4009516 SCREW, (M8 x 16)SCREW, (M8 x 16)
-
108M0073879 CAPCAP
-
1127-8M0079167 GASKETGASKET
-
1222-8M0119211 PLUG ASSEMBLY, (.500-13) BluePLUG ASSEMBLY, (.500-13) Blue
-
1325-26802 O-RING, (.424 x .103)O-RING, (.424 x .103)
-
1432-8M0073900 HOSE, Crossover to Starboard ManifoldHOSE, Crossover to Starboard Manifold
-
1519-8M0074364 CAPCAP
-
1654-815504216 CLAMP, Worm Gear (1.56 Diameter)CLAMP, Worm Gear (1.56 Diameter)
-
1710-40095110 SCREW, (M8 x 110)SCREW, (M8 x 110)
-
1832-8M2023903 HOSE, Crossover to Circulating PumpHOSE, Crossover to Circulating Pump
-
1954-815504232 CLAMP, Worm Gear (2.50 Diameter)CLAMP, Worm Gear (2.50 Diameter)
-
2032-8M0088736 HOSE, Crossover to Thermostat HousingHOSE, Crossover to Thermostat Housing
-
2122-36305T ELBOWELBOW
-
2232-8M0094253 HOSE, Crossover to Port ManifoldHOSE, Crossover to Port Manifold
-
2354-815504224 CLAMP, Worm GearCLAMP, Worm Gear
-
2432-8M0078831 HOSE, Exchanger to CrossoverHOSE, Exchanger to Crossover
-
2554-815504222 CLAMP, Worm Gear (1.98 DIameter)CLAMP, Worm Gear (1.98 DIameter)
