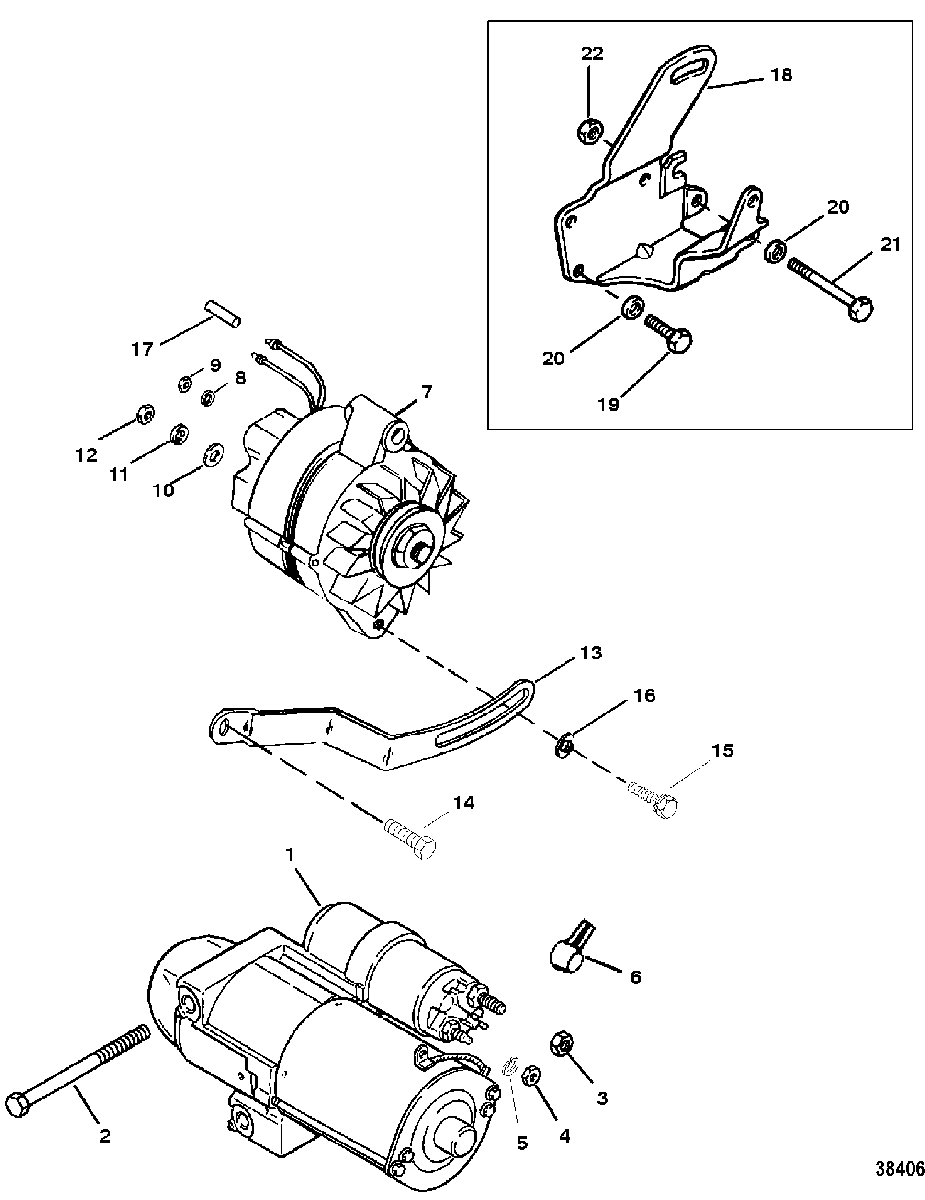

STARTER MOTOR AND ALTERNATOR для Mercruiser - 4.3LX (GEN II) (4 BBL.) GM 262 V-6 1996 0F601127 THRU 0F802999

  • №
    Артикул
    Название
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY
    (SEE "STARTER MOTOR" 5 FOR BREAKDOWN)
    STARTER MOTOR ASSEMBLY
    (SEE "STARTER MOTOR" 5 FOR BREAKDOWN)
  • 2
    10-8053432 SCREW, (.375-16 x 4.33)
    SCREW, (.375-16 x 4.33)
  • 3
    11-806949 NUT, (M8-1.5)
    NUT, (M8-1.5)
  • 4
    11-400211 NUT, (M5) Stainless Steel
    NUT, (M5) Stainless Steel
  • 5
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 6
    85-79695T BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 7
    817119A4 ALTERNATOR
    (SEE "ALTERNATOR (MANDO)" FOR BREAKDOWN)
    ALTERNATOR
    (SEE "ALTERNATOR (MANDO)" FOR BREAKDOWN)
  • 8
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 9
    11-79989 NUT, (#10-24) Stainless Steel
    NUT, (#10-24) Stainless Steel
  • 10
    12-96457 WASHER, Phenolic (.27 x .81 x .062), Phenolic
    WASHER, Phenolic (.27 x .81 x .062), Phenolic
  • 11
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 12
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 13
    85013T BRACE, Alternator Adjusting
    BRACE, Alternator Adjusting
  • 14
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 15
    10-29198 SCREW AND LOCKWASHER, (.312-18 x .875)
    SCREW AND LOCKWASHER, (.312-18 x .875)
  • 16
    12-26168 WASHER
    WASHER
  • 17
    5790811 SLEEVE, (10.00 Inches Bulk)
    SLEEVE, (10.00 Inches Bulk)
  • 18
    15083T BRACKET, Alternator
    BRACKET, Alternator
  • 19
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 19
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 20
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 21
    10-56743 SCREW, (.375-24 x 3.125)
    SCREW, (.375-24 x 3.125)
  • 22
    11-23161 NUT, (.375-24)
    NUT, (.375-24)
