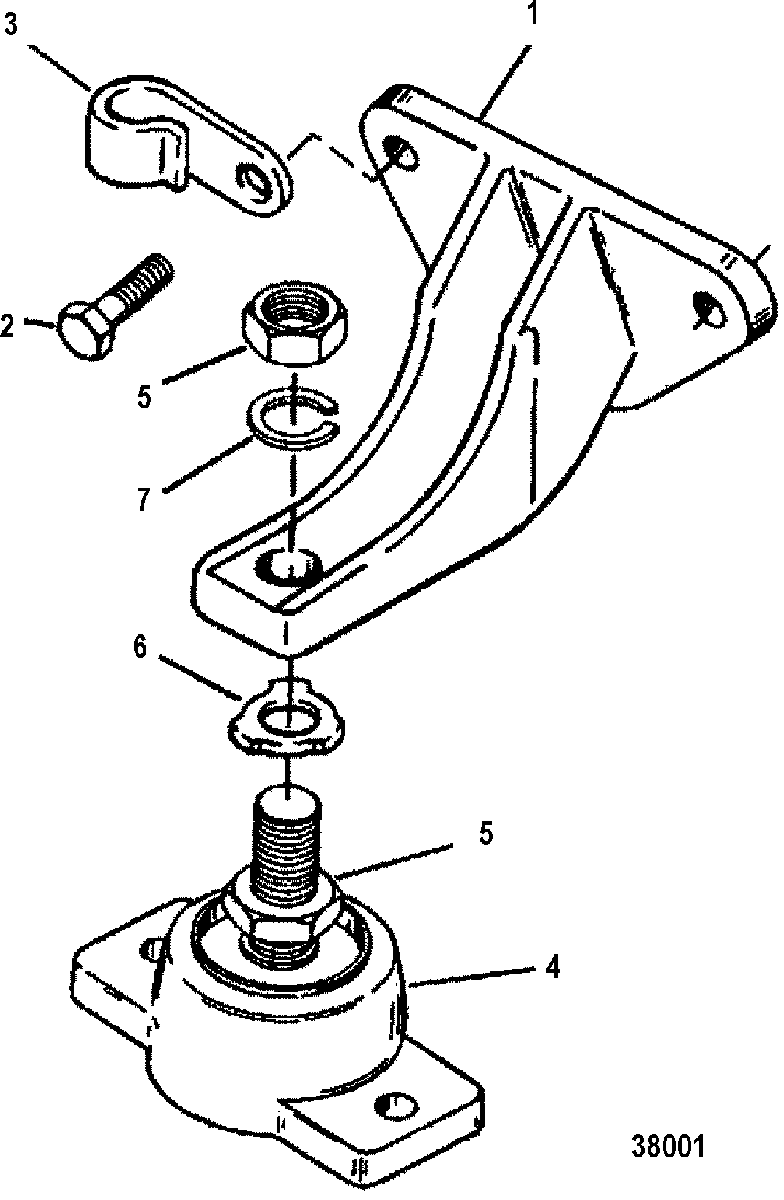

ENGINE MOUNTING для Mercruiser - 4.3LX (GEN II) (4 BBL.) GM 262 V-6 1996 0F601127 THRU 0F802999

  • №
    Артикул
    Название
  • 1
    79550A1 BRACKET (Front)
    BRACKET (Front)
  • 2
    10-68101 SCREW, (.375-16 x 1.375)
    SCREW, (.375-16 x 1.375)
  • 2
    10-48424 SCREW, (.375-16 x 1.620)
    SCREW, (.375-16 x 1.620)
  • NS
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 3
    54-78945 J CLAMP, Harness Support
    J CLAMP, Harness Support
  • 4
    66284A2 BASE ASSEMBLY
    BASE ASSEMBLY
  • 5
    11-20739 NUT, (.750-16), Jam
    NUT, (.750-16), Jam
  • 6
    14-12657 TAB WASHER
    TAB WASHER
  • 7
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
