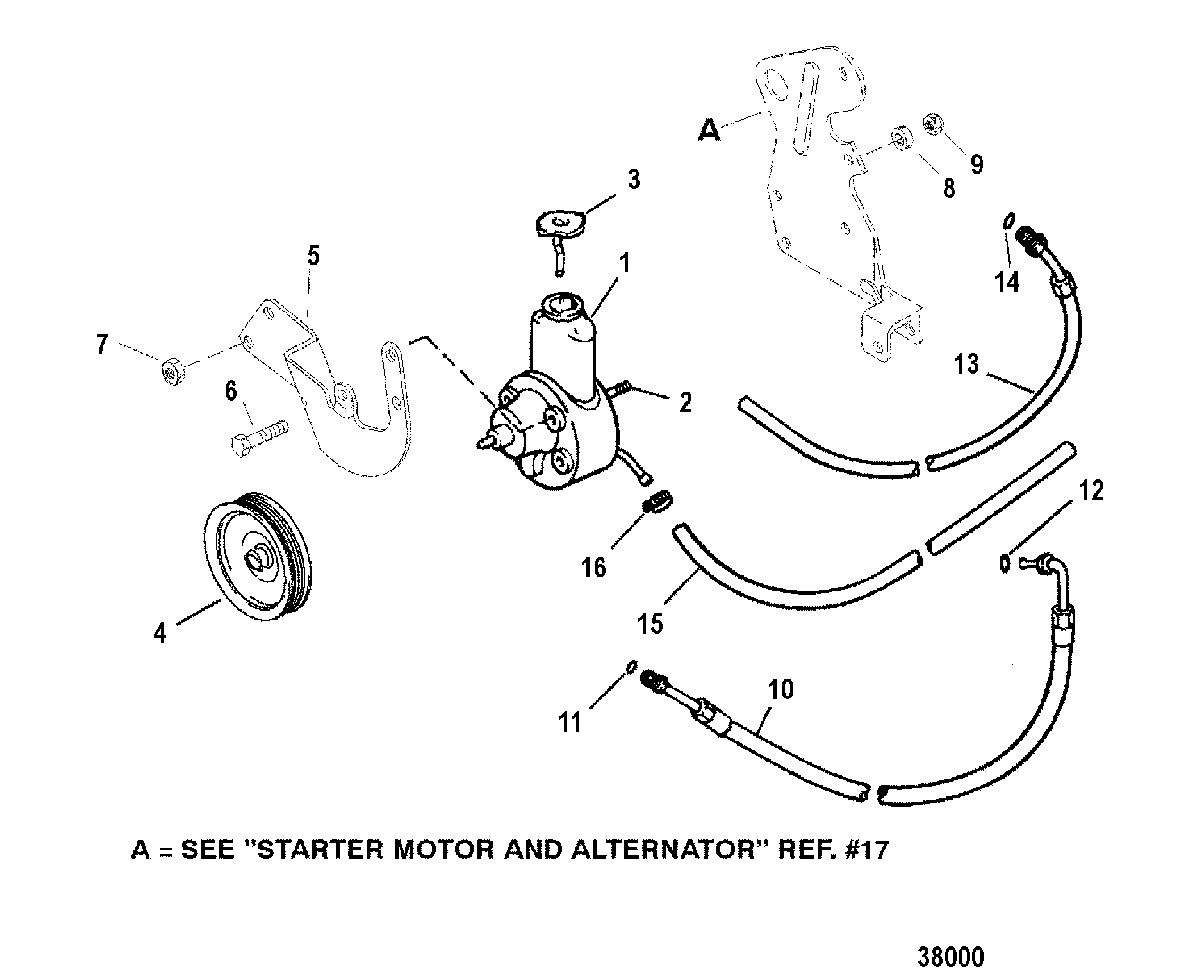

POWER STEERING COMPONENTS для Mercruiser - 4.3LX (GEN +) (2 BBL.) GM 262 V-6 1996-1997 0F803000 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    16792A39 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 2
    16-41877 STUD, (M10)
    STUD, (M10)
  • 3
    36-95805 CAP
    CAP
  • 4
    57-861758A1 BELT, Serpentine
    (ALPHA) 4-3/4 IN. DIA. PULLEY
    BELT, Serpentine
    (ALPHA) 4-3/4 IN. DIA. PULLEY
  • 4
    57-861759A1 BELT, Serpentine
    (BRAVO) 4-3/4 IN. DIA. PULLEY
    BELT, Serpentine
    (BRAVO) 4-3/4 IN. DIA. PULLEY
  • 4
    861578 PULLEY
    (5-3/4 IN. DIA. PULLEY)
    PULLEY
    (5-3/4 IN. DIA. PULLEY)
  • 5
    807751T01 BRACE
    BRACE
  • 6
    10-40001188 SCREW, (M10 x 20)
    SCREW, (M10 x 20)
  • 7
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 8
    23-905201 SPACER, (.750 x .250)
    SPACER, (.750 x .250)
  • 9
    11-90517 NUT, (M10)
    NUT, (M10)
  • 10
    32-80622216 HOSE
    (FITTINGS ON BOTH ENDS)
    HOSE
    (FITTINGS ON BOTH ENDS)
  • 11
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
  • 12
    25-806232 O-RING, (.239 x .064)
    O-RING, (.239 x .064)
  • 13
    32-80622142 HOSE ASSEMBLY, (84.00 Inches Bulk), Return
    (FITTING ON ONE END)
    HOSE ASSEMBLY, (84.00 Inches Bulk), Return
    (FITTING ON ONE END)
  • 14
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
  • 15
    32-8M0062341 HOSE, (53.00 Inches Bulk), Pump to Oil Cooler
    HOSE, (53.00 Inches Bulk), Pump to Oil Cooler
  • 16
    54-815504105 CLAMP, Worm Gear (11-18 mm)
    CLAMP, Worm Gear (11-18 mm)
