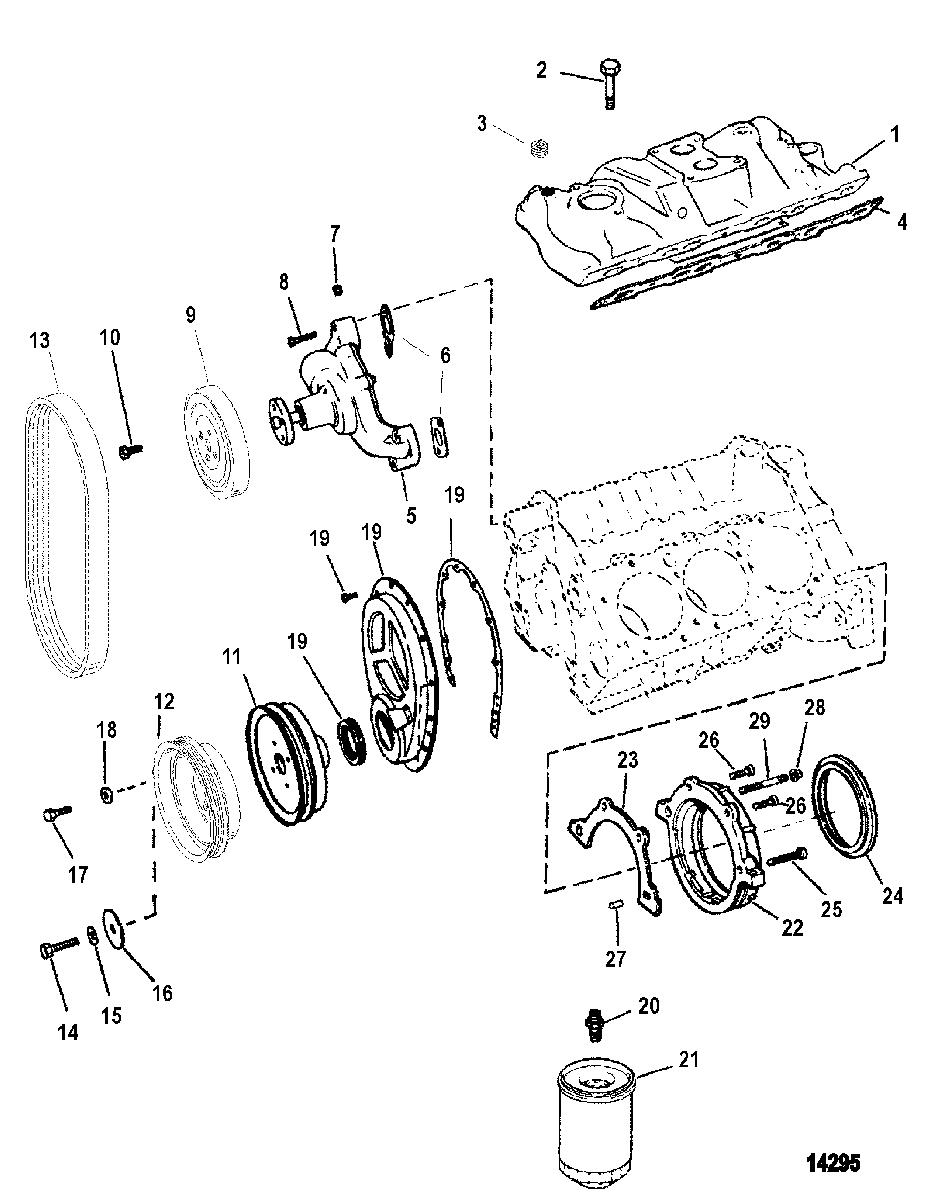

INTAKE MANIFOLD AND FRONT COVER для Mercruiser - 4.3LX (GEN +) (2 BBL.) GM 262 V-6 1996-1997 0F803000 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    824324T02 MANIFOLD, Intake
    (2 BARREL)
    MANIFOLD, Intake
    (2 BARREL)
  • 1
    824330T1 MANIFOLD, Intake
    (4 BARREL)
    MANIFOLD, Intake
    (4 BARREL)
  • 2
    10-835004 BOLT, (.312-18 x 1.75)
    BOLT, (.312-18 x 1.75)
  • 2
    10-802655 BOLT, (3/8-16 x 1.25)
    BOLT, (3/8-16 x 1.25)
  • 3
    22-75983 PLUG
    PLUG
  • 4
    27-824326002 GASKET SET
    GASKET SET
  • 5
    46-8M0113734 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 6
    27-34897 GASKET
    GASKET
  • 7
    22-48336 PLUG, Water Pump
    PLUG, Water Pump
  • 8
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 8
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 9
    807729T PULLEY
    PULLEY
  • 10
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 11
    809892T BALANCER, Harmonic
    BALANCER, Harmonic
  • 12
    807730T PULLEY
    PULLEY
  • 13
    57-861758A1 BELT, Serpentine
    (ALPHA) 4-3/4 IN. DIA. P/S PULLEY
    BELT, Serpentine
    (ALPHA) 4-3/4 IN. DIA. P/S PULLEY
  • 13
    57-861759A1 BELT, Serpentine
    (BRAVO) 4-3/4 IN. DIA. P/S PULLEY
    BELT, Serpentine
    (BRAVO) 4-3/4 IN. DIA. P/S PULLEY
  • 13
    57-861758Q BELT, Serpentine
    (ALPHA) 5-3/4 IN. DIA. P/S PULLEY
    BELT, Serpentine
    (ALPHA) 5-3/4 IN. DIA. P/S PULLEY
  • 13
    57-861759Q BELT, Serpentine
    (BRAVO) 5-3/4 IN. DIA. P/S PULLEY
    BELT, Serpentine
    (BRAVO) 5-3/4 IN. DIA. P/S PULLEY
  • 14
    10-8M2021674 SCREW, (.437-20 x 2.50)
    SCREW, (.437-20 x 2.50)
  • 15
    13-39131 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 16
    12-35332001 WASHER
    WASHER
  • 17
    10-34352 SCREW, (.375-24 x .875)
    SCREW, (.375-24 x .875)
  • 18
    12-34714 WASHER
    WASHER
  • 19
    809893T TIMING COVER ASSEMBLY
    (SCREWS, GROMMETS AND OIL SEAL ARE NOT SOLD SEPARATELY)
    TIMING COVER ASSEMBLY
    (SCREWS, GROMMETS AND OIL SEAL ARE NOT SOLD SEPARATELY)
  • 20
    11972 ADAPTOR
    W/O REMOTE OIL FILTER
    ADAPTOR
    W/O REMOTE OIL FILTER
  • 21
    35-883702Q FILTER, Oil
    W/O REMOTE OIL FILTER
    FILTER, Oil
    W/O REMOTE OIL FILTER
  • 22
    142391 RETAINER, Seal
    RETAINER, Seal
  • 23
    27-881715 GASKET
    GASKET
  • 24
    26-8M0077606 SEAL, Oil
    SEAL, Oil
  • 25
    10-8M0064241 BOLT, (.250-20 x 1.750)
    BOLT, (.250-20 x 1.750)
  • 26
    10-14242 BOLT, (.250-20 x .875)
    BOLT, (.250-20 x .875)
  • 27
    17-14263 PIN, Dowel
    PIN, Dowel
  • 28
    11-11996 NUT
    NUT
  • 29
    16-148271 STUD
    STUD
  • -
    27-824326A02 GASKET SET, Overhaul
    GASKET SET, Overhaul
