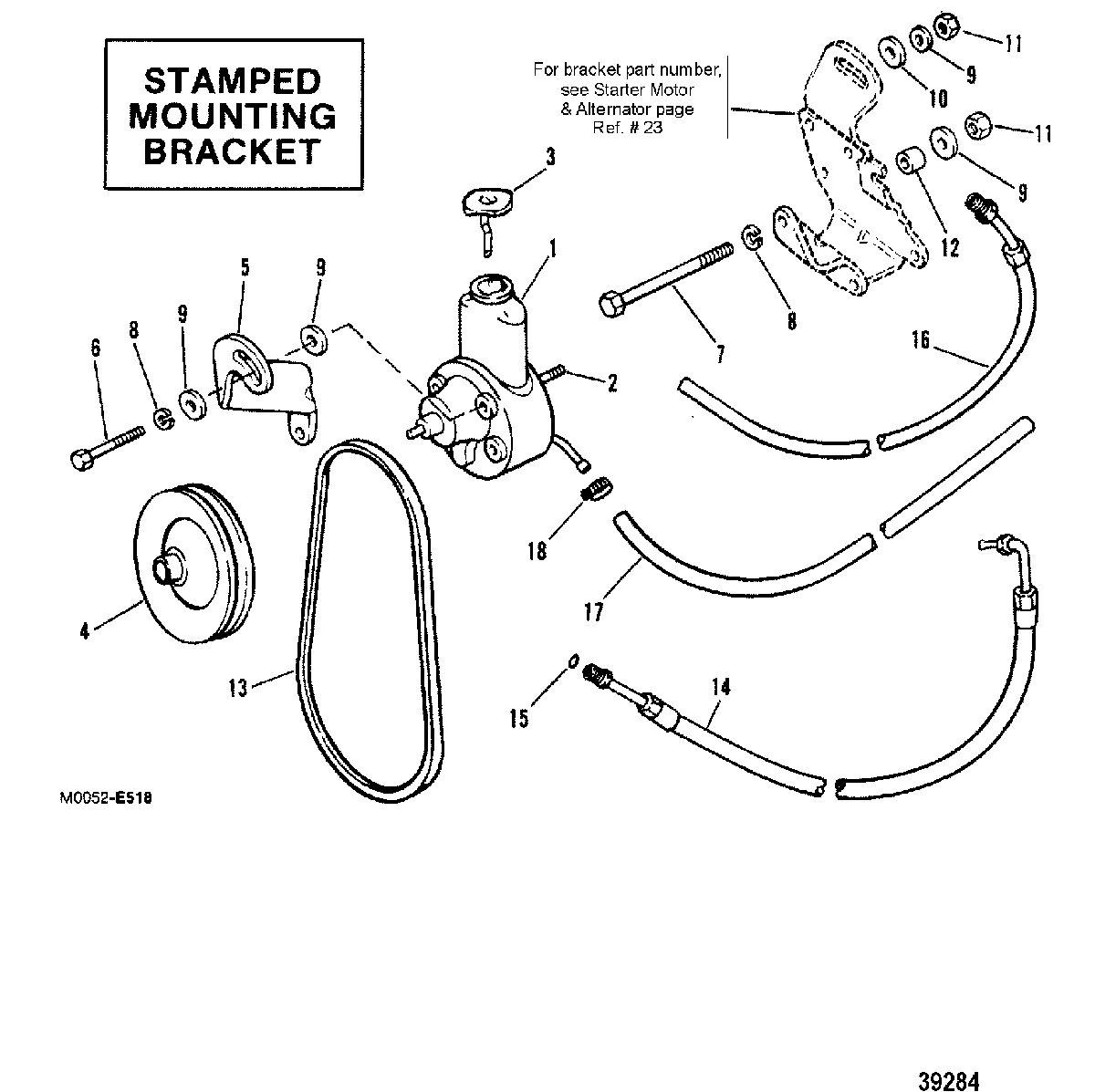

POWER STEERING COMPONENTS , STAMPED MOUNTING BRACKET для Mercruiser - 4.3LX (4 BBL.) GM 262 V-6 1988-1992 0B775130 THRU 0D714369

  • №
    Артикул
    Название
  • 1
    16792A39 PUMP ASSEMBLY, POWER STEERING
    PUMP ASSEMBLY, POWER STEERING
  • 2
    16-41877 STUD, (M10), POWER STEERING PUMP
    STUD, (M10), POWER STEERING PUMP
  • 3
    36-95805 CAP, POWER STEERING PUMP
    CAP, POWER STEERING PUMP
  • 4
    73873A1 PULLEY, POWER STEERING PUMP
    PULLEY, POWER STEERING PUMP
  • 5
    15082T BRACE, PUMP
    BRACE, PUMP
  • 6
    10-40001192 SCREW, (M10 x 25), PUMP BRACE
    SCREW, (M10 x 25), PUMP BRACE
  • 7
    10-40001188 SCREW, (M10 x 20), PUMP TO BRACKET
    SCREW, (M10 x 20), PUMP TO BRACKET
  • 8
    13-400248 LOCKWASHER, (M10)
    LOCKWASHER, (M10)
  • 9
    23-72057 SPACER, (1.00 Outside Diameter x .125 x Thick), PUMP SCREW
    SPACER, (1.00 Outside Diameter x .125 x Thick), PUMP SCREW
  • 10
    12-28105 WASHER, PUMP STUD
    WASHER, PUMP STUD
  • 11
    11-90517 NUT, (M10), MOUNTING STUD
    NUT, (M10), MOUNTING STUD
  • 12
    23-45353 SPACER, PUMP SCREW
    SPACER, PUMP SCREW
  • 13
    57-37619Q V BELT
    (USE WITH 5-1/2" DIA. WATER PUMP PULLEY)
    V BELT
    (USE WITH 5-1/2" DIA. WATER PUMP PULLEY)
  • 13
    57-816295Q V BELT
    (USE WITH 7" DIA. WATER PUMP PULLEY)
    V BELT
    (USE WITH 7" DIA. WATER PUMP PULLEY)
  • 14
    32-90494 HOSE, PRESSURE (FITTINGS ON BOTH ENDS)
    HOSE, PRESSURE (FITTINGS ON BOTH ENDS)
  • 15
    25-89879 O-RING, (.301 x .064), PRESSURE HOSES END
    O-RING, (.301 x .064), PRESSURE HOSES END
  • 16
    32-9884339 HOSE ASSEMBLY, (72.00 Inches Bulk), RETURN (FITTINGS ON ONE END)
    HOSE ASSEMBLY, (72.00 Inches Bulk), RETURN (FITTINGS ON ONE END)
  • 17
    32-8M0062341 HOSE, (53.00 Inches Bulk), PUMP TO OIL COOLER
    HOSE, (53.00 Inches Bulk), PUMP TO OIL COOLER
  • 18
    54-815504206 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
