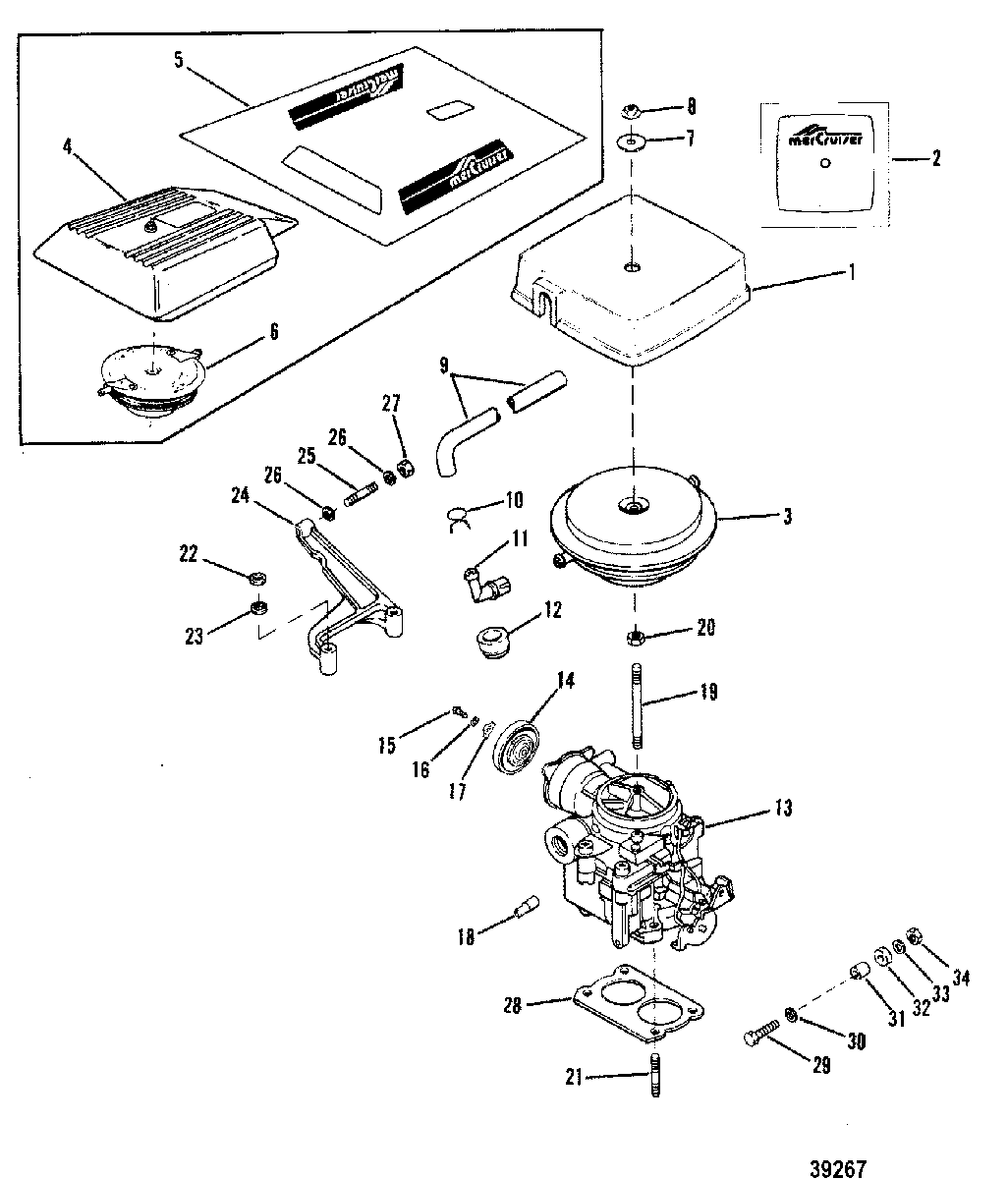

CARBURETOR AND THROTTLE LINKAGE(175 - 4.3L) для Mercruiser - 4.3LX (4 BBL.) GM 262 V-6 1988-1992 0B775130 THRU 0D714369
-
№АртикулНазвание
-
115414A7 COVER, CARBURETOR
DESIGN ICOVER, CARBURETOR
DESIGN I -
237-1372320 DECAL, CARBURETOR COVER
175 ALPHA ONE - DESIGN IDECAL, CARBURETOR COVER
175 ALPHA ONE - DESIGN I -
237-1372329 DECAL, CARBURETOR COVER
4.3L - DESIGN IDECAL, CARBURETOR COVER
4.3L - DESIGN I -
386271 FLAME ARRESTOR, CARBURETOR
DESIGN IFLAME ARRESTOR, CARBURETOR
DESIGN I -
418484A3 COVER, CARBURETOR
DESIGN IICOVER, CARBURETOR
DESIGN II -
537-812776A1 DECAL SET, COVER
DESIGN IIDECAL SET, COVER
DESIGN II -
6805016A1 FLAME ARRESTOR
DESIGN IIFLAME ARRESTOR
DESIGN II -
712-86400 WASHER, SEALINGWASHER, SEALING
-
811-826709109 NUT, (.250-28), SILENCER ADAPTERNUT, (.250-28), SILENCER ADAPTER
-
932-8M0062669 HOSE (11-1/4")HOSE (11-1/4")
-
932-8M0086022 HOSE, Breather (CORRUGATED)HOSE, Breather (CORRUGATED)
-
1054-53101 CLAMP, VENT HOSECLAMP, VENT HOSE
-
1197850T ELBOW, 90 Degree, Breather - VENT HOSEELBOW, 90 Degree, Breather - VENT HOSE
-
1147957 CONNECTOR, VENT HOSE (STRAIGHT)CONNECTOR, VENT HOSE (STRAIGHT)
-
1223-8M0071559 GROMMET, ROCKER COVERGROMMET, ROCKER COVER
-
133310-807764A1 CARBURETOR ASSEMBLY (MERCARB)CARBURETOR ASSEMBLY (MERCARB)
-
1470125A02 COVER, ChokeCOVER, Choke
-
1510-33047 SCREW, CHOKE COVERSCREW, CHOKE COVER
-
1613-26995 LOCKWASHER, (#8) Stainless Steel, COVER SCREWLOCKWASHER, (#8) Stainless Steel, COVER SCREW
-
1754-33036 RETAINER, COVER SCREWRETAINER, COVER SCREW
-
1822-54090 ELBOW, CARBURETORELBOW, CARBURETOR
-
1916-97012 STUD, FLAME ARRESTORSTUD, FLAME ARRESTOR
-
2011-8267139 NUT, JAM - FLAME ARRESTORNUT, JAM - FLAME ARRESTOR
-
2116-8M0113177 STUD, (.312 x 1.500), CARBURETORSTUD, (.312 x 1.500), CARBURETOR
-
2116-70237 STUD, (.312-18/.312-24 x 2.620), CARBURETORSTUD, (.312-18/.312-24 x 2.620), CARBURETOR
-
2211-862902 NUT, (.9375-24), CARBURETOR STUDNUT, (.9375-24), CARBURETOR STUD
-
2312-20084 WASHER, (.328 x .562 x .062), CARBURETOR STUDWASHER, (.328 x .562 x .062), CARBURETOR STUD
-
24805489T BRACKET, THROTTLE CABLEBRACKET, THROTTLE CABLE
-
2516-38525 STUD, THROTTLE CABLESTUD, THROTTLE CABLE
-
2612-24664 WASHER, (M4 x 20), THROTTLE CABLE STUDWASHER, (M4 x 20), THROTTLE CABLE STUD
-
2711-826709109 NUT, (.250-28), THROTTLE CABLE STUDNUT, (.250-28), THROTTLE CABLE STUD
-
2827-8079821 GASKET, CARBURETOR TO INTAKE MANIFOLDGASKET, CARBURETOR TO INTAKE MANIFOLD
-
2910-98509 SCREW, THROTTLE CABLE TO CARBURETORSCREW, THROTTLE CABLE TO CARBURETOR
-
3012-56681 WASHER, (.203 x .500 x .032), THROTTLE CABLE SCREWWASHER, (.203 x .500 x .032), THROTTLE CABLE SCREW
-
3123-57938 BUSHING, THROTTLE CABLE SCREWBUSHING, THROTTLE CABLE SCREW
-
3223-34948 SPACER, THROTTLE CABLE SCREWSPACER, THROTTLE CABLE SCREW
-
3312-847883 WASHER, THROTTLE CABLE SCREWWASHER, THROTTLE CABLE SCREW
-
3411-8267086 NUT, (#10-32), THROTTLE CABLE SCREWNUT, (#10-32), THROTTLE CABLE SCREW
-
-27-11977A92 GASKET SETGASKET SET
