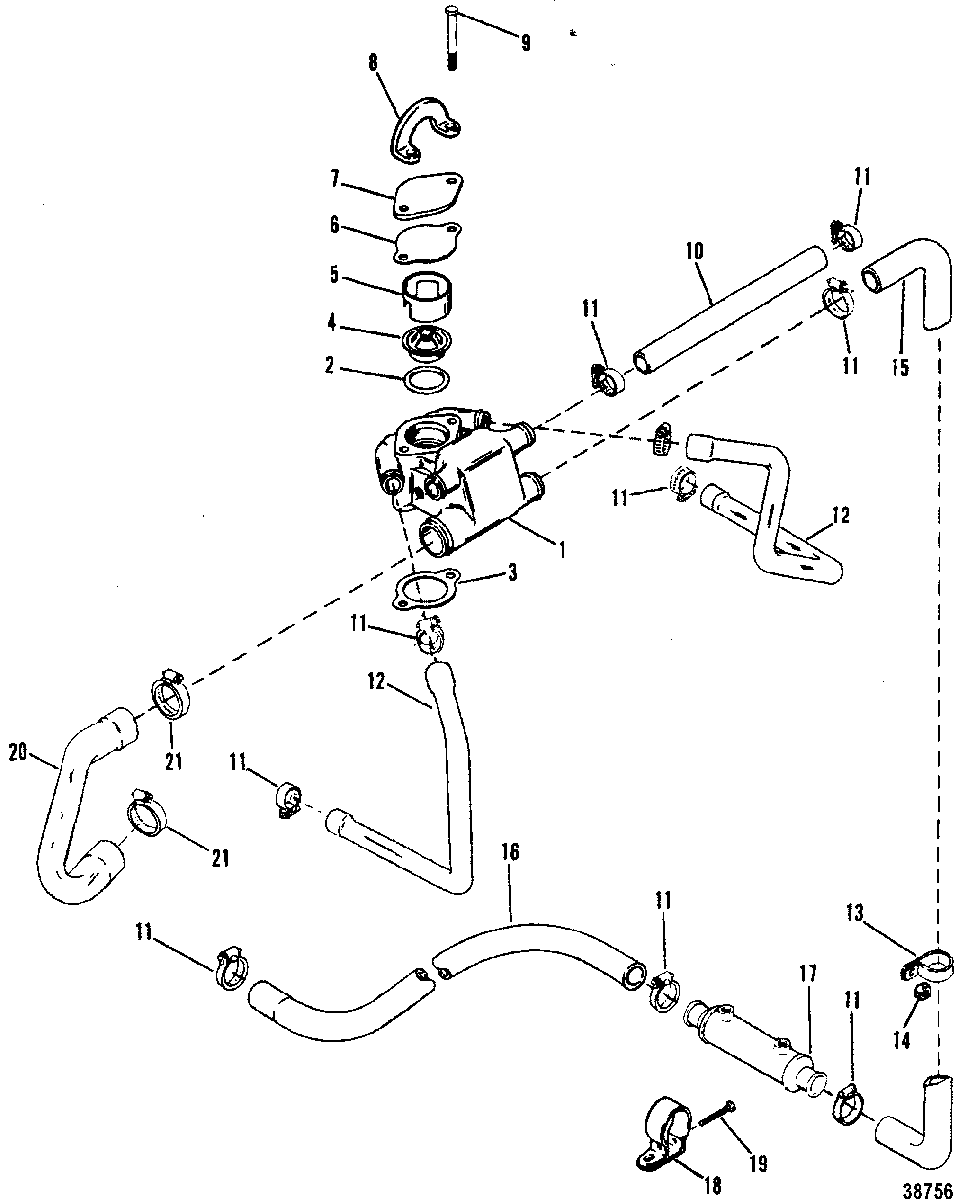

STANDARD COOLING SYSTEM(DESIGN I) для Mercruiser - 4.3L (GEN II) (2 BBL.) GM 262 V-6 1993-1995 0F000878 THRU 0F601126

  • №
    Артикул
    Название
  • 1
    16413A9 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 2
    25-30224 O-RING, (1.859 x .139)
    O-RING, (1.859 x .139)
  • 3
    27-530451 GASKET
    GASKET
  • 4
    8M0089715 THERMOSTAT (140 DEGREES)
    THERMOSTAT (140 DEGREES)
  • 4
    8M0109441 THERMOSTAT, 71A°C (160A°F), BODENSEE
    THERMOSTAT, 71A°C (160A°F), BODENSEE
  • 5
    23-806922 SLEEVE
    SLEEVE
  • 6
    27-331792 GASKET
    GASKET
  • 7
    17494A1 COVER KIT
    COVER KIT
  • 8
    12552 LIFTING EYE
    LIFTING EYE
  • 9
    10-60410 SCREW, (.375-16 x 4.250)
    SCREW, (.375-16 x 4.250)
  • 10
    32-8M0062614 HOSE, (48.00 Inches Bulk), HOUSING TO EXHAUST ELBOWS
    HOSE, (48.00 Inches Bulk), HOUSING TO EXHAUST ELBOWS
  • 10
    32-8M0062614 HOSE, (48.00 Inches Bulk), HOUSING TO STARBOARD ELBOW
    Use with elbow part 22- 36305 on 'EXHAUST MANIFOLD AND EXHAUST RISER' Page
    HOSE, (48.00 Inches Bulk), HOUSING TO STARBOARD ELBOW
    Use with elbow part 22- 36305 on 'EXHAUST MANIFOLD AND EXHAUST RISER' Page
  • 10
    32-817435 HOSE, HOUSING TO PORT ELBOW
    Use with elbow part 22- 36305 on 'EXHAUST MANIFOLD AND EXHAUST RISER' Page
    HOSE, HOUSING TO PORT ELBOW
    Use with elbow part 22- 36305 on 'EXHAUST MANIFOLD AND EXHAUST RISER' Page
  • 11
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 12
    32-18810 HOSE, HOUSING TO MANIFOLD
    HOSE, HOUSING TO MANIFOLD
  • 12
    32-160211 HOSE, HOUSING TO PORT MANIFOLD
    HOSE, HOUSING TO PORT MANIFOLD
  • 12
    32-871171 HOSE, HOUSING TO STARBOARD MANIFOLD
    HOSE, HOUSING TO STARBOARD MANIFOLD
  • 13
    54-47715 CLIP
    CLIP
  • 14
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 15
    32-16012 HOSE, THERMOSTAT HOUSING TO COOLER
    HOSE, THERMOSTAT HOUSING TO COOLER
  • 16
    32-41642A3 HOSE, COOLER TO DRIVE UNIT
    HOSE, COOLER TO DRIVE UNIT
  • 17
    99356A2 COOLER ASSEMBLY
    COOLER ASSEMBLY
  • 18
    65970T1 BRACKET
    BRACKET
  • 19
    10-41408 SCREW, (#10-32 x 1.50)
    SCREW, (#10-32 x 1.50)
  • 20
    32-861590A05 HOSE, HOUSING TO WATER PUMP
    HOSE, HOUSING TO WATER PUMP
  • 21
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
