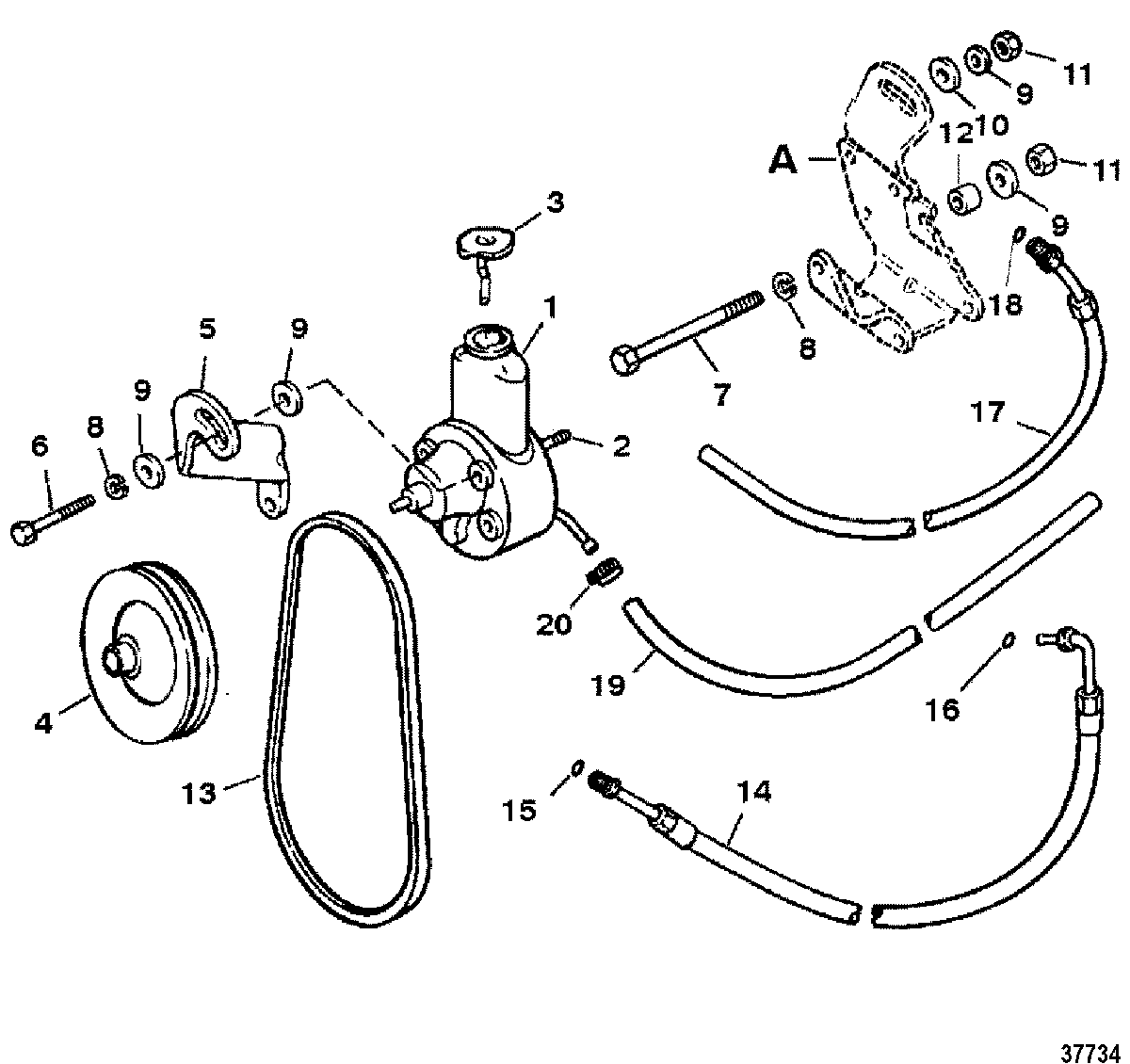

POWER STEERING COMPONENTS для Mercruiser - 4.3L (GEN II) (2 BBL.) GM 262 V-6 1993-1995 0F000878 THRU 0F601126

  • №
    Артикул
    Название
  • 1
    16792A39 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 2
    16-41877 STUD, (M10)
    STUD, (M10)
  • 3
    36-95805 CAP
    CAP
  • 4
    73873A1 PULLEY
    PULLEY
  • 5
    15082T BRACE
    BRACE
  • 6
    10-40001192 SCREW, (M10 x 25)
    SCREW, (M10 x 25)
  • 7
    10-40001188 SCREW, (M10 x 20)
    SCREW, (M10 x 20)
  • 8
    13-400248 LOCKWASHER, (M10)
    LOCKWASHER, (M10)
  • 9
    23-72057 SPACER, (1.00 Outside Diameter x .125 x Thick)
    SPACER, (1.00 Outside Diameter x .125 x Thick)
  • 10
    12-28105 WASHER
    WASHER
  • 11
    11-90517 NUT, (M10)
    NUT, (M10)
  • 12
    23-45353 SPACER
    SPACER
  • 13
    57-816295Q V BELT
    V BELT
  • 14
    32-90494 HOSE (FITTINGS ON BOTH ENDS)
    SN# 0A000000 THRU 0F114777
    HOSE (FITTINGS ON BOTH ENDS)
    SN# 0A000000 THRU 0F114777
  • 15
    25-89879 O-RING, (.301 x .064)
    SN# 0A000000 THRU 0F114777
    O-RING, (.301 x .064)
    SN# 0A000000 THRU 0F114777
  • 17
    32-9884339 HOSE ASSEMBLY, (72.00 Inches Bulk) (FITTING ON ONE END)
    SN# 0A000000 THRU 0F114777
    HOSE ASSEMBLY, (72.00 Inches Bulk) (FITTING ON ONE END)
    SN# 0A000000 THRU 0F114777
  • 14
    32-80622216 HOSE (FITTINGS ON BOTH ENDS)
    SN# 0F114778 THRU 0Z999999
    HOSE (FITTINGS ON BOTH ENDS)
    SN# 0F114778 THRU 0Z999999
  • 15
    25-89879 O-RING, (.301 x .064)
    SN# 0F114778 THRU 0Z999999
    O-RING, (.301 x .064)
    SN# 0F114778 THRU 0Z999999
  • 16
    25-806232 O-RING, (.239 x .064)
    SN# 0F114778 THRU 0Z999999
    O-RING, (.239 x .064)
    SN# 0F114778 THRU 0Z999999
  • 17
    32-80622142 HOSE ASSEMBLY, (84.00 Inches Bulk), Return (FITTING ON ONE END)
    SN# 0F114778 THRU 0Z999999
    HOSE ASSEMBLY, (84.00 Inches Bulk), Return (FITTING ON ONE END)
    SN# 0F114778 THRU 0Z999999
  • 18
    25-89879 O-RING, (.301 x .064)
    SN# 0F114778 THRU 0Z999999
    O-RING, (.301 x .064)
    SN# 0F114778 THRU 0Z999999
  • 19
    32-8M0062341 HOSE, (53.00 Inches Bulk), Pump to Oil Cooler
    HOSE, (53.00 Inches Bulk), Pump to Oil Cooler
  • 20
    54-815504206 CLAMP, Worm Gear
    CLAMP, Worm Gear
