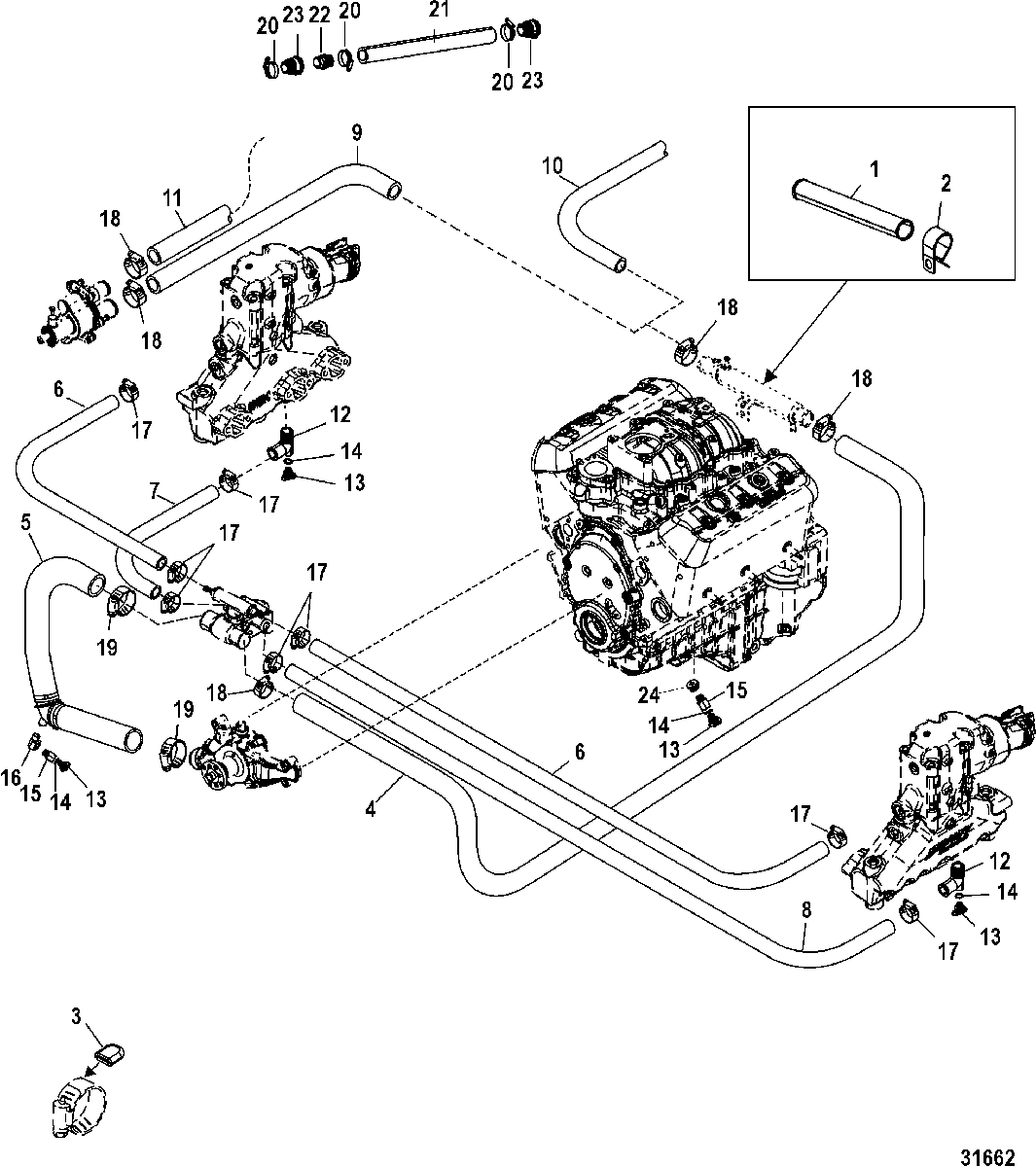

Standard Cooling System для Mercruiser - 4.3L CARB ALPHA/BRAVO 1A063240 & Up

  • №
    Артикул
    Название
  • 1
    860315A1 TUBE, Hose Extender
    (Compact Hydralic Steering) (Cut to 10.50 Inch Length)
    TUBE, Hose Extender
    (Compact Hydralic Steering) (Cut to 10.50 Inch Length)
  • 2
    54-806616 CLAMP, Water Tube
    CLAMP, Water Tube
  • 3
    19-8M0074364 COVER, Hose Clamp End
    COVER, Hose Clamp End
  • 4
    32-865092 HOSE, Power Steering Cooler to Thermostat Housing
    HOSE, Power Steering Cooler to Thermostat Housing
  • 5
    32-861590A05 HOSE ASSEMBLY, Circulating Pump to Thermostat Housing
    HOSE ASSEMBLY, Circulating Pump to Thermostat Housing
  • 6
    32-864977 HOSE, Thermostat Housing to Elbow
    HOSE, Thermostat Housing to Elbow
  • 7
    32-862124 HOSE, Thermostat Housing to Starboard Manifold
    HOSE, Thermostat Housing to Starboard Manifold
  • 8
    32-862139 HOSE, Thermostat Housing to Port Exhaust Manifold
    HOSE, Thermostat Housing to Port Exhaust Manifold
  • 9
    32-860205 HOSE, Sea Pump to Power Steering Cooler
    (Bravo) SN# 1A299999 & Below
    HOSE, Sea Pump to Power Steering Cooler
    (Bravo) SN# 1A299999 & Below
  • 9
    32-8636111 HOSE, Sea Pump to Power Steering Cooler
    (Bravo) SN# 1A300000 & Up
    HOSE, Sea Pump to Power Steering Cooler
    (Bravo) SN# 1A300000 & Up
  • 10
    32-807661 HOSE, Transom to Power Steering Cooler
    (Alpha)
    HOSE, Transom to Power Steering Cooler
    (Alpha)
  • 11
    32-8M0062666 HOSE, (96.00 Inches Bulk), Sea Water Pump to Drive
    (Bravo)
    HOSE, (96.00 Inches Bulk), Sea Water Pump to Drive
    (Bravo)
  • 12
    22-862210A01 ELBOW KIT, Drain
    ELBOW KIT, Drain
  • 13
    22-8M0119211 PLUG ASSEMBLY, (.500-13) Blue, Drain Fitting
    PLUG ASSEMBLY, (.500-13) Blue, Drain Fitting
  • 14
    25-26802 SEAL
    SEAL
  • 15
    22-860088 BUSHING
    BUSHING
  • 16
    22-46982 FITTING, (90 Degree)
    FITTING, (90 Degree)
  • 17
    54-815504216 CLAMP, Worm Gear (1.56 Diameter), Hose
    CLAMP, Worm Gear (1.56 Diameter), Hose
  • 18
    54-815504222 CLAMP, Worm Gear (1.98 DIameter), Hose
    CLAMP, Worm Gear (1.98 DIameter), Hose
  • 19
    54-815504232 CLAMP, Worm Gear (2.50 Diameter), Hose
    CLAMP, Worm Gear (2.50 Diameter), Hose
  • 20
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 21
    32-8M0062653 HOSE, (4.00 Inches)
    HOSE, (4.00 Inches)
  • 22
    22-865362 QUICK CONNECT
    QUICK CONNECT
  • 23
    22-865324 QUICK CONNECT
    QUICK CONNECT
  • 24
    22-8M2005622 FITTING, Reducer (M28 x .250)
    FITTING, Reducer (M28 x .250)
