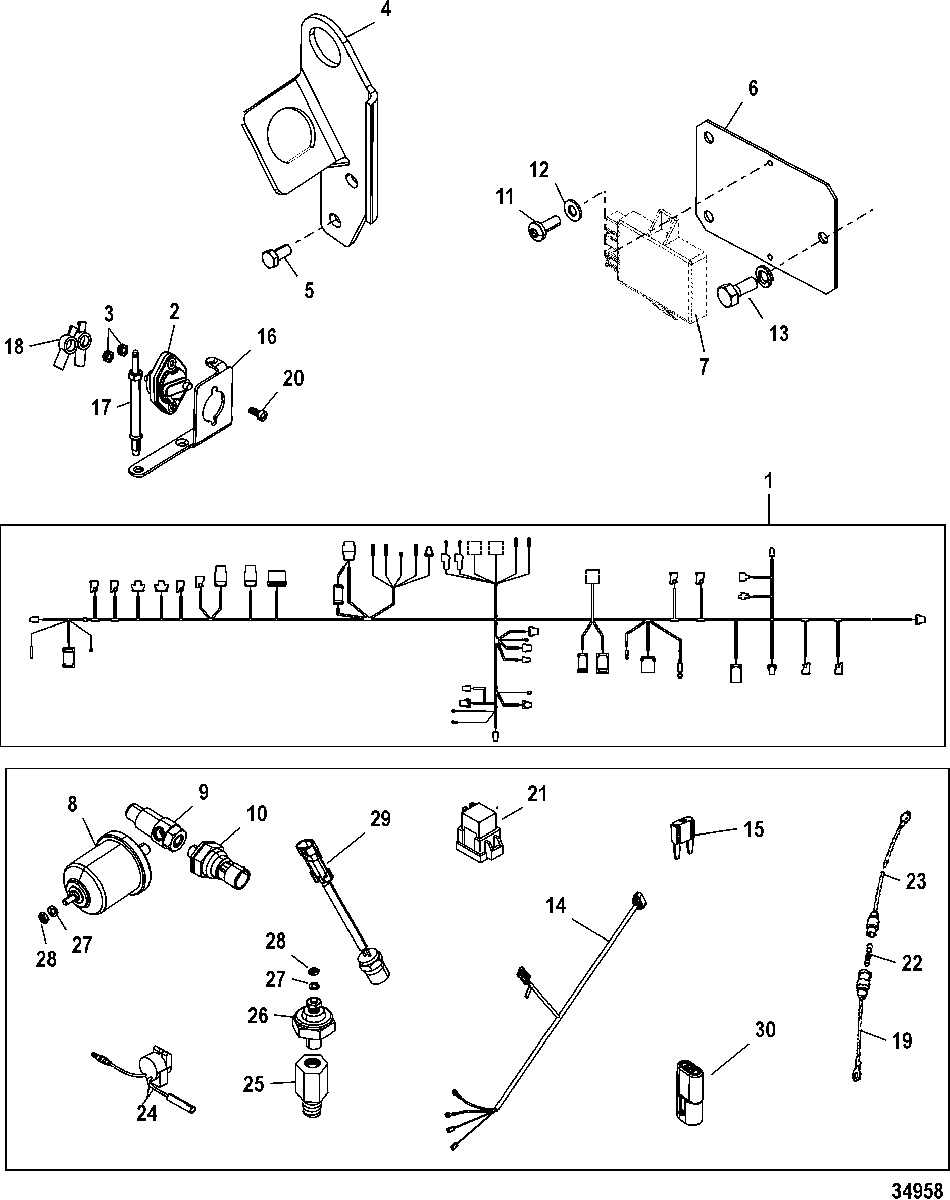

Electrical Components для Mercruiser - 4.3L CARB ALPHA/BRAVO 1A063240 & Up

  • №
    Артикул
    Название
  • 1
    84-862163T05 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 2
    88-11178A01 BREAKER, Circuit - 50 Ampere, Flag Reset
    SN# 2A1723654 & Below
    BREAKER, Circuit - 50 Ampere, Flag Reset
    SN# 2A1723654 & Below
  • 2
    88-11178A01 BREAKER, Circuit - 50 Ampere, Button Reset
    SN# 2A172365 & Up
    BREAKER, Circuit - 50 Ampere, Button Reset
    SN# 2A172365 & Up
  • 3
    11-826709106 NUT, (#10-32) Stainless Steel
    SN# 2A1723654 & Below
    NUT, (#10-32) Stainless Steel
    SN# 2A1723654 & Below
  • 3
    11-68219 NUT, (#10-32) Stainless Steel
    SN# 2A172365 & Up
    NUT, (#10-32) Stainless Steel
    SN# 2A172365 & Up
  • 4
    899719T02 BRACKET, Harness Mounting, Lifting Eye
    BRACKET, Harness Mounting, Lifting Eye
  • 5
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 6
    861516 BRACKET
    BRACKET
  • 7
    861251T1 ICM MODULE, Ignition Control Module
    (Alpha)
    ICM MODULE, Ignition Control Module
    (Alpha)
  • 7
    861252T1 ICM MODULE, Ignition Control Module
    (Bravo)
    ICM MODULE, Ignition Control Module
    (Bravo)
  • 8
    8M0068784 SENDER ASSEMBLY, Oil
    SENDER ASSEMBLY, Oil
  • 8
    37293T SENDER ASSEMBLY, Oil
    (Dual Station)
    SENDER ASSEMBLY, Oil
    (Dual Station)
  • 9
    22-864669 FITTING
    FITTING
  • 10
    87-8M0070108 SWITCH
    SWITCH
  • 11
    10-861520 SCREW, (#10-32 x .500)
    SCREW, (#10-32 x .500)
  • 12
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 13
    10-657461 SCREW AND LOCKWASHER, (.250-20 x .625)
    SCREW AND LOCKWASHER, (.250-20 x .625)
  • 14
    84-866727T01 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 15
    88-832969T15 FUSE, Mini - Blue - 15 Ampere
    FUSE, Mini - Blue - 15 Ampere
  • 15
    88-832969T20 FUSE, Mini - Yellow - 20 Ampere
    FUSE, Mini - Yellow - 20 Ampere
  • 16
    899719T01 BRACKET
    BRACKET
  • 17
    16-805459 STUD, Mercathode Mounting
    STUD, Mercathode Mounting
  • 18
    85-89919 BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 19
    84-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
    (Bravo)
    CABLE ASSEMBLY, (5.00 Inches) Red
    (Bravo)
  • 20
    10-830861 SCREW, (#8-32 x .625)
    SN# 2A1723654 & Below
    SCREW, (#8-32 x .625)
    SN# 2A1723654 & Below
  • 20
    10-45862 SCREW, (#10-32 x .875)
    SN# 2A172365 & Up
    SCREW, (#10-32 x .875)
    SN# 2A172365 & Up
  • 21
    882751 RELAY
    RELAY
  • 22
    88-79091 FUSE, 20 Ampere
    (Bravo)
    FUSE, 20 Ampere
    (Bravo)
  • 23
    84-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
    (Bravo)
    CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
    (Bravo)
  • 24
    816492A6 ALARM KIT
    ALARM KIT
  • 25
    22-32974 FITTING, (.125-27) Adaptor
    FITTING, (.125-27) Adaptor
  • 26
    87-805605A1 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 27
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 28
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 29
    87-866089 THERMAL SWITCH, (Normally Open 130-110 degrees), Turn Key Start
    THERMAL SWITCH, (Normally Open 130-110 degrees), Turn Key Start
  • 30
    83-865913A01 DIODE ASSEMBLY
    DIODE ASSEMBLY
