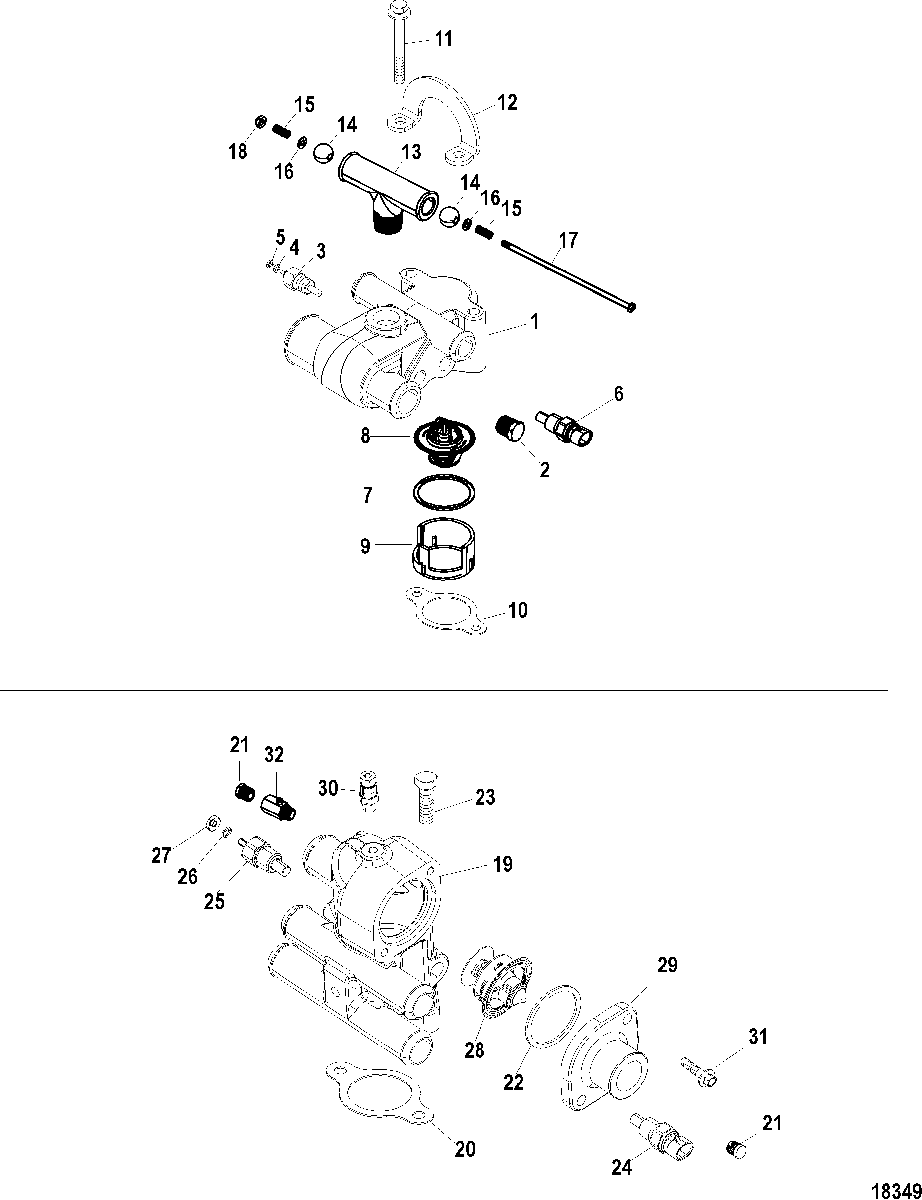

Thermostat and Housing для Mercruiser - 4.3L CARB ALPHA/BRAVO 0W650000 THRU 1A063239

  • №
    Артикул
    Название
  • 1
    864592T HOUSING ASSEMBLY, Thermostat
    (Standard Cooling)
    HOUSING ASSEMBLY, Thermostat
    (Standard Cooling)
  • 2
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 3
    806490T SENDER
    SENDER
  • 3
    49734 SENDER, Dual Station
    SENDER, Dual Station
  • 4
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 5
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 6
    805218T SENSOR
    SENSOR
  • 7
    27-806871 GASKET, Thermostat Housing
    GASKET, Thermostat Housing
  • 8
    8M0109441 THERMOSTAT, 71DegreeC (160 Degree F)
    THERMOSTAT, 71DegreeC (160 Degree F)
  • 9
    23-806922 SLEEVE, Thermostat
    SLEEVE, Thermostat
  • 10
    27-530451 GASKET, Lower Thermostat Housing
    GASKET, Lower Thermostat Housing
  • 11
    10-8M0113179 SCREW, (.375-16 x 3.00)
    SCREW, (.375-16 x 3.00)
  • 12
    12552 LIFTING EYE
    LIFTING EYE
  • 13
    22-98477A2 VALVE ASSEMBLY, Tee
    VALVE ASSEMBLY, Tee
  • 14
    30-98475 BALL, Nylon
    BALL, Nylon
  • 15
    24-75533 SPRING
    SPRING
  • 16
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 17
    10-98476 SCREW, (#10-32 x 6.00)
    SCREW, (#10-32 x 6.00)
  • 18
    11-826709106 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 19
    864398T1 HOUSING ASSEMBLY, Thermostat, Thermostat
    (Closed Cooling)
    HOUSING ASSEMBLY, Thermostat, Thermostat
    (Closed Cooling)
  • 20
    27-530451 GASKET, Thermostat Housing
    GASKET, Thermostat Housing
  • 21
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 22
    25-8071341 SEAL, Thermostat
    SEAL, Thermostat
  • 23
    10-68101 SCREW, (.375-16 x 1.375)
    SCREW, (.375-16 x 1.375)
  • 24
    805218T SENSOR
    SENSOR
  • 25
    806490T SENDER, Coolant Temperature
    SENDER, Coolant Temperature
  • 25
    49734 SENDER
    (Dual Station)
    SENDER
    (Dual Station)
  • 26
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 27
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 28
    864493 THERMOSTAT, 77A°C (170A°F)
    THERMOSTAT, 77A°C (170A°F)
  • 29
    807075A1 COVER, Thermostat
    COVER, Thermostat
  • 30
    22-818390 DRAIN COCK
    DRAIN COCK
  • 31
    10-29198 SCREW AND LOCKWASHER, (.312-18 x .875)
    SCREW AND LOCKWASHER, (.312-18 x .875)
  • 32
    20-865525 VALVE
    VALVE
