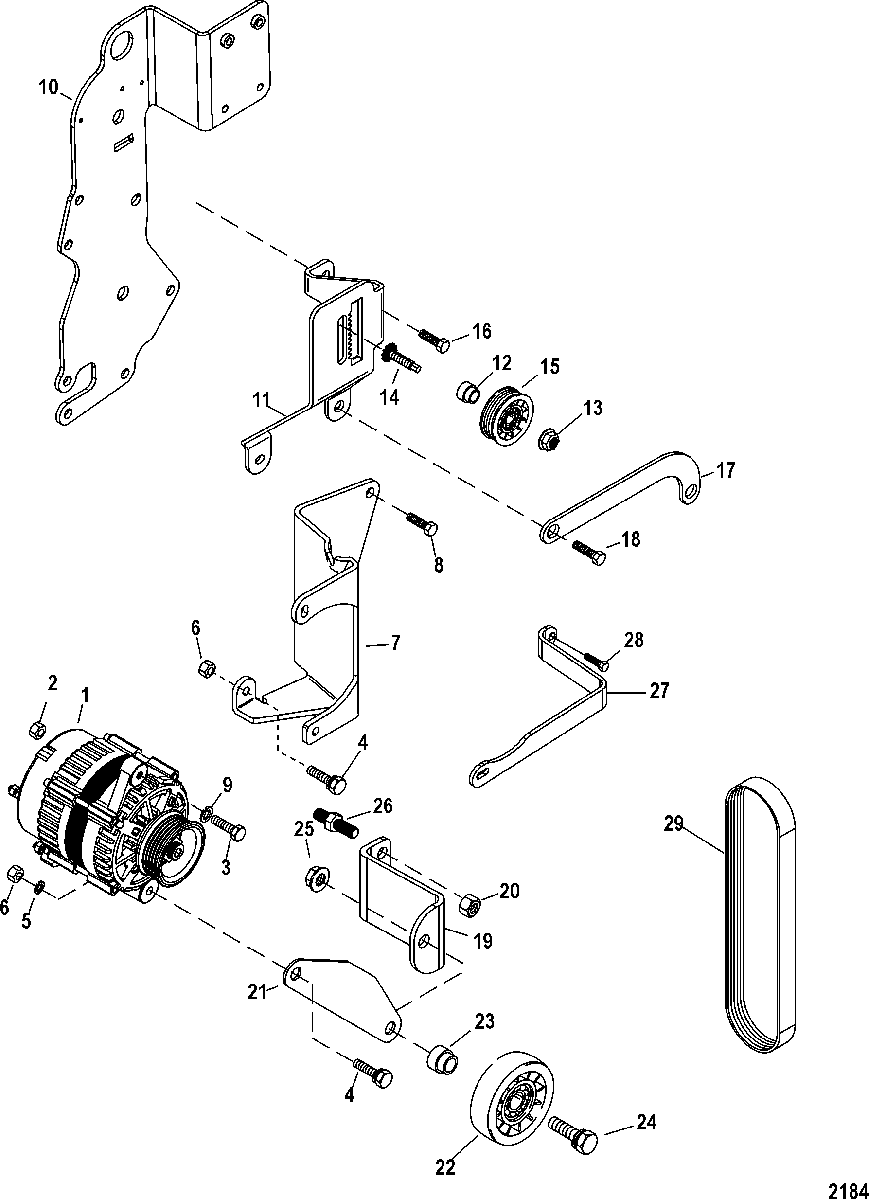

Alternator and Brackets для Mercruiser - 4.3L CARB ALPHA/BRAVO 0W650000 THRU 1A063239

  • №
    Артикул
    Название
  • 1
    863077T ALTERNATOR ASSEMBLY, Black, 65 Ampere With 50mm Pulley
    (Non Serviceable)
    ALTERNATOR ASSEMBLY, Black, 65 Ampere With 50mm Pulley
    (Non Serviceable)
  • 2
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 3
    10-40001134 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 4
    10-828213 SCREW, (.312-18 x 1.500) Hex Flange
    SCREW, (.312-18 x 1.500) Hex Flange
  • 5
    12-57792 WASHER
    WASHER
  • 6
    11-26484 NUT, (.312-18)
    NUT, (.312-18)
  • 7
    863211T01 BRACKET, Alternator Mounting
    BRACKET, Alternator Mounting
  • 8
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 9
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 10
    865188T01 BRACKET
    BRACKET
  • 11
    862083T BRACKET, Idler Adjusting
    BRACKET, Idler Adjusting
  • 12
    865193 BUSHING
    BUSHING
  • 13
    11-859135 NUT, (.437-20) Brass/Nickel Plated
    NUT, (.437-20) Brass/Nickel Plated
  • 14
    43-8M0113182 PINION STUD, (.437-20) Stainless Steel
    PINION STUD, (.437-20) Stainless Steel
  • 15
    864625T PULLEY
    (4.25 Inch Diameter)(With Power Steering)
    PULLEY
    (4.25 Inch Diameter)(With Power Steering)
  • 15
    807757T PULLEY ASSEMBLY, Idler - Black
    (3 Inch Diatmeter)(Compact Hydraulic Steering)
    PULLEY ASSEMBLY, Idler - Black
    (3 Inch Diatmeter)(Compact Hydraulic Steering)
  • 16
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 17
    862082T BRACE, Power Steering
    BRACE, Power Steering
  • 18
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 19
    862084T BRACKET, Idler, Alternator Brace
    (Bravo Standard Cooling)
    BRACKET, Idler, Alternator Brace
    (Bravo Standard Cooling)
  • 19
    864456T BRACKET, Alternator Brace
    (Alpha/Bravo Closed Cooling)
    BRACKET, Alternator Brace
    (Alpha/Bravo Closed Cooling)
  • 20
    11-32219 NUT, (.375-16)
    (Bravo Standard Cooling)
    NUT, (.375-16)
    (Bravo Standard Cooling)
  • 20
    11-82671112 NUT, (.375-16)
    (Alpha/Bravo Closed Cooling)
    NUT, (.375-16)
    (Alpha/Bravo Closed Cooling)
  • 21
    862085T BRACE, Idler Bracket
    (Bravo) (Alpha, Closed Cooling)
    BRACE, Idler Bracket
    (Bravo) (Alpha, Closed Cooling)
  • 22
    8M6500024 PULLEY
    (Bravo) (Alpha, Closed Cooling)
    PULLEY
    (Bravo) (Alpha, Closed Cooling)
  • 23
    865193 BUSHING
    (Bravo) (Alpha, Closed Cooling)
    BUSHING
    (Bravo) (Alpha, Closed Cooling)
  • 24
    10-56393 SCREW, (.437-20 x 1.75)
    (Bravo) (Alpha, Closed Cooling)
    SCREW, (.437-20 x 1.75)
    (Bravo) (Alpha, Closed Cooling)
  • 25
    11-859135 NUT, (.437-20) Brass/Nickel Plated
    (Bravo) (Alpha, Closed Cooling)
    NUT, (.437-20) Brass/Nickel Plated
    (Bravo) (Alpha, Closed Cooling)
  • 26
    16-860102 STUD, (.375-16 x 1.730)
    (Bravo Standard Cooling)
    STUD, (.375-16 x 1.730)
    (Bravo Standard Cooling)
  • 26
    16-863853 STUD
    (Alpha/Bravo Closed Cooling)
    STUD
    (Alpha/Bravo Closed Cooling)
  • 26
    10-32132 SCREW, (.375-16 x 1.750)
    (Alpha/Bravo Closed Cooling)
    SCREW, (.375-16 x 1.750)
    (Alpha/Bravo Closed Cooling)
  • 27
    862778 BRACKET, Alternator Brace
    (Alpha, Standard Cooling)
    BRACKET, Alternator Brace
    (Alpha, Standard Cooling)
  • 28
    10-34353 SCREW, (.375-16 x 1.00)
    (Alpha, Standard Cooling)
    SCREW, (.375-16 x 1.00)
    (Alpha, Standard Cooling)
  • 29
    57-865615Q04 BELT
    (Alpha)(Power Steering)
    BELT
    (Alpha)(Power Steering)
  • 29
    57-865615Q09 BELT
    (Alpha)(Compact Hydraulic Steering)
    BELT
    (Alpha)(Compact Hydraulic Steering)
  • 29
    57-865615Q03 BELT
    (Bravo)(Power Steering)
    BELT
    (Bravo)(Power Steering)
  • 29
    57-865615Q08 BELT
    (Bravo)(Compact Hydraulic Steering)
    BELT
    (Bravo)(Compact Hydraulic Steering)
