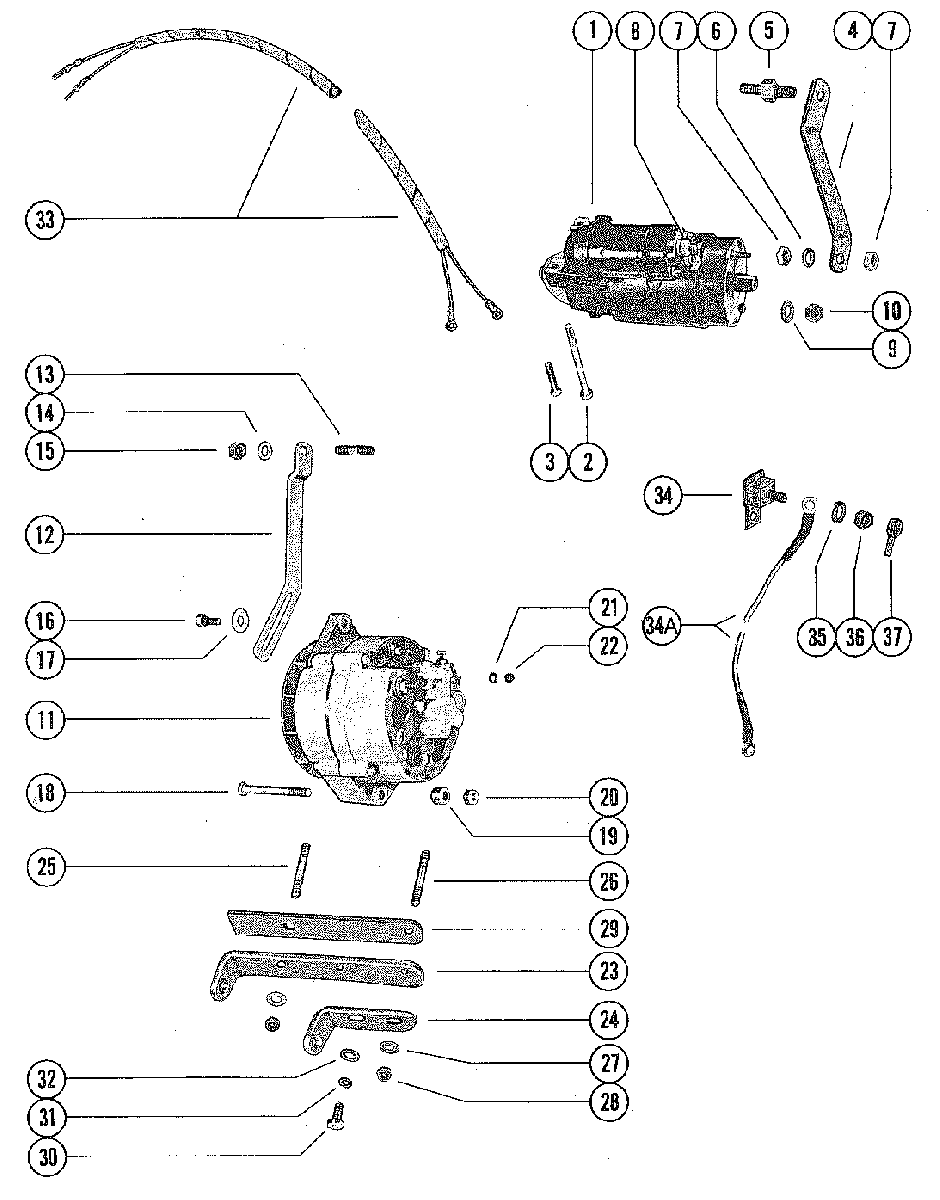

STARTER MOTOR AND ALTERNATOR для Mercruiser - 165 GM 250 I/L6 1979-1981 5178959 AND UP

  • №
    Артикул
    Название
  • 1
    50-8M0090697 STARTER MOTOR ASSEMBLY(DELCO REMY #1109489)
    STARTER MOTOR ASSEMBLY(DELCO REMY #1109489)
  • 2
    10-94435001 BOLT, STARTER MOUNTING (421/32")
    BOLT, STARTER MOUNTING (421/32")
  • 3
    10-8053433 BOLT, STARTER MOTOR MOUNTING (1 15/16')
    BOLT, STARTER MOTOR MOUNTING (1 15/16')
  • 4
    88292 BRACE, STARTER MOTOR
    BRACE, STARTER MOTOR
  • 5
    16-88294 STUD, STARTER MOTOR BRACE TO PUSHROD COVER
    STUD, STARTER MOTOR BRACE TO PUSHROD COVER
  • 6
    12-29245 WASHER, STARTER MOTOR THRU BOLT NUT
    WASHER, STARTER MOTOR THRU BOLT NUT
  • 7
    11-29031 NUT, STARRTER MOTOR THRU BOLT (1/4X20)
    NUT, STARRTER MOTOR THRU BOLT (1/4X20)
  • 7
    11-88293 NUT, STARTER MOTOR BRACE ATTACHING
    NUT, STARTER MOTOR BRACE ATTACHING
  • 8
    11-32219 NUT, SOLENOID SWITCH TERMINAL (3/-16)
    NUT, SOLENOID SWITCH TERMINAL (3/-16)
  • 9
    13-26995 LOCKWASHER, STARTER MOTOR TERMINAL (#8)
    LOCKWASHER, STARTER MOTOR TERMINAL (#8)
  • 10
    11-26419 NUT, STARTER MOTOR TERMINAL (#8-32)
    NUT, STARTER MOTOR TERMINAL (#8-32)
  • 9
    13-26996 LOCKWASHER, STARTER MOTOR TERMINAL (#10)
    LOCKWASHER, STARTER MOTOR TERMINAL (#10)
  • 10
    11-68219 NUT, STARTER MOTOR TERMINAL (#10-32)
    NUT, STARTER MOTOR TERMINAL (#10-32)
  • 10
    11-32219 NUT, STARTER MOROT TERMINAL (3/8-16)
    NUT, STARTER MOROT TERMINAL (3/8-16)
  • 11
    78403A2 ALTERNATOR (MORTOROLA #8MR203F)
    ALTERNATOR (MORTOROLA #8MR203F)
  • 12
    56224 BRACE, ALTERNATOR TO CYLINDER BLOCK (FRONT)
    BRACE, ALTERNATOR TO CYLINDER BLOCK (FRONT)
  • 13
    16-54177 STUD, ALTERNATOR BRAVE TO EXHAUST MANIFOLD (1 3/8')
    STUD, ALTERNATOR BRAVE TO EXHAUST MANIFOLD (1 3/8')
  • 14
    12-20553 WASHER, ALTERNATOR BRACE STUD
    WASHER, ALTERNATOR BRACE STUD
  • 15
    11-23161 NUT, ALTERNATOR BRACE STUD
    NUT, ALTERNATOR BRACE STUD
  • 16
    10-29198 SCREW, ALTERNATOR (7/8")
    SCREW, ALTERNATOR (7/8")
  • 17
    12-26168 WASHER, ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR BRACE SCREW
  • 18
    10-48308 SCREW, ALTERNATOR TO BRACKET (3 3/4")
    SCREW, ALTERNATOR TO BRACKET (3 3/4")
  • 19
    23-45353 SPACER , ALTERNATOR SCREW
    SPACER , ALTERNATOR SCREW
  • 20
    11-23161 NUT, ALTERNATOR SCREW
    NUT, ALTERNATOR SCREW
  • 21
    13-26991 LOCKWASHER, ALTERNATOR TERMINAL (12#)
    LOCKWASHER, ALTERNATOR TERMINAL (12#)
  • 22
    11-68531 NUT, ALTERNATOR TERMINAL (#12-24)
    NUT, ALTERNATOR TERMINAL (#12-24)
  • 23
    52817 BRACKET, ALTERNATOR MOUNTING (SMALL)
    BRACKET, ALTERNATOR MOUNTING (SMALL)
  • 24
    52818 BRACKET, ALTERANTOR MOUNTING (LARGE)
    BRACKET, ALTERANTOR MOUNTING (LARGE)
  • 25
    16-54177 STUD, MOUNTING BRACKET TO CYLINDER BLOCK (1 3/8")
    STUD, MOUNTING BRACKET TO CYLINDER BLOCK (1 3/8")
  • 26
    16-54176 STUD, MOUNTING BRACKET TO CYLINDER BLOCK (1 5/8')
    STUD, MOUNTING BRACKET TO CYLINDER BLOCK (1 5/8')
  • 27
    12-20553 WASHER, MOUNTING BRACCKET STUD
    WASHER, MOUNTING BRACCKET STUD
  • 28
    11-23161 NUT, MOUNTING BRACKET STUD
    NUT, MOUNTING BRACKET STUD
  • 29
    27-53502 GASKET, ALTERNATOR MOUNTING BRACKET (LARGE BRACKET)
    GASKET, ALTERNATOR MOUNTING BRACKET (LARGE BRACKET)
  • 30
    10-33524 SCREW, ALTERNATOR MOUNTING BRACKET TO CYL. BLOCK(5/8')
    SCREW, ALTERNATOR MOUNTING BRACKET TO CYL. BLOCK(5/8')
  • 31
    13-26993 LOCKWASHER, ALTERNATOR MOUNTING BRACKET SCREW
    LOCKWASHER, ALTERNATOR MOUNTING BRACKET SCREW
  • 32
    12-26825 WASHER, ALTERNATOR MOUNTING BRACKET SCREW
    WASHER, ALTERNATOR MOUNTING BRACKET SCREW
  • 33
    84-78581A1 ALTERNATOR HARNESS ASSEMBLY
    USED WITH B-84-66963A1 HARNESS WIRING
    ALTERNATOR HARNESS ASSEMBLY
    USED WITH B-84-66963A1 HARNESS WIRING
  • 34
    88-79023T90 FUSE ASSEMBLY, 90 AMP
    USED WITH B-84-66963A1 HARNESS WIRING
    FUSE ASSEMBLY, 90 AMP
    USED WITH B-84-66963A1 HARNESS WIRING
  • 34A
    84-79139A6 JUMPER WIRE, 90 AMP FUSE TO CIRCUIT BREAKER
    USED WITH B-84-66963A1 HARNESS WIRING
    JUMPER WIRE, 90 AMP FUSE TO CIRCUIT BREAKER
    USED WITH B-84-66963A1 HARNESS WIRING
  • 35
    13-24669 LOCKWASHER , FUSE STUD
    USED WITH B-84-66963A1 HARNESS WIRING
    LOCKWASHER , FUSE STUD
    USED WITH B-84-66963A1 HARNESS WIRING
  • 36
    11-21825 NUT, FUSE STUD
    USED WITH B-84-66963A1 HARNESS WIRING
    NUT, FUSE STUD
    USED WITH B-84-66963A1 HARNESS WIRING
  • 37
    85-79695T BOOT, INSULATOR-FUSE STUD
    USED WITH B-84-66963A1 HARNESS WIRING
    BOOT, INSULATOR-FUSE STUD
    USED WITH B-84-66963A1 HARNESS WIRING
