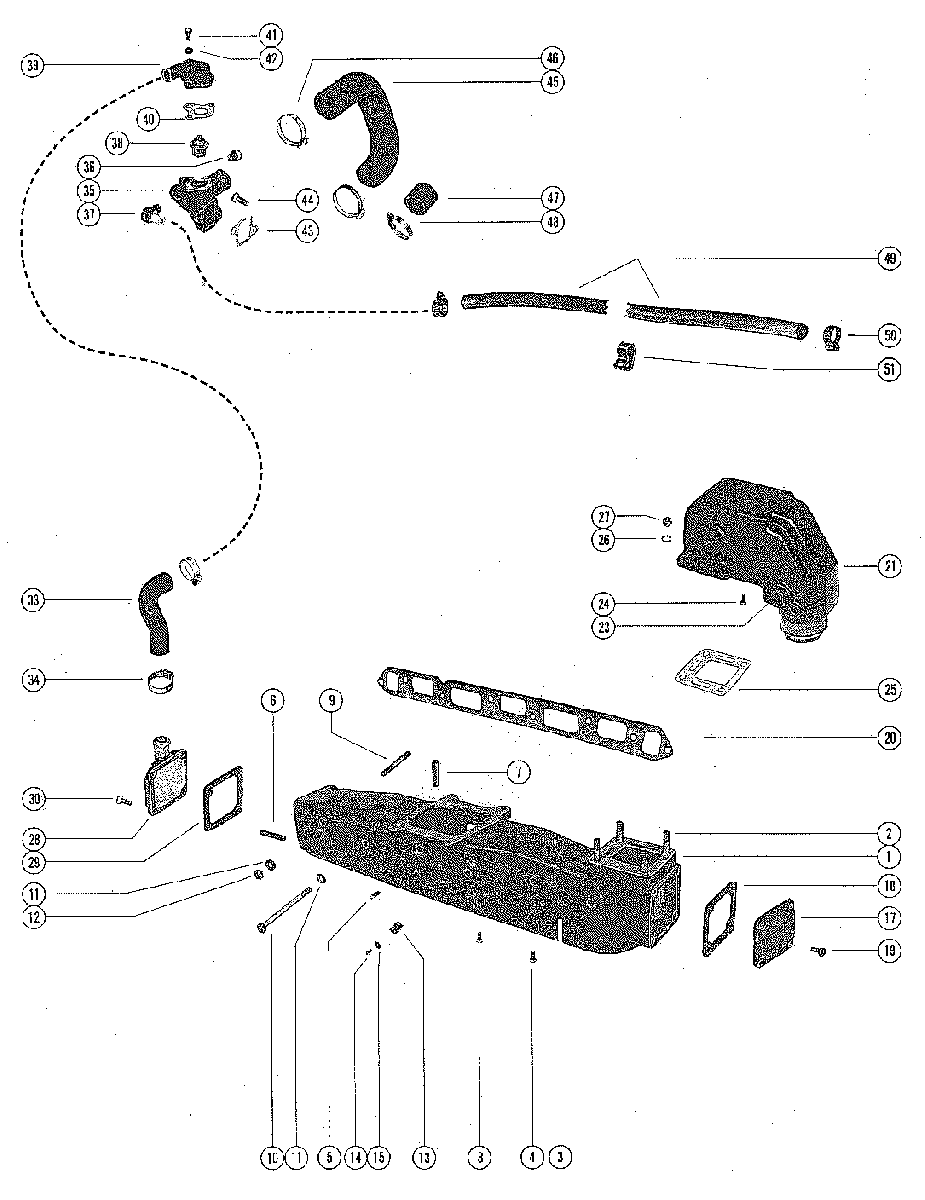

EXHAUST MANIFOLD AND EXHAUST ELBOW для Mercruiser - 165 GM 250 I/L6 1979-1981 5178959 AND UP

  • №
    Артикул
    Название
  • 1
    58759A14 EXHAUST MANIFOLD ASSEMBLY
    EXHAUST MANIFOLD ASSEMBLY
  • 2
    16-49545 STUD, EXHAUST MANIFOLD TO EXHAUST ELBOW (1 3/4")
    STUD, EXHAUST MANIFOLD TO EXHAUST ELBOW (1 3/4")
  • 3
    22-48118 PLUG, EXHAUST MANIFOLD
    PLUG, EXHAUST MANIFOLD
  • 4
    22-328022 PLUG, PIPE - EXHAUST MANIFOLD (1/8-27)
    PLUG, PIPE - EXHAUST MANIFOLD (1/8-27)
  • 5
    22-32561 PLUG, PIPE - EXHAUST MANIFOLD (1/4-18)
    PLUG, PIPE - EXHAUST MANIFOLD (1/4-18)
  • 6
    16-54177 STUD, ALTERNATOR BRACE ATTACHING
    STUD, ALTERNATOR BRACE ATTACHING
  • 7
    32-55644 TUBE, HEAT - EXHAUST MANIFOLD
    TUBE, HEAT - EXHAUST MANIFOLD
  • 8
    10-98256 SCREW, EXHAUST MANIFOLD (1/2")
    SCREW, EXHAUST MANIFOLD (1/2")
  • 9
    16-52093 STUD, EXHAUST MANIFOLD TO CYLINDER BLOCK (5 1/4")
    STUD, EXHAUST MANIFOLD TO CYLINDER BLOCK (5 1/4")
  • 10
    10-52143 SCREW, EXHAUST MANIFOLD TO CYLINDER HEAD (4 3/4")
    SCREW, EXHAUST MANIFOLD TO CYLINDER HEAD (4 3/4")
  • 11
    12-20553 WASHER, EXHAUST MANIFOLD SCREW AND STUD
    WASHER, EXHAUST MANIFOLD SCREW AND STUD
  • 12
    11-49838 NUT, EXHAUST MANIFOLD STUD
    NUT, EXHAUST MANIFOLD STUD
  • 13
    54-60517 CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD (3/8")
    CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD (3/8")
  • 13
    54-60516 CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD (9/16")
    CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD (9/16")
  • 14
    10-32228 SCREW, WIRING HARNESS CLAMP FASTENING (5/8")
    SCREW, WIRING HARNESS CLAMP FASTENING (5/8")
  • 15
    12-24676 WASHER, WIRING HARNESS CLAMP FASTENING SCREW
    WASHER, WIRING HARNESS CLAMP FASTENING SCREW
  • 17
    73813A1 END CAP, EXHAUST MANIFOLD (REAR)
    END CAP, EXHAUST MANIFOLD (REAR)
  • 18
    27-807218 GASKET, END CAP TO EXHAUST MANIFOLD
    GASKET, END CAP TO EXHAUST MANIFOLD
  • 19
    10-25299 SCREW, END CAP TO EXHAUST MANIFOLD (3/4")
    SCREW, END CAP TO EXHAUST MANIFOLD (3/4")
  • 20
    27-46401 GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
    GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
  • 21
    76351A04 EXHAUST ELBOW ASSEMBLY
    EXHAUST ELBOW ASSEMBLY
  • 23
    22-416223 PLUG, EXHAUST ELBOW (3/4-14)
    PLUG, EXHAUST ELBOW (3/4-14)
  • 24
    22-328022 PLUG, PIPE - EXHAUST ELBOW (1/8-27)
    PLUG, PIPE - EXHAUST ELBOW (1/8-27)
  • 25
    27-997772 GASKET, EXHAUST ELBOW TO EXHAUST MANIFOLD
    GASKET, EXHAUST ELBOW TO EXHAUST MANIFOLD
  • 26
    23-37489 LOCKWASHER, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
    LOCKWASHER, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
  • 27
    11-49838 NUT, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
    NUT, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
  • 28
    60252A2 END CAP/CONNECTOR, EXHAUST MANIFOLD (FRONT)
    END CAP/CONNECTOR, EXHAUST MANIFOLD (FRONT)
  • 29
    27-480431 GASKET, END CAP/CONNECTOR TO EXHAUST MANIFOLD
    GASKET, END CAP/CONNECTOR TO EXHAUST MANIFOLD
  • 30
    10-37562 SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (1")
    SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (1")
  • 33
    32-52481 HOSE, WATER DISTRIBUTION BLOCK TO END CAP/CONNECTOR
    HOSE, WATER DISTRIBUTION BLOCK TO END CAP/CONNECTOR
  • 34
    54-815504220 CLAMP, HOSE TO WATER DISTRIBUTION BLOCK AND END CAP CONNECTO
    CLAMP, HOSE TO WATER DISTRIBUTION BLOCK AND END CAP CONNECTO
  • 35
    861493A07 BLOCK ASSEMBLY, WATER DISTRIBUTION - CYLINDER BLOCK
    BLOCK ASSEMBLY, WATER DISTRIBUTION - CYLINDER BLOCK
  • 36
    22-32803 PLUG, PIPE - WATER DISTRIBUTION BLOCK
    PLUG, PIPE - WATER DISTRIBUTION BLOCK
  • 36
    22-328022 PLUG, PIPE - WATER DISTRIBUTION BLOCK
    PLUG, PIPE - WATER DISTRIBUTION BLOCK
  • 37
    22-53509 ELBOW, WATER DISTRIBUTION BLOCK
    ELBOW, WATER DISTRIBUTION BLOCK
  • 38
    59078 THERMOSTAT
    THERMOSTAT
  • 39
    861493A07 COVER ASSEMBLY, THERMOSTAT - WATER DISTRIBUTION BLOCK
    COVER ASSEMBLY, THERMOSTAT - WATER DISTRIBUTION BLOCK
  • 40
    27-475901 GASKET, THERMOSTAT COVER
    GASKET, THERMOSTAT COVER
  • 41
    10-53512 SCREW, COVER TO DISTRIBUTION BLOCK (3/4")
    WHEN ORDERING REPLACEMENT SCREW, CHECK LENGTH TO INSURE RECEIVING CORRECT PART.
    SCREW, COVER TO DISTRIBUTION BLOCK (3/4")
    WHEN ORDERING REPLACEMENT SCREW, CHECK LENGTH TO INSURE RECEIVING CORRECT PART.
  • 41
    10-881892 SCREW, COVER TO DISTRIBUTION BLOCK (1 3/4")
    WHEN ORDERING REPLACEMENT SCREW, CHECK LENGTH TO INSURE RECEIVING CORRECT PART.
    SCREW, COVER TO DISTRIBUTION BLOCK (1 3/4")
    WHEN ORDERING REPLACEMENT SCREW, CHECK LENGTH TO INSURE RECEIVING CORRECT PART.
  • 41
    10-67450 SCREW, COVER TO DISTRIBUTION BLOCK (2 1/4")
    WHEN ORDERING REPLACEMENT SCREW, CHECK LENGTH TO INSURE RECEIVING CORRECT PART.
    SCREW, COVER TO DISTRIBUTION BLOCK (2 1/4")
    WHEN ORDERING REPLACEMENT SCREW, CHECK LENGTH TO INSURE RECEIVING CORRECT PART.
  • 42
    12-36533 WASHER, COVER TO DISTRIBUTION BLOCK SCREW
    WASHER, COVER TO DISTRIBUTION BLOCK SCREW
  • 43
    27-8146801 GASKET, WATER DISTRIBUTION BLOCK
    GASKET, WATER DISTRIBUTION BLOCK
  • 44
    10-21077 SCREW, WATER DISTRIBUTION BLOCK TO CYLINDER HEAD (7/8")
    SCREW, WATER DISTRIBUTION BLOCK TO CYLINDER HEAD (7/8")
  • 45
    32-8M0071007 HOSE, WATER DISTRIBUTION BLOCK TO WATER PUMP
    HOSE, WATER DISTRIBUTION BLOCK TO WATER PUMP
  • 46
    54-815504228 CLAMP, HOSE TO WATER DISTRIBUTION BLOCK AND WATER PUMP
    CLAMP, HOSE TO WATER DISTRIBUTION BLOCK AND WATER PUMP
  • 47
    32877 COVER, WATER PUMP (1 1/16"LONG)
    COVER, WATER PUMP (1 1/16"LONG)
  • 48
    54-815504412 CLAMP, WATER PUMP COVER TO WATER PUMP
    CLAMP, WATER PUMP COVER TO WATER PUMP
  • 49
    32-47642 HOSE, INLET - WATER DISTRIBUTION TO BLOCK TO DRIVE UNIT
    HOSE, INLET - WATER DISTRIBUTION TO BLOCK TO DRIVE UNIT
  • 50
    54-815504310 CLAMP, INLET HOSE TO WATER DISTRIBUTION BLOCK AND DRIVE UNIT
    CLAMP, INLET HOSE TO WATER DISTRIBUTION BLOCK AND DRIVE UNIT
  • 51
    54-58003 CLAMP, INLET HOSE TO MANIFOLD
    CLAMP, INLET HOSE TO MANIFOLD
