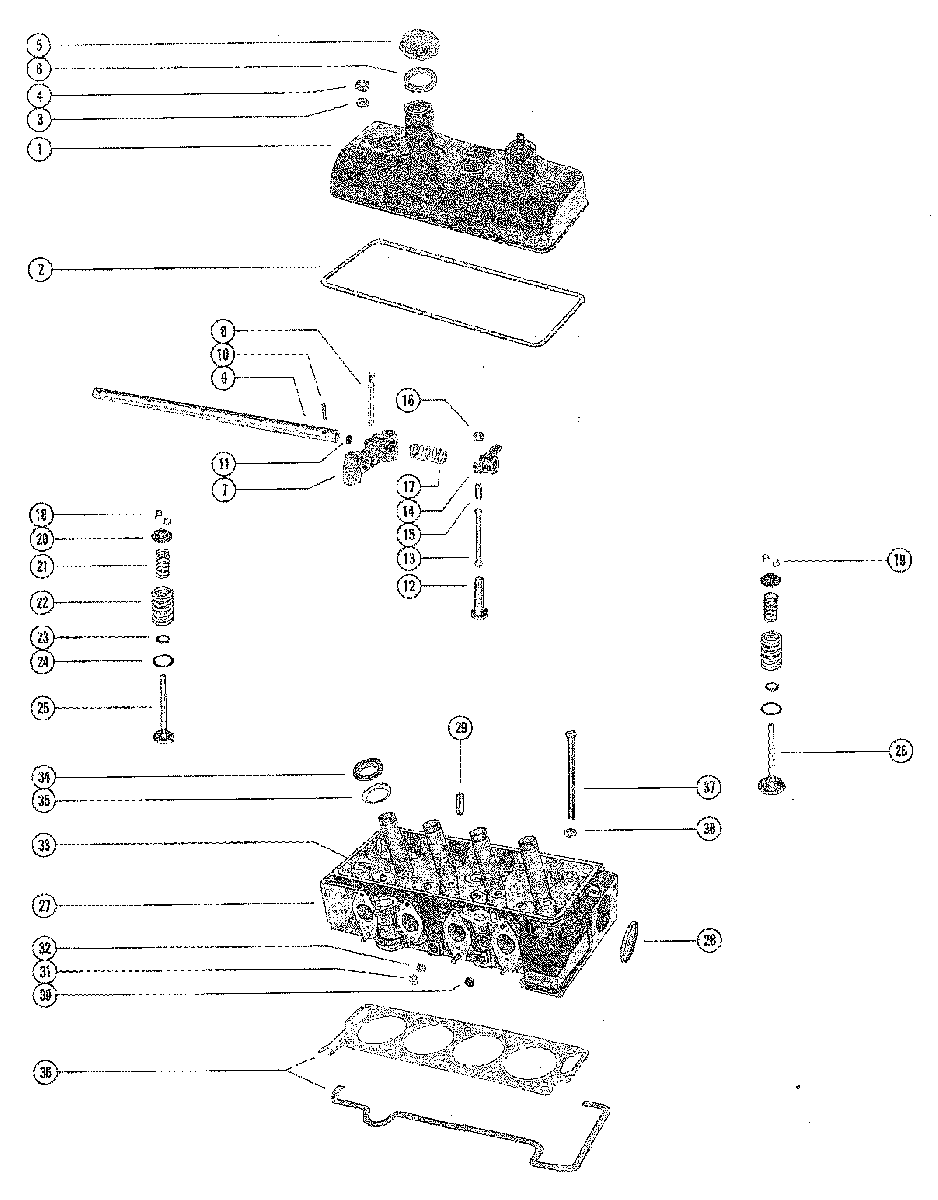

TOP COVER, ROCKER SHAFT AND CYLINDER HEAD для Mercruiser - 90 RENAULT 96 I/L4 1970-1972 2851424 THRU 3226957

  • №
    Артикул
    Название
  • 1
    58526 COVER, TOP
    COVER, TOP
  • 2
    27-58527 GASKET, TOP COVER
    GASKET, TOP COVER
  • 3
    12-58537 WASHER, TOP COVER FASTENING NUT
    WASHER, TOP COVER FASTENING NUT
  • 4
    11-58536 NUT, TOP COVER FASTENING
    NUT, TOP COVER FASTENING
  • 5
    46556 CAP, OIL FILLER
    CAP, OIL FILLER
  • 6
    27-58535 GASKET, OIL FILLER CAP
    GASKET, OIL FILLER CAP
  • 7
    58543 SUPPORT, ROCKER SHAFT (INTERMEDAIATE)
    SUPPORT, ROCKER SHAFT (INTERMEDAIATE)
  • 7
    58545 SUPPORT, ROCKER SHAFT (FRONT, CENTER AND REAR)
    SUPPORT, ROCKER SHAFT (FRONT, CENTER AND REAR)
  • 8
    16-58555 STUD, MOUNTING - TOP COVER
    STUD, MOUNTING - TOP COVER
  • 9
    58556 SHAFT, ROCKER
    SHAFT, ROCKER
  • 10
    17-58544 PIN, ROCKER SHAFT TO SUPPORT
    PIN, ROCKER SHAFT TO SUPPORT
  • 11
    19-46577 WELCH PLUG, ROCKER SHAFT
    WELCH PLUG, ROCKER SHAFT
  • 12
    46593 LIFTER, PUSH ROD (12MM)
    LIFTER, PUSH ROD (12MM)
  • 12
    46594 LIFTER, PUSH ROD (12.2MM)
    LIFTER, PUSH ROD (12.2MM)
  • 13
    58552 ROD, PUSH - EXHAUST
    ROD, PUSH - EXHAUST
  • 13
    58551 ROD, PUSH - INLET
    ROD, PUSH - INLET
  • 14
    58576 ARM, ROCKER - INLET
    ARM, ROCKER - INLET
  • 14
    58558 ARM, ROCKER - EXHAUST
    ARM, ROCKER - EXHAUST
  • 15
    46593 SCREW, ADJUSTING - PUSH ROD
    SCREW, ADJUSTING - PUSH ROD
  • 16
    11-46585 NUT, LOCK - PUSH ROD ADJUSTING SCREW
    NUT, LOCK - PUSH ROD ADJUSTING SCREW
  • 17
    24-58557 SPRING, ROCKER SHAFT
    SPRING, ROCKER SHAFT
  • 18
    28-46580 KEY, EXHAUST VALVE (DOUBLE GROOVE)
    KEY, EXHAUST VALVE (DOUBLE GROOVE)
  • 19
    28-46579 KEY, INLET VALVE (SINGLE GROOVE)
    KEY, INLET VALVE (SINGLE GROOVE)
  • 20
    58546 CAP, VALVE SPRING (UPPER)
    CAP, VALVE SPRING (UPPER)
  • 21
    24-58547 SPRING, VALVE (INNER)
    SPRING, VALVE (INNER)
  • 22
    24-58548 SPRING, VALVE (OUTER)
    SPRING, VALVE (OUTER)
  • 23
    12-58549 WASHER, VALVE SPRING (LOWER - SMALL)
    WASHER, VALVE SPRING (LOWER - SMALL)
  • 24
    12-58550 WASHER, VALVE SPRING (LOWER - LARGE)
    WASHER, VALVE SPRING (LOWER - LARGE)
  • 25
    58559 VALVE, EXHAUST (SMALL HEAD)
    VALVE, EXHAUST (SMALL HEAD)
  • 26
    58553 VALVE, INLET (LARGE HEAD)
    VALVE, INLET (LARGE HEAD)
  • 27
    940-4351 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 28
    19-46563 PLUG EXPANSION - CYLINDER HEAD
    PLUG EXPANSION - CYLINDER HEAD
  • 29
    46561 VALVE GUIDE (13.10MM)
    VALVE GUIDE (13.10MM)
  • 29
    46560 VALVE GUIDE (13.25MM)
    VALVE GUIDE (13.25MM)
  • 30
    19-58532 PLUG, EXPANSION - CYLINDER HEAD
    PLUG, EXPANSION - CYLINDER HEAD
  • 30
    19-58540 PLUG, EXPANSION - CYLINDER HEAD
    PLUG, EXPANSION - CYLINDER HEAD
  • 31
    22-58533 ,PLUG, CYLINDER HEAD
    ,PLUG, CYLINDER HEAD
    Производитель Mercury-Mercruiser
  • 32
    27-58534 GASKET, CYLINDER HEAD PLUG
    GASKET, CYLINDER HEAD PLUG
  • 33
    23-58530 BUSHING, OIL PORT
    BUSHING, OIL PORT
  • 34
    58528 SEAL, SPARK PLUG TUBE TO COVER
    SEAL, SPARK PLUG TUBE TO COVER
  • 35
    58529 RETAINER, SPARK PLUG TUBE SEAL
    RETAINER, SPARK PLUG TUBE SEAL
  • 36
    27-60848A1 GASKET KIT, CYLINDER HEAD
    GASKET KIT, CYLINDER HEAD
  • 37
    10-58539 BOLT, CYLINDER HEAD TO CYLINDER BLOCK (195MM)
    BOLT, CYLINDER HEAD TO CYLINDER BLOCK (195MM)
  • 37
    10-58538 BOLT, CYLINDER HEAD TO CYLINDER BLOCK (215MM)
    BOLT, CYLINDER HEAD TO CYLINDER BLOCK (215MM)
  • 38
    12-58541 WASHER, CYLINDER HEAD BOLT
    WASHER, CYLINDER HEAD BOLT
