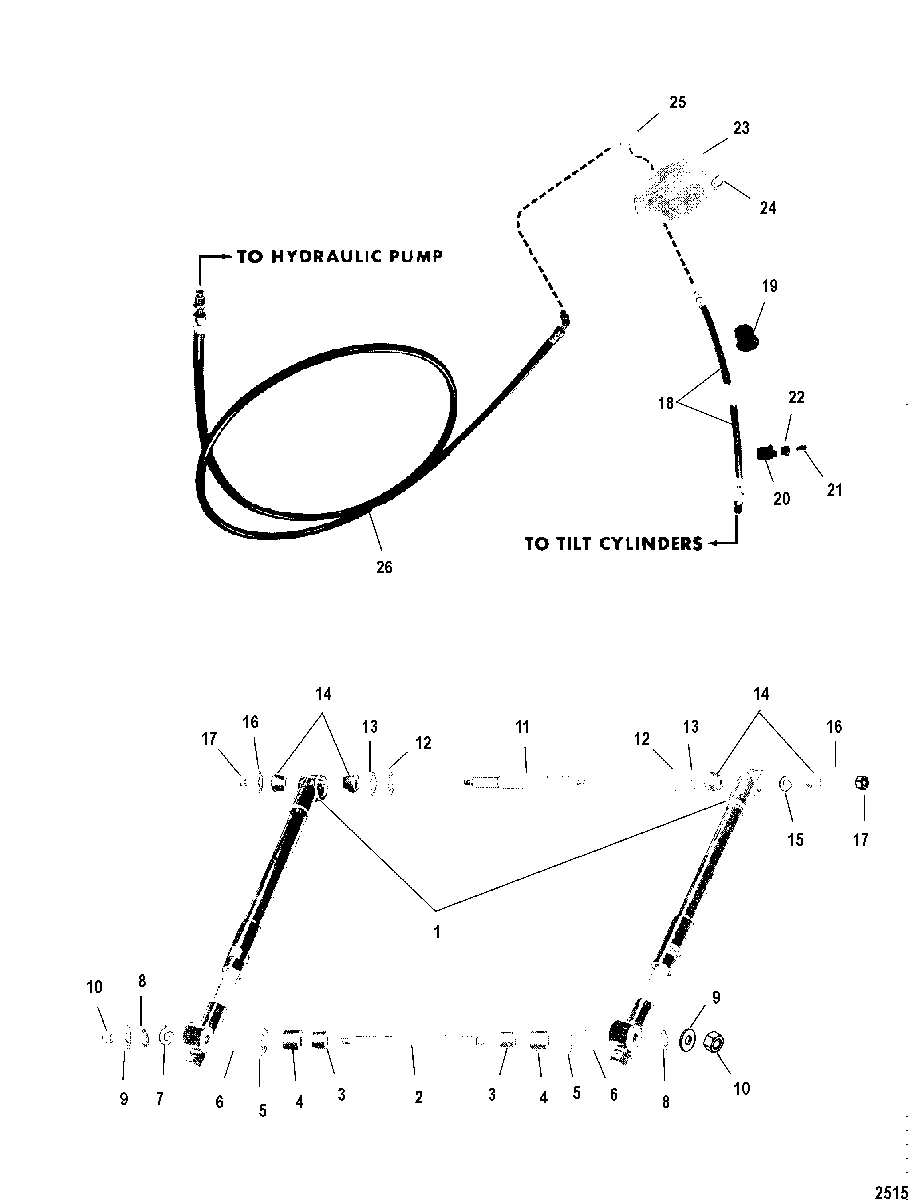

TILT CYLINDERS AND HYDRAULIC HOSES для Mercruiser - 90 RENAULT 96 I/L4 1970-1972 2851424 THRU 3226957

  • №
    Артикул
    Название
  • 1
    45375A1 TILT CYLINDER ASSEMBLY
    TILT CYLINDER ASSEMBLY
  • 2
    17-39641 ANCHOR PIN-Tilt Cylinder to Drive Shaft Housing
    ANCHOR PIN-Tilt Cylinder to Drive Shaft Housing
  • 3
    23-39639 SLEEVE-Drive Shaft Housing Anchor Pin
    SLEEVE-Drive Shaft Housing Anchor Pin
  • 4
    23-39638 SLEEVE-Rubber-Drive Shaft Housing Anchor Pin
    SLEEVE-Rubber-Drive Shaft Housing Anchor Pin
  • 5
    12-39637 WASHER-Drive Shaft Housing Anchor PIn
    WASHER-Drive Shaft Housing Anchor PIn
  • 6
    13-37642 WAVE WASHER-Drive Shaft Housing Anchor PIn
    WAVE WASHER-Drive Shaft Housing Anchor PIn
  • 7
    24-46312 SPRING-Drive Shaft Housing Anchor Pin
    SPRING-Drive Shaft Housing Anchor Pin
  • 8
    12-39782 WASHER-Rubber-Drive Shaft Housing Anchor Pin
    WASHER-Rubber-Drive Shaft Housing Anchor Pin
  • 9
    12-8M0042641 WASHER-Drive Shaft Housing Anchor Pin
    WASHER-Drive Shaft Housing Anchor Pin
  • 10
    11-82671013 NUT-Drive Shaft Housing Anchor Pin
    NUT-Drive Shaft Housing Anchor Pin
  • 11
    17-39640 ANCHOR PIN-Tilt Cylinder to Gimbal Ring
    ANCHOR PIN-Tilt Cylinder to Gimbal Ring
  • 12
    12-39636 WASHER-Gimbal Ring Anchor Pin
    WASHER-Gimbal Ring Anchor Pin
  • 13
    12-36041 WASHER-Gimbal Ring Anchor Pin
    WASHER-Gimbal Ring Anchor Pin
  • 14
    23-35278 BUSHING-Tapered-Gimbal Ring Anchor Pin
    BUSHING-Tapered-Gimbal Ring Anchor Pin
  • 15
    24-46312 SPRING-Gimbal Ring Anchor Pin
    SPRING-Gimbal Ring Anchor Pin
  • 16
    12-36042 WASHER-Gimbal Ring Anchor Pin
    WASHER-Gimbal Ring Anchor Pin
  • 17
    11-82670911 NUT-Gimbal Ring Anchor Pin
    NUT-Gimbal Ring Anchor Pin
  • 18
    32-38755 HYDRAULIC HOSE-Elbow to Tilt Cylinders (25-3/4 IN.)
    HYDRAULIC HOSE-Elbow to Tilt Cylinders (25-3/4 IN.)
  • 19
    23-35977 GROMMET-Hydraulic Hose
    GROMMET-Hydraulic Hose
  • 20
    54-22875 CLIP-Hydraulic Hose
    (NYLON)
    CLIP-Hydraulic Hose
    (NYLON)
  • 20
    54-28700 CLIP-Hydraulic Hose to Transom Plate
    (Steel)
    CLIP-Hydraulic Hose to Transom Plate
    (Steel)
  • 21
    10-35401 SCREW-Hydraulic Hose Clip
    (1 IN.)
    SCREW-Hydraulic Hose Clip
    (1 IN.)
  • 21
    10-98256 SCREW-Hydraulic Hose Clip to Transom Plate
    (1/2 IN.)
    SCREW-Hydraulic Hose Clip to Transom Plate
    (1/2 IN.)
  • 21
    10-57143 SCREW-Hydraulic Hose Clip
    (3/4 IN.)
    SCREW-Hydraulic Hose Clip
    (3/4 IN.)
  • 22
    8M0084613 D-WASHER-Hydraulic Hose Clip Screw
    D-WASHER-Hydraulic Hose Clip Screw
  • 22
    13-26992 LOCKWASHER-Hydraulic Hose Clip Screw
    LOCKWASHER-Hydraulic Hose Clip Screw
  • 23
    49200A2 COVER ASSEMBLY-Inlet
    COVER ASSEMBLY-Inlet
  • 24
    12-49199 WASHER-Inlet Cover
    WASHER-Inlet Cover
  • 25
    22-38752 ELBOW-Connecting Hose to Tilt Cylinders
    ELBOW-Connecting Hose to Tilt Cylinders
  • 26
    32-57114 HYDRAULIC HOSE-Elbow to Hydraulic Pump (25 IN.)
    HYDRAULIC HOSE-Elbow to Hydraulic Pump (25 IN.)
