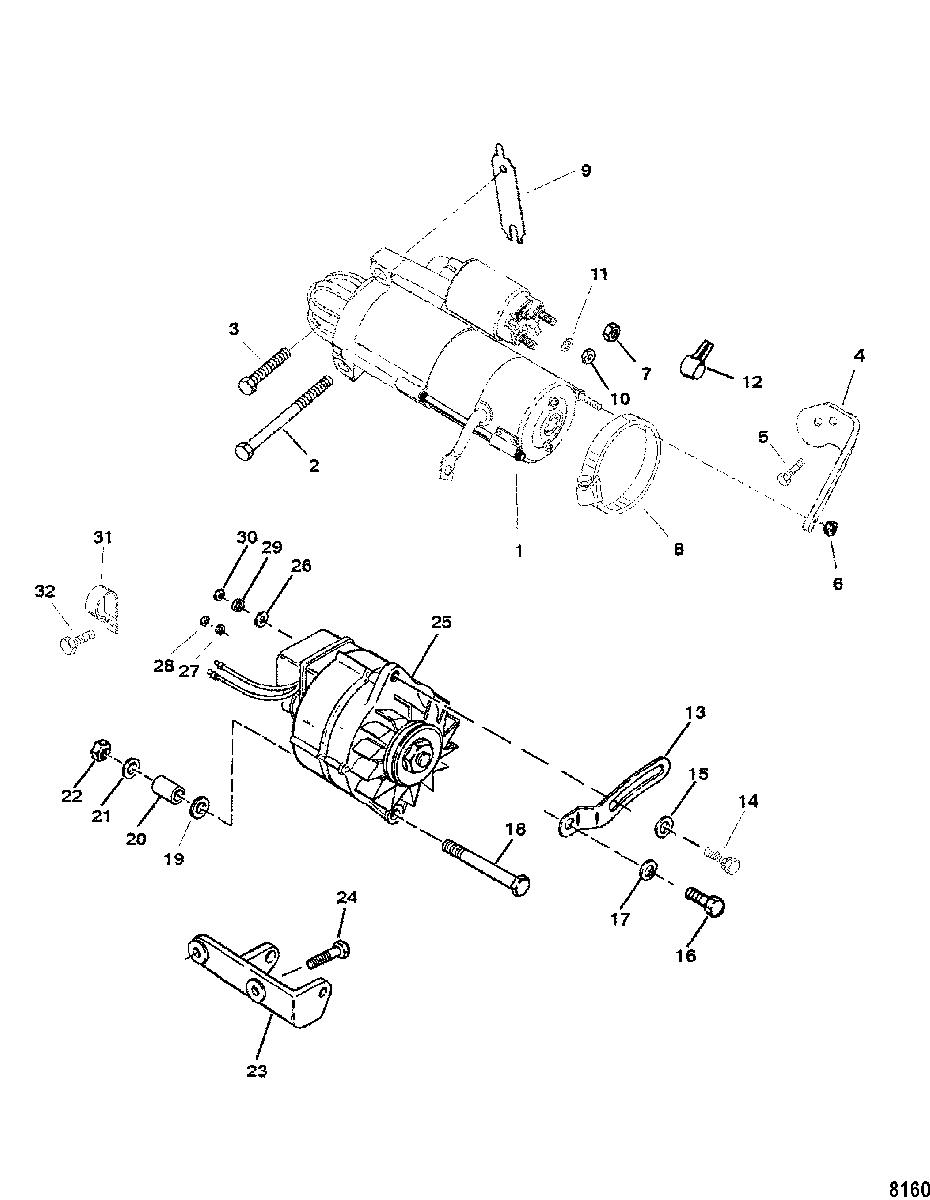

Starter Motor and Alternator для Mercruiser - 3.0L GM 181 I/L4 1 1998 0L010042 THRU 0L096999

  • №
    Артикул
    Название
  • 1
    50-8M0090697 STARTER MOTOR ASSEMBLY
    (See "Starter Motor" Section For Breakdown)
    STARTER MOTOR ASSEMBLY
    (See "Starter Motor" Section For Breakdown)
  • 2
    10-8053432 SCREW, (.375-16 x 4.33)
    SCREW, (.375-16 x 4.33)
  • 3
    10-8053434 BOLT, (1.6875)
    BOLT, (1.6875)
  • 4
    807213T BRACKET, Starter
    BRACKET, Starter
  • 5
    10-824941 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 6
    11-21806 NUT, (#10-24)
    NUT, (#10-24)
  • 7
    11-806949 NUT, (M8-1.5)
    NUT, (M8-1.5)
  • 8
    54-815504348 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 9
    98192 SHIM
    SHIM
  • 10
    11-400211 NUT, (M5) Stainless Steel
    NUT, (M5) Stainless Steel
  • 11
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 12
    85-79695T BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 13
    58333 BRACE, Alternator Adjusting
    BRACE, Alternator Adjusting
  • 14
    10-29198 SCREW AND LOCKWASHER, (.312-18 x .875)
    SCREW AND LOCKWASHER, (.312-18 x .875)
  • 15
    12-26168 WASHER
    WASHER
  • 16
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 17
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 18
    10-37626 SCREW, (.375-24 x 4.250)
    SCREW, (.375-24 x 4.250)
  • 19
    12-28105 WASHER
    WASHER
  • 20
    23-63894 SPACER
    SPACER
  • 21
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 22
    11-23161 NUT, (.375-24)
    NUT, (.375-24)
  • 23
    16738A1 BRACKET, Alternator
    BRACKET, Alternator
  • 24
    10-865982005 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 25
    817119A4 ALTERNATOR
    (See "Alternator" Section For Breakdown)
    ALTERNATOR
    (See "Alternator" Section For Breakdown)
  • 26
    12-96457 WASHER, Phenolic (.27 x .81 x .062)
    WASHER, Phenolic (.27 x .81 x .062)
  • 27
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 28
    11-79989 NUT, (#10-24) Stainless Steel
    NUT, (#10-24) Stainless Steel
  • 29
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 30
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 31
    54-78945 J CLAMP, Harness Support
    J CLAMP, Harness Support
  • 32
    23-98621 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
