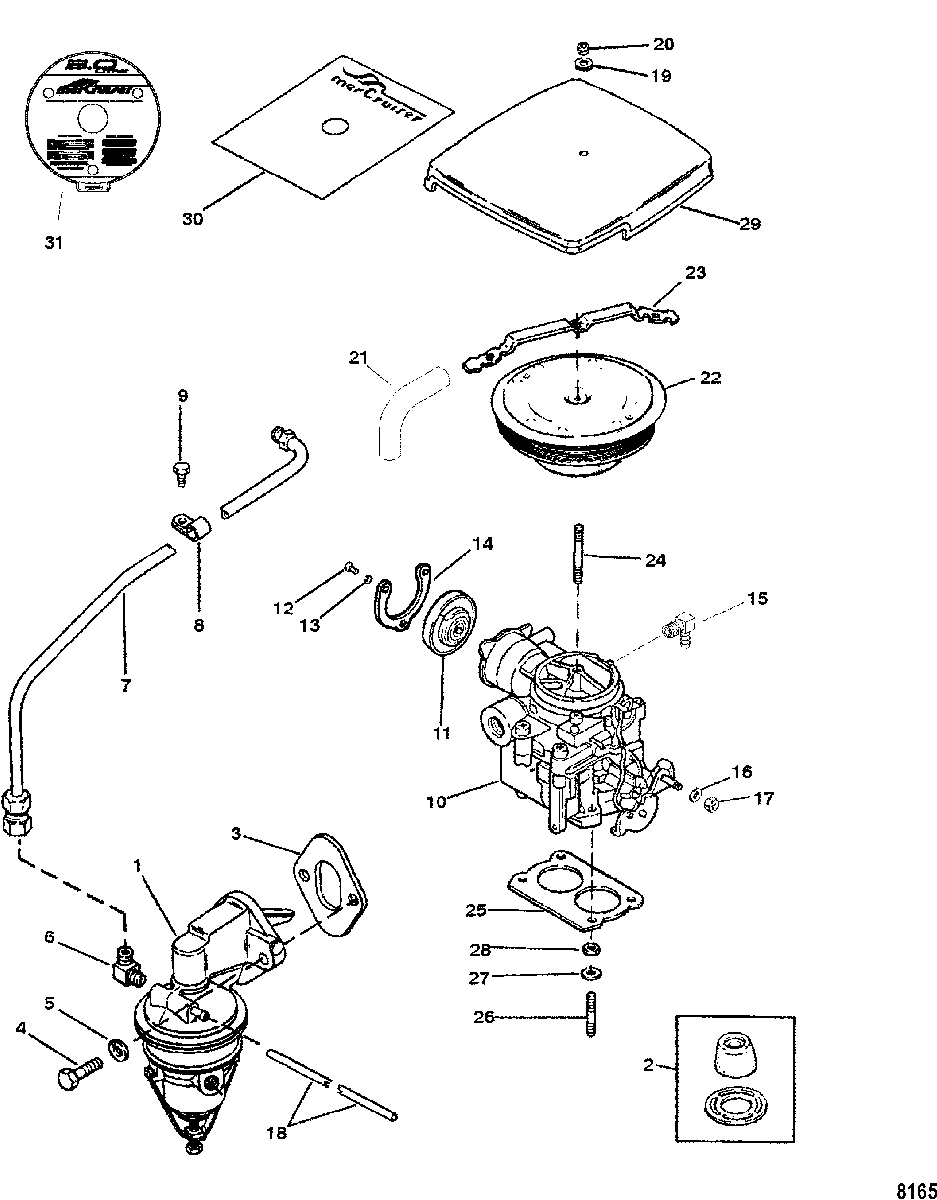

Fuel Pump and Carburetor для Mercruiser - 3.0L GM 181 I/L4 1 1998 0L010042 THRU 0L096999
-
№АртикулНазвание
-
18M0073435 PUMP ASSEMBLY, Fuel, FuelPUMP ASSEMBLY, Fuel, Fuel
-
235-8M0046752 FILTER KIT, FuelFILTER KIT, Fuel
-
327-8M0108647 GASKETGASKET
-
410-31984 SCREW, (.312-18 x 1.375)SCREW, (.312-18 x 1.375)
-
513-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
622-43276 ELBOW, (90 Degree) (90 Degree)ELBOW, (90 Degree) (90 Degree)
-
732-147971 LINE, Fuel
SN# 0K999999 & BelowLINE, Fuel
SN# 0K999999 & Below -
732-8M0045357 LINE, Fuel
SN# 0L010042 & UpLINE, Fuel
SN# 0L010042 & Up -
854-65653 CLIPCLIP
-
910-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
103310-8M0045397 CARBURETOR ASSEMBLY
(See "Carburetor (Mercarb) for BreakdownCARBURETOR ASSEMBLY
(See "Carburetor (Mercarb) for Breakdown -
103310-807505A1 CARBURETOR ASSEMBLY
(Swiss Emissions) (BSO1 & SAV1) (Breakdown not Available at Time of Printing)CARBURETOR ASSEMBLY
(Swiss Emissions) (BSO1 & SAV1) (Breakdown not Available at Time of Printing) -
1170125A02 COVER, ChokeCOVER, Choke
-
1210-33047 SCREWSCREW
-
1313-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
1453-805140 PLATEPLATE
-
1522-54090 ELBOW (90 Degree)ELBOW (90 Degree)
-
1612-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
1711-8267086 NUT, (#10-32)NUT, (#10-32)
-
1832-7381567 TUBING, (42.00 Inches Bulk)TUBING, (42.00 Inches Bulk)
-
1912-86400 WASHERWASHER
-
2011-826709109 NUT, (.250-28)NUT, (.250-28)
-
2132-807202 HOSE, Breather
SN# 0K999999 & BelowHOSE, Breather
SN# 0K999999 & Below -
2132-8M0086022 HOSE, Breather
SN# 0L010042 & UpHOSE, Breather
SN# 0L010042 & Up -
22805016A1 FLAME ARRESTORFLAME ARRESTOR
-
23805313 RETAINERRETAINER
-
2416-8M0113181 STUD, (.250-20/.250-28 x Special)STUD, (.250-20/.250-28 x Special)
-
2527-8079821 GASKETGASKET
-
2616-8M0113177 STUD, (.312 x 1.500)STUD, (.312 x 1.500)
-
2712-20084 WASHER, (.328 x .562 x .062)WASHER, (.328 x .562 x .062)
-
2811-862902 NUT, (.9375-24)NUT, (.9375-24)
-
2917878A5 COVER, CarburetorCOVER, Carburetor
-
3037-8189392 DECAL
SN# 0K999999 & BelowDECAL
SN# 0K999999 & Below -
3037-807667 DECAL
(Swiss Emissions) (BSO1 And SAV1)DECAL
(Swiss Emissions) (BSO1 And SAV1) -
3137-8615061 DECAL
SN# 0L010042 & UpDECAL
SN# 0L010042 & Up -
-27-810846A05 GASKET SET, OverhaulGASKET SET, Overhaul
