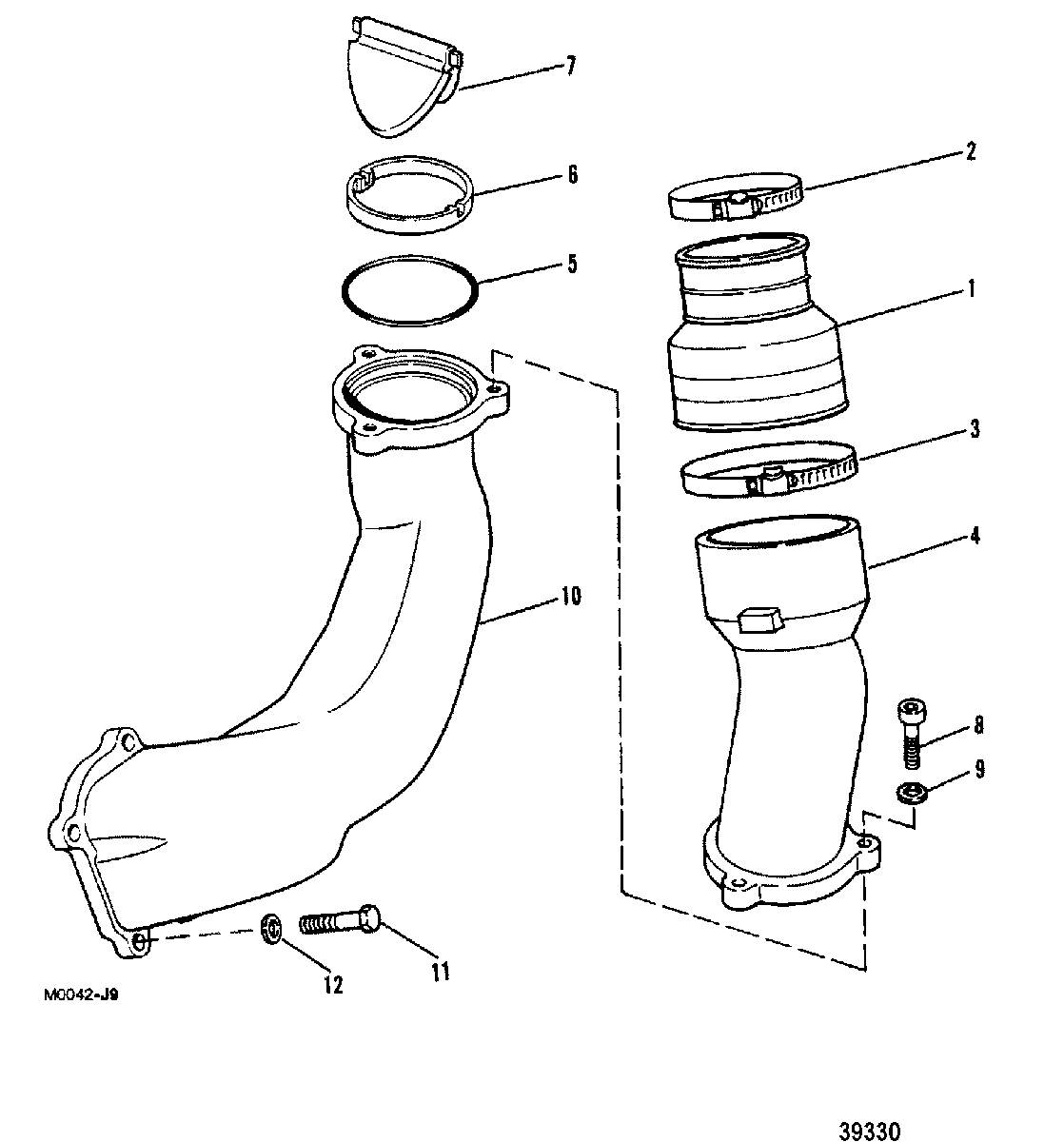

EXHAUST SYSTEM(OLD DESIGN) для Mercruiser - 2.5L GM 153 I/L4 1987-1989 0B531854 THRU 0C856558

  • №
    Артикул
    Название
  • 1
    70981A3 BELLOWS ASSEMBLY, EXHAUST ELBOW TO ENGINE
    BELLOWS ASSEMBLY, EXHAUST ELBOW TO ENGINE
  • 2
    54-815504456 CLAMP, BELLOWS (SMALL)
    CLAMP, BELLOWS (SMALL)
  • 3
    54-815504372 CLAMP, BELLOWS (LARGE)
    CLAMP, BELLOWS (LARGE)
  • 4
    96107A1 PIPE ASSEMBLY, Exhaust, UPPER
    PIPE ASSEMBLY, Exhaust, UPPER
  • 5
    25-35029 O-RING, 78.97 X 3.53 MM, EXHAUST ELBOW
    O-RING, 78.97 X 3.53 MM, EXHAUST ELBOW
  • 6
    60931 RETAINER, WATER SHUTTER
    RETAINER, WATER SHUTTER
  • 7
    60930 SHUTTER, Water
    SHUTTER, Water
  • 8
    10-8M0113174 SCREW, (.375-16 x 1.25), PIPE TO ELBOW
    SCREW, (.375-16 x 1.25), PIPE TO ELBOW
  • 9
    13-41471 LOCKWASHER, (.375), PIPE SCREW
    LOCKWASHER, (.375), PIPE SCREW
  • 10
    42421A13 PIPE ASSEMBLY, Exhaust, LOWER
    PIPE ASSEMBLY, Exhaust, LOWER
  • 11
    10-8M0113174 SCREW, (.375-16 x 1.25), ELBOW TO GIMBAL HOUSING
    SCREW, (.375-16 x 1.25), ELBOW TO GIMBAL HOUSING
  • 12
    13-41471 LOCKWASHER, (.375), ELBOW SCREW
    LOCKWASHER, (.375), ELBOW SCREW
