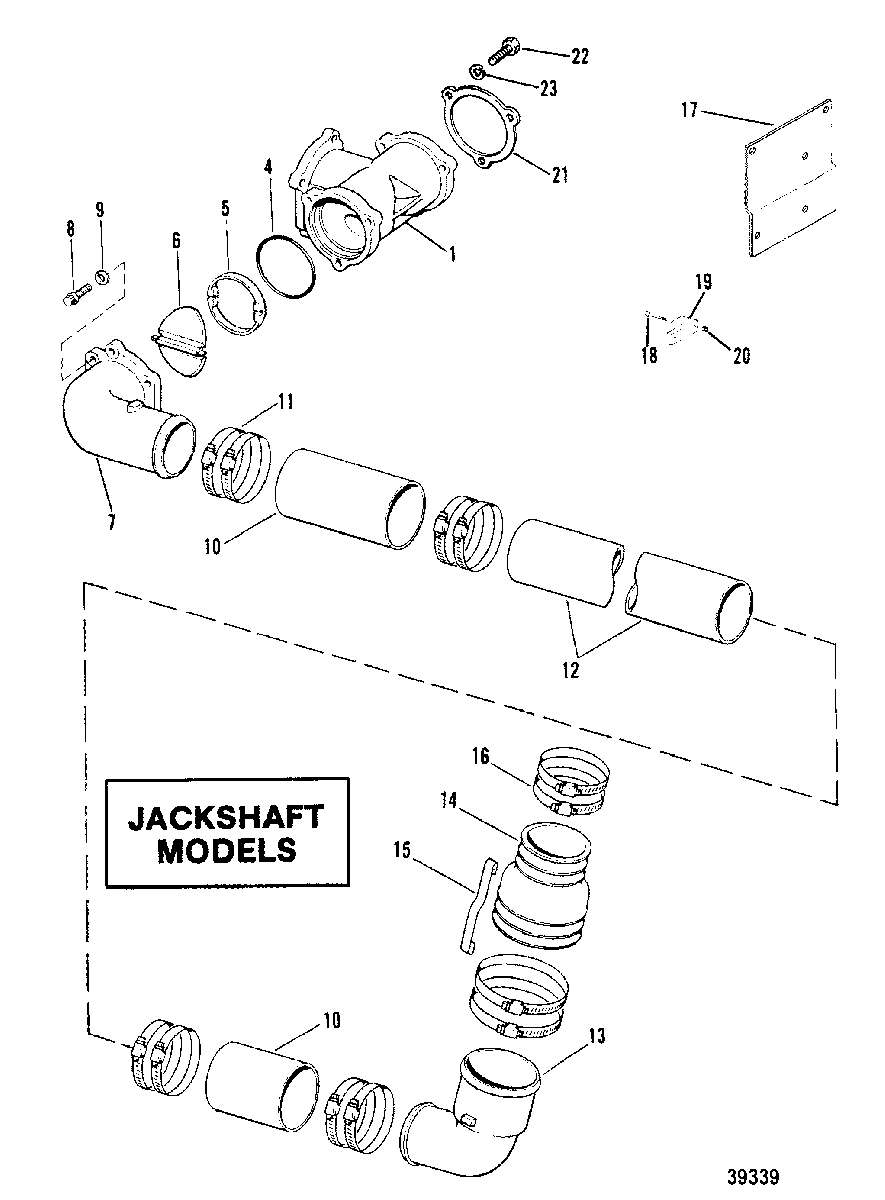

DRIVESHAFT EXTENSION COMPONENTS, JACKSHAFT MODELS для Mercruiser - 2.5L GM 153 I/L4 1987-1989 0B531854 THRU 0C856558

  • №
    Артикул
    Название
  • 1
    98626A3 SEPARATOR
    SEPARATOR
  • 4
    25-35029 O-RING, 78.97 X 3.53 MM
    O-RING, 78.97 X 3.53 MM
  • 5
    60931 RETAINER, WATER SHUTTER
    RETAINER, WATER SHUTTER
  • 6
    60930 SHUTTER, Water
    SHUTTER, Water
  • 7
    94018A1 ELBOW ASSEMBLY, Exhaust
    ELBOW ASSEMBLY, Exhaust
  • 8
    10-8M0113174 SCREW, (.375-16 x 1.25), EXHAUST ELBOW TO SEPARATOR
    SCREW, (.375-16 x 1.25), EXHAUST ELBOW TO SEPARATOR
  • 9
    13-58643 LOCKWASHER, (.375), EXHAUST ELBOW SCREW
    LOCKWASHER, (.375), EXHAUST ELBOW SCREW
  • 10
    32-486594 HOSE, EXHAUST
    HOSE, EXHAUST
  • 11
    54-815504456 CLAMP, EXHAUST HOSE
    CLAMP, EXHAUST HOSE
  • 12
    94608A1 TUBE ASSEMBLY, Exhaust
    TUBE ASSEMBLY, Exhaust
  • 13
    41191A1 ELBOW ASSEMBLY, Exhaust
    ELBOW ASSEMBLY, Exhaust
  • 14
    70981A3 BELLOWS ASSEMBLY
    BELLOWS ASSEMBLY
  • 15
    95740 STRAP, Ground, EXHAUST BELLOWS
    STRAP, Ground, EXHAUST BELLOWS
  • 16
    54-815504372 CLAMP, EXHAUST BELLOWS
    CLAMP, EXHAUST BELLOWS
  • 17
    41063A1 BRACKET ASSEMBLY, MOUNTING
    BRACKET ASSEMBLY, MOUNTING
  • 18
    10-24231 SCREW, (#10-32 x .250), BRACKET
    SCREW, (#10-32 x .250), BRACKET
  • 19
    11-46438 NUT, (#10-32), BRACKET SCREW
    NUT, (#10-32), BRACKET SCREW
  • 20
    86-45915 TERMINAL BLOCK
    TERMINAL BLOCK
  • 21
    93925A1 PLATE, EXHAUST SEPARATOR
    PLATE, EXHAUST SEPARATOR
  • 22
    10-8M0113180 SCREW, (.375-16 x 1.00), PLATE
    SCREW, (.375-16 x 1.00), PLATE
  • 23
    13-58643 LOCKWASHER, (.375), PLATE SCREW
    LOCKWASHER, (.375), PLATE SCREW
