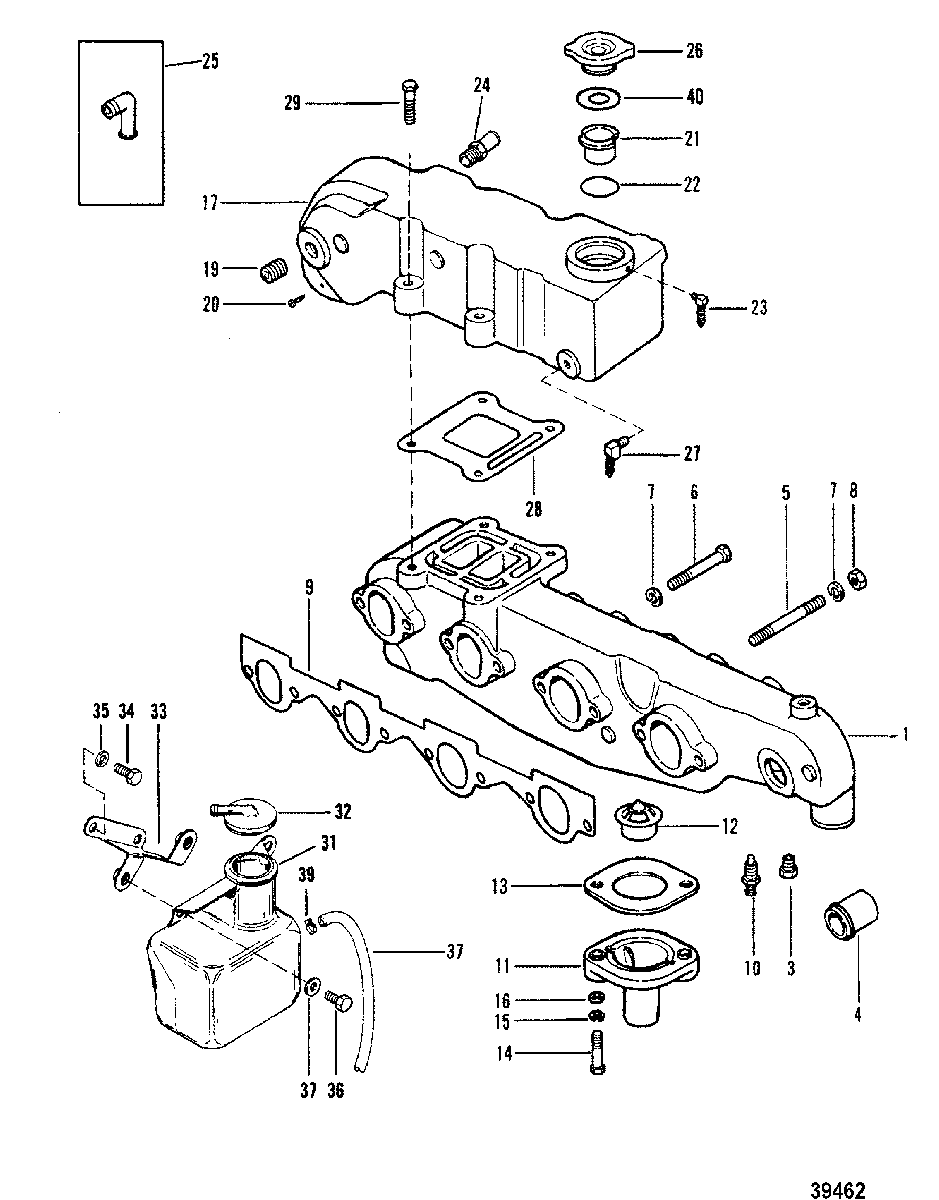

EXHAUST MANIFOLD AND EXHAUST ELBOW(ALUMINUM) для Mercruiser - 170 (2 BBL.) MERCURY 224 I/L4 1985-1986 6916779 THRU 0B434940

  • №
    Артикул
    Название
  • 1
    816219A5 MANIFOLD ASSEMBLY, Exhaust
    (Manifold Aluminum Casting) Also sold in kit (816219A 4) Including Elbow.
    MANIFOLD ASSEMBLY, Exhaust
    (Manifold Aluminum Casting) Also sold in kit (816219A 4) Including Elbow.
  • 3
    22-32803 PLUG, Pipe (.375-18) Brass, DRAIN
    PLUG, Pipe (.375-18) Brass, DRAIN
  • 4
    23-72119 SLEEVE
    SLEEVE
  • 5
    16-8M0034454 STUD, EXHAUST MANIFOLD TO HEAD
    STUD, EXHAUST MANIFOLD TO HEAD
  • 6
    10-74727 SCREW, (.375-16 x 6), EXHAUST MANIFOLD TO HEAD (6")
    SCREW, (.375-16 x 6), EXHAUST MANIFOLD TO HEAD (6")
  • 7
    13-35048 LOCKWASHER, (.375), EXHAUST MANIFOLD
    LOCKWASHER, (.375), EXHAUST MANIFOLD
  • 8
    11-46335 NUT, EXHAUST MANIFOLD STUD
    NUT, EXHAUST MANIFOLD STUD
  • 9
    27-68715 GASKET, EXHAUST MANIFOLD TO HEAD
    GASKET, EXHAUST MANIFOLD TO HEAD
  • 10
    15995 SENDER, WATER TEMPERATURE
    SENDER, WATER TEMPERATURE
  • 11
    89659A3 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 12
    99155T2 THERMOSTAT
    THERMOSTAT
  • 13
    27-896561 GASKET, THERMOSTAT HOUSING TO EXHAUST MANIFOLD
    GASKET, THERMOSTAT HOUSING TO EXHAUST MANIFOLD
  • 14
    10-73657 SCREW, (.312-18 x 1.50), THERMOSTAT HOUSING
    SCREW, (.312-18 x 1.50), THERMOSTAT HOUSING
  • 15
    13-39107 LOCKWASHER, (.312-24), THERMOSTAT HOUSING SCREW
    LOCKWASHER, (.312-24), THERMOSTAT HOUSING SCREW
  • 16
    12-26825 WASHER, (.328 x .750 x .06), THERMOSTAT HOUSING SCREW
    WASHER, (.328 x .750 x .06), THERMOSTAT HOUSING SCREW
  • 17
    98562A6 ELBOW ASSEMBLY, Exhaust
    (Elbow Iron Casting) Also sold in kit (816219A 4) Including Manifold.
    ELBOW ASSEMBLY, Exhaust
    (Elbow Iron Casting) Also sold in kit (816219A 4) Including Manifold.
  • 19
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 20
    10-28642 SCREW, (#2 x 0.25), DRIVE
    SCREW, (#2 x 0.25), DRIVE
  • 21
    22-13234A1 BASE FILLER HOLE
    BASE FILLER HOLE
  • 22
    25-45257 O-RING, (1.489 x .070), FILLER BASE
    O-RING, (1.489 x .070), FILLER BASE
  • 23
    22-99498 FITTING (THREADED)
    FITTING (THREADED)
  • 24
    22-866725 FITTING, Straight, HOSE (W/POWER STEERING)
    FITTING, Straight, HOSE (W/POWER STEERING)
  • 25
    22-36305T ELBOW, (90 Degrees), HOSE (W/O POWER STEERING)
    ELBOW, (90 Degrees), HOSE (W/O POWER STEERING)
  • 26
    36-13130 CAP, Pressure - FILLER
    CAP, Pressure - FILLER
  • 27
    22-76170 ELBOW, RESERVIOR BY-PASS
    ELBOW, RESERVIOR BY-PASS
  • 28
    27-18272 GASKET, ELBOW AND RESERVIOR TO MANIFOLD
    GASKET, ELBOW AND RESERVIOR TO MANIFOLD
  • 29
    10-78259 SCREW, (4 Inches), ELBOW AND RESERVIOR TO MANIFOLD
    SCREW, (4 Inches), ELBOW AND RESERVIOR TO MANIFOLD
  • 31
    91987A1 BOTTLE, COOLANT RECOVERY
    BOTTLE, COOLANT RECOVERY
  • 32
    36-91989A1 CAP ASSEMBLY
    CAP ASSEMBLY
  • 33
    97864A2 BRACKET ASSEMBLY, BOTTLE
    BRACKET ASSEMBLY, BOTTLE
  • 34
    10-47461 SCREW, (.437-14 x 1.00), BOTTLE BRACKET
    SCREW, (.437-14 x 1.00), BOTTLE BRACKET
  • 35
    13-32993 LOCKWASHER, BOTTLE BRACKET SCREW
    LOCKWASHER, BOTTLE BRACKET SCREW
  • 36
    10-98261 SCREW, (.375-16 x .750), BOTTLE TO BRACKET
    SCREW, (.375-16 x .750), BOTTLE TO BRACKET
  • 37
    12-25909 WASHER, (.406 x .812 x .065), BOTTLE SCREW
    WASHER, (.406 x .812 x .065), BOTTLE SCREW
  • 38
    32-774572 HOSE, (48.00 Inches Bulk), COOLANT RECOVERY BOTTLE
    HOSE, (48.00 Inches Bulk), COOLANT RECOVERY BOTTLE
  • 39
    54-815504104 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 40
    27-71614 GASKET, FILLER CAP
    GASKET, FILLER CAP
  • -
    27-43186A1 GASKET SET
    GASKET SET
