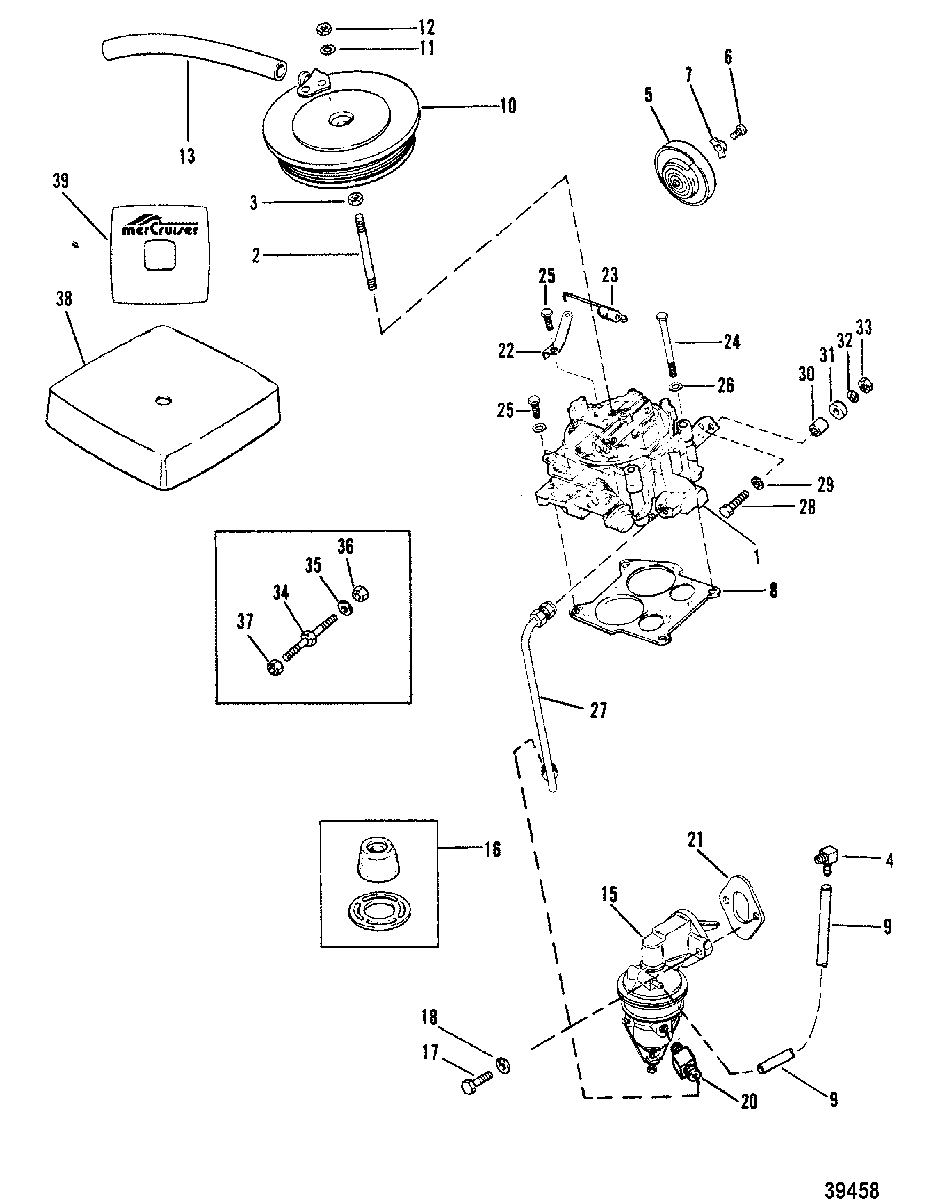

CARBURETOR AND FUEL PUMP(180-190-3.7L/LX) для Mercruiser - 170 (2 BBL.) MERCURY 224 I/L4 1985-1986 6916779 THRU 0B434940

  • №
    Артикул
    Название
  • 1
    1347-9142A2 CARBURETOR ASSEMBLY
    CARBURETOR ASSEMBLY
  • 2
    16-91842 STUD, FLAME ARRESTOR
    STUD, FLAME ARRESTOR
  • 3
    11-8267139 NUT, FLAME ARRESTOR STUD
    NUT, FLAME ARRESTOR STUD
  • 4
    22-54090 ELBOW, HOSE - CARBURETOR VENT
    ELBOW, HOSE - CARBURETOR VENT
  • 5
    70125A02 COVER, Choke-CARBURETOR
    COVER, Choke-CARBURETOR
  • 6
    10-33047 SCREW, COVER CLIP
    SCREW, COVER CLIP
  • 7
    54-33036 RETAINER, CARBURETOR COVER
    RETAINER, CARBURETOR COVER
  • 8
    27-524572 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 9
    32-7381567 HOSE, (34.00 Inches Bulk), VENT
    HOSE, (34.00 Inches Bulk), VENT
  • 10
    805298A1 FLAME ARRESTOR
    FLAME ARRESTOR
  • 11
    12-86400 WASHER, FLAME ARRESTOR
    WASHER, FLAME ARRESTOR
  • 12
    11-826709109 NUT, (.250-28), FLAME ARRESTOR STUD
    NUT, (.250-28), FLAME ARRESTOR STUD
  • 13
    32-62060 HOSE, Vent - FLAME ARRESTOR TO ROCKER COVER
    HOSE, Vent - FLAME ARRESTOR TO ROCKER COVER
  • 15
    8M0073435 PUMP ASSEMBLY, Fuel, Fuel
    PUMP ASSEMBLY, Fuel, Fuel
  • 16
    35-8M0046752 FILTER
    FILTER
  • 17
    10-31984 SCREW, (.312-18 x 1.375), FUEL PUMP
    SCREW, (.312-18 x 1.375), FUEL PUMP
  • 18
    13-39107 LOCKWASHER, (.312-24), FUEL PUMP SCREW
    LOCKWASHER, (.312-24), FUEL PUMP SCREW
  • 20
    22-42897 FITTING, STRAIGHT - FUEL
    FITTING, STRAIGHT - FUEL
  • 21
    27-8M0108647 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 22
    41659 ANCHOR, THROTTLE RETURN SPRING
    ANCHOR, THROTTLE RETURN SPRING
  • 23
    24-42350 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 24
    10-52743 SCREW, (.312-18 x 3.750)
    SCREW, (.312-18 x 3.750)
  • 25
    10-74824 SCREW, (.312-18 x 1.250), CARBURETOR TO WEDGE
    SCREW, (.312-18 x 1.250), CARBURETOR TO WEDGE
  • 26
    12-20084 WASHER, (.328 x .562 x .062), CARBURETOR SCREW
    WASHER, (.328 x .562 x .062), CARBURETOR SCREW
  • 27
    32-44520A1 LINE ASSEMBLY, Fuel, PUMP
    LINE ASSEMBLY, Fuel, PUMP
  • 28
    10-98509 SCREW, THROTTLE CABLE
    THROTTLE CABLE ATTACHES WITH SCREW
    SCREW, THROTTLE CABLE
    THROTTLE CABLE ATTACHES WITH SCREW
  • 29
    12-847883 WASHER, THROTTLE CABLE SCREW
    THROTTLE CABLE ATTACHES WITH SCREW
    WASHER, THROTTLE CABLE SCREW
    THROTTLE CABLE ATTACHES WITH SCREW
  • 30
    23-57938 BUSHING, THROTTLE CABLE SCREW
    THROTTLE CABLE ATTACHES WITH SCREW
    BUSHING, THROTTLE CABLE SCREW
    THROTTLE CABLE ATTACHES WITH SCREW
  • 31
    23-34948 SPACER, THROTTLE CABLE SCREW
    THROTTLE CABLE ATTACHES WITH SCREW
    SPACER, THROTTLE CABLE SCREW
    THROTTLE CABLE ATTACHES WITH SCREW
  • 32
    12-56681 WASHER, (.203 x .500 x .032)
    THROTTLE CABLE ATTACHES WITH SCREW
    WASHER, (.203 x .500 x .032)
    THROTTLE CABLE ATTACHES WITH SCREW
  • 33
    11-8267086 NUT, (#10-32), THROTTLE CABLE SCREW
    THROTTLE CABLE ATTACHES WITH SCREW
    NUT, (#10-32), THROTTLE CABLE SCREW
    THROTTLE CABLE ATTACHES WITH SCREW
  • 34
    16-8M0113178 STUD, (.250-28 x 2.00), THROTTLE CABLE
    THROTTLE CABLE ATTACHES WITH STUD
    STUD, (.250-28 x 2.00), THROTTLE CABLE
    THROTTLE CABLE ATTACHES WITH STUD
  • 35
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, THROTTLE CABLE STUD
    THROTTLE CABLE ATTACHES WITH STUD
    WASHER, (.281 x .500 x .060) Stainless Steel, THROTTLE CABLE STUD
    THROTTLE CABLE ATTACHES WITH STUD
  • 36
    11-8267089 NUT, (.250-28), THROTTLE CABLE STUD
    THROTTLE CABLE ATTACHES WITH STUD
    NUT, (.250-28), THROTTLE CABLE STUD
    THROTTLE CABLE ATTACHES WITH STUD
  • 37
    11-826709109 NUT, (.250-28), THROTTLE CABLE STUD
    THROTTLE CABLE ATTACHES WITH STUD
    NUT, (.250-28), THROTTLE CABLE STUD
    THROTTLE CABLE ATTACHES WITH STUD
  • 38
    17878A5 COVER, Carburetor - FLAME ARRESTOR-
    NEW DESIGN
    COVER, Carburetor - FLAME ARRESTOR-
    NEW DESIGN
  • 39
    37-1372354 DECAL, COVER (3.7L/LX)
    NEW DESIGN
    DECAL, COVER (3.7L/LX)
    NEW DESIGN
  • -
    27-43186A1 GASKET SET
    GASKET SET
