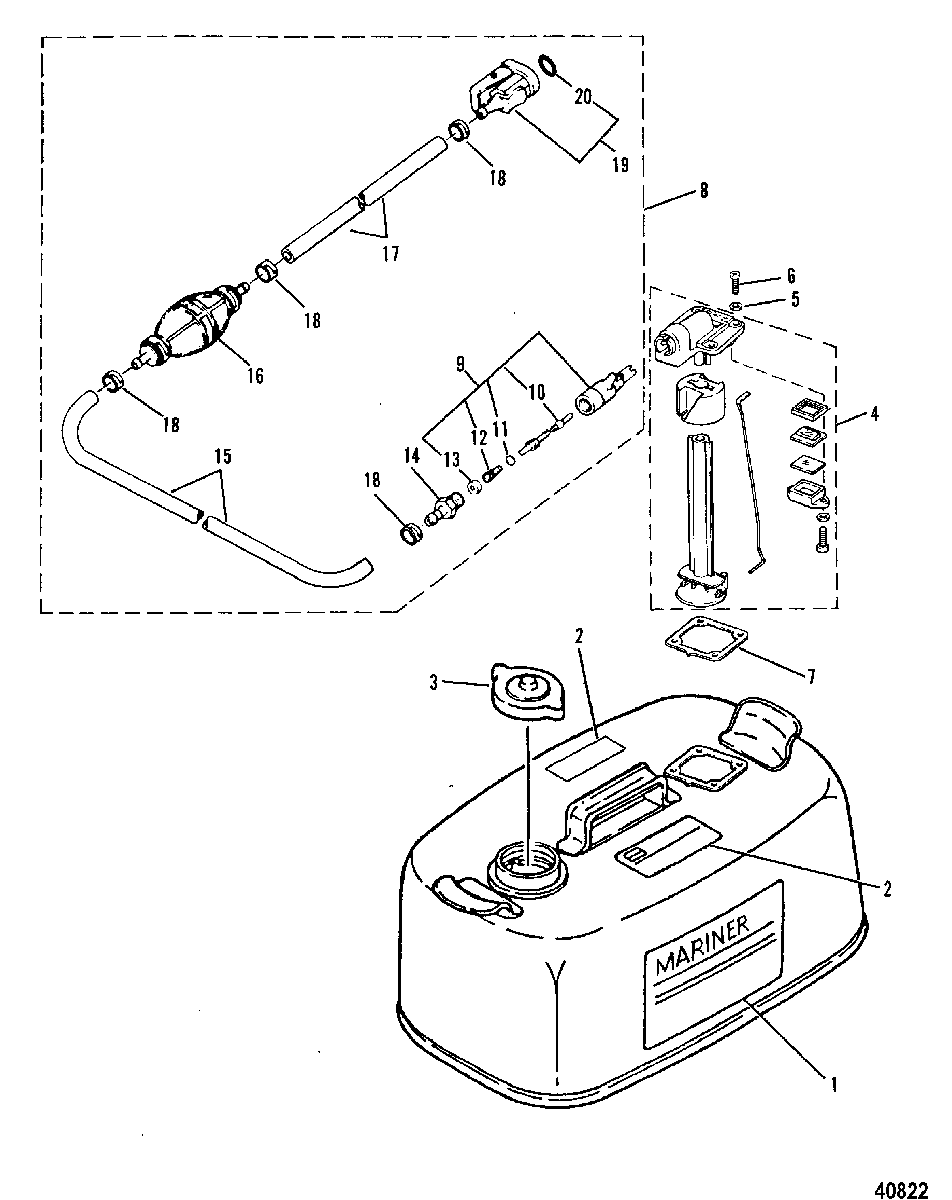

FUEL TANK AND FUEL LINE ASSEMBLY(ORIGINAL EQUIPMENT) для Mariner - W40 (W/MARATHON) 6F6-308308 & Up
-
№АртикулНазвание
-
137-14617M DECAL, SIDE (ENGLISH)DECAL, SIDE (ENGLISH)
-
137-95504M DECAL, SIDE (FRENCH)DECAL, SIDE (FRENCH)
-
237-95489M DECAL, TOP (ENGLISH)DECAL, TOP (ENGLISH)
-
237-95503M DECAL, TOP (FRENCH)DECAL, TOP (FRENCH)
-
336-18962M CAP, Fuel TankCAP, Fuel Tank
-
495499M METER ASSEMBLY, FuelMETER ASSEMBLY, Fuel
-
512-95501M SEALSEAL
-
610-95502M SCREWSCREW
-
727-95500M GASKETGASKET
-
832-877681Q8 LINE ASSEMBLY, Fuel (5/16" - 8MM - I.D. HOSE)LINE ASSEMBLY, Fuel (5/16" - 8MM - I.D. HOSE)
-
832-877681Q8 LINE ASSEMBLY, Fuel (1/4" - 6MM - I.D. HOSE)LINE ASSEMBLY, Fuel (1/4" - 6MM - I.D. HOSE)
-
930185Q3 BAYONET ASSEMBLY, FuelBAYONET ASSEMBLY, Fuel
-
1030185Q3 STEMSTEM
-
1125-16524 O-RINGO-RING
-
1224-30189 SPRINGSPRING
-
1330188 WASHERWASHER
-
1422-89771Q2 CONNECTOR, (.250-18) (5/16" - 8MM - I.D. HOSE)CONNECTOR, (.250-18) (5/16" - 8MM - I.D. HOSE)
-
1422-63187 FITTING, Barb (.250-18) (1/4" - 6MM - I.D. HOSE)FITTING, Barb (.250-18) (1/4" - 6MM - I.D. HOSE)
-
1532-16571M HOSE (5/16" - 8MM - I.D. HOSE)HOSE (5/16" - 8MM - I.D. HOSE)
-
1532-94727M HOSE (1/4" - 6MM - I.D. HOSE)HOSE (1/4" - 6MM - I.D. HOSE)
-
1613330Q07 BULB (5/16" - 8MM - I.D. HOSE)BULB (5/16" - 8MM - I.D. HOSE)
-
1689396Q01 BULB (1/4" - 6MM - I.D. HOSE)BULB (1/4" - 6MM - I.D. HOSE)
-
1732-16571M HOSE (5/16" - 8MM - I.D. HOSE)HOSE (5/16" - 8MM - I.D. HOSE)
-
1732-94727M HOSE (1/4" - 6MM - I.D. HOSE)HOSE (1/4" - 6MM - I.D. HOSE)
-
1854-16574M CLAMP (5/16" - 8MM - I.D. HOSE)CLAMP (5/16" - 8MM - I.D. HOSE)
-
1854-16725M CLAMP (1/4" - 6MM - I.D. HOSE)CLAMP (1/4" - 6MM - I.D. HOSE)
-
1922-13563Q3 FITTING ASSEMBLY, Fuel Line (5/16" - 8MM - I.D. HOSE)FITTING ASSEMBLY, Fuel Line (5/16" - 8MM - I.D. HOSE)
-
1922-14213Q CONNECTOR, Fuel (1/4" - 6MM - I.D. HOSE)CONNECTOR, Fuel (1/4" - 6MM - I.D. HOSE)
-
2025-82789M O-RING (1/4" - 6MM - I.D. HOSE)O-RING (1/4" - 6MM - I.D. HOSE)
-
-1259-812410A1 TANK ASSEMBLY, FuelTANK ASSEMBLY, Fuel
