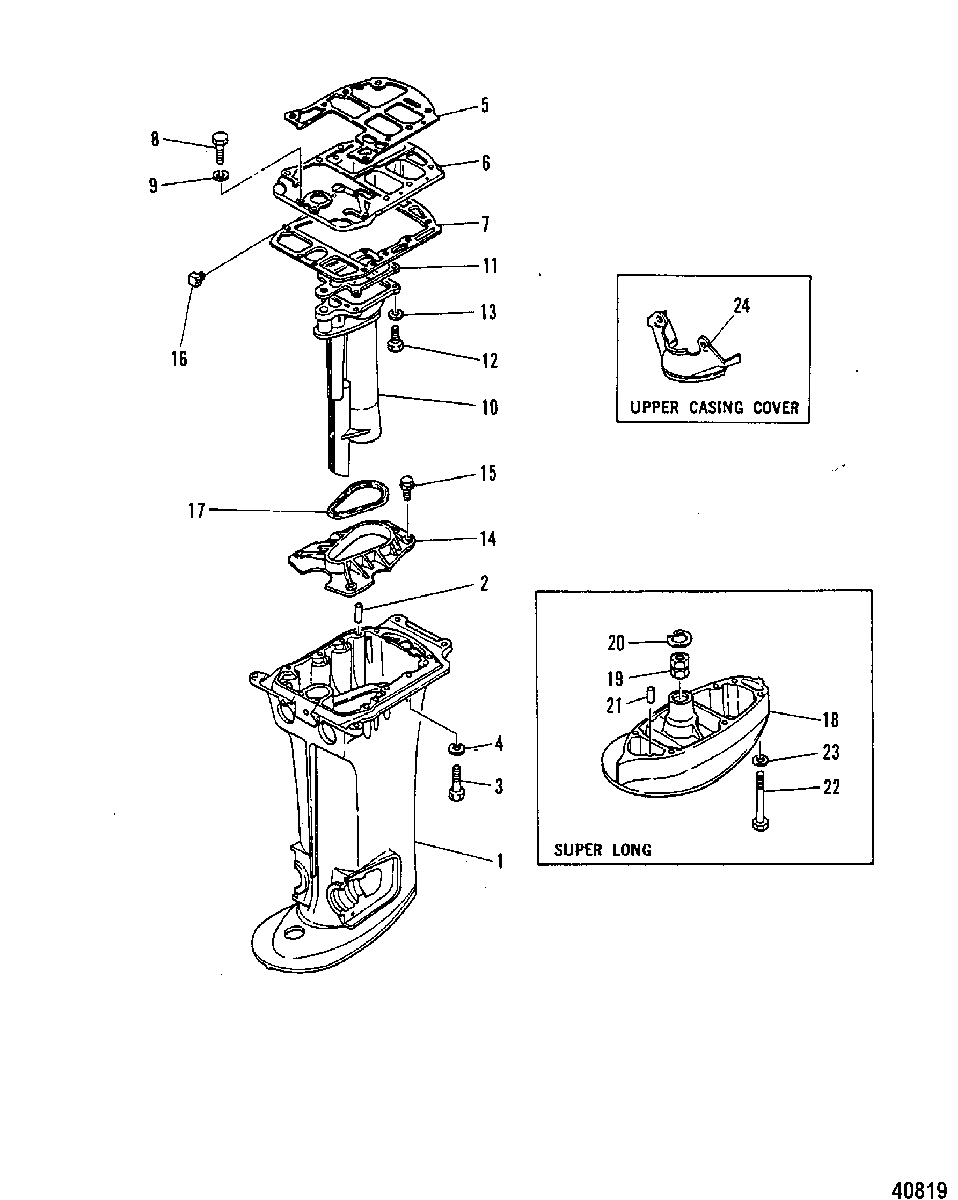

DRIVESHAFT HOUSING для Mariner - W40 (W/MARATHON) 6F6-308308 & Up

№

Артикул

Название
1

1587-8584M HOUSING, Driveshaft
(SHORT SHAFT)

HOUSING, Driveshaft
(SHORT SHAFT)
1

1587-8585M HOUSING, Driveshaft
(LONG/SUPER LONG SHAFT)

HOUSING, Driveshaft
(LONG/SUPER LONG SHAFT)
2

17-83379M PIN

PIN
3

10-97749M BOLT

BOLT
4

13-82215M LOCKWASHER

LOCKWASHER
5

27-11885 GASKET

GASKET
6

815114M PLATE, Exhaust
SN# M-015221/ML-327508 & Up

PLATE, Exhaust
SN# M-015221/ML-327508 & Up
6

815114M PLATE, Exhaust
SN# M-015220/ML-327507 & Below

PLATE, Exhaust
SN# M-015220/ML-327507 & Below
7

27-19175 GASKET
SN# M-015221/ML-327508 & Up

GASKET
SN# M-015221/ML-327508 & Up
7

27-19175 GASKET
SN# M-015220/ML-327507 & Below

GASKET
SN# M-015220/ML-327507 & Below
8

10-82405M BOLT

BOLT
9

13-82212M LOCKWASHER

LOCKWASHER
10

815115M MANIFOLD, Exhaust
SN# M-015221/ML-327508 & Up

MANIFOLD, Exhaust
SN# M-015221/ML-327508 & Up
10

815115M MANIFOLD
SN# M-015220/ML-327507 & Below

MANIFOLD
SN# M-015220/ML-327507 & Below
11

27-83383M GASKET

GASKET
12

10-84058M BOLT, (M6 x 20)

BOLT, (M6 x 20)
13

13-82212M LOCKWASHER

LOCKWASHER
14

815116M PLATE

PLATE
15

10-82476M BOLT

BOLT
16

22-11888M ELBOW

ELBOW
17

83384M SEAL

SEAL
18

83891M EXTENSION

EXTENSION
19

23-83892M BUSHING, SUPER LONG SHAFT

BUSHING, SUPER LONG SHAFT
20

53-83758M RING, Snap, SUPER LONG SHAFT

RING, Snap, SUPER LONG SHAFT
21

17-82364M PIN, Dowel, SUPER LONG SHAFT

PIN, Dowel, SUPER LONG SHAFT
22

10-82472M BOLT, SUPER LONG SHAFT

BOLT, SUPER LONG SHAFT
23

13-82215M LOCKWASHER, SUPER LONG SHAFT

LOCKWASHER, SUPER LONG SHAFT
24

92617M COVER (SHORT)

COVER (SHORT)
24

92618M COVER (LONG)

COVER (LONG)
-

27-11764M GASKET SET, Powerhead

GASKET SET, Powerhead
-

27-99982M GASKET SET, Lower Unit

GASKET SET, Lower Unit
