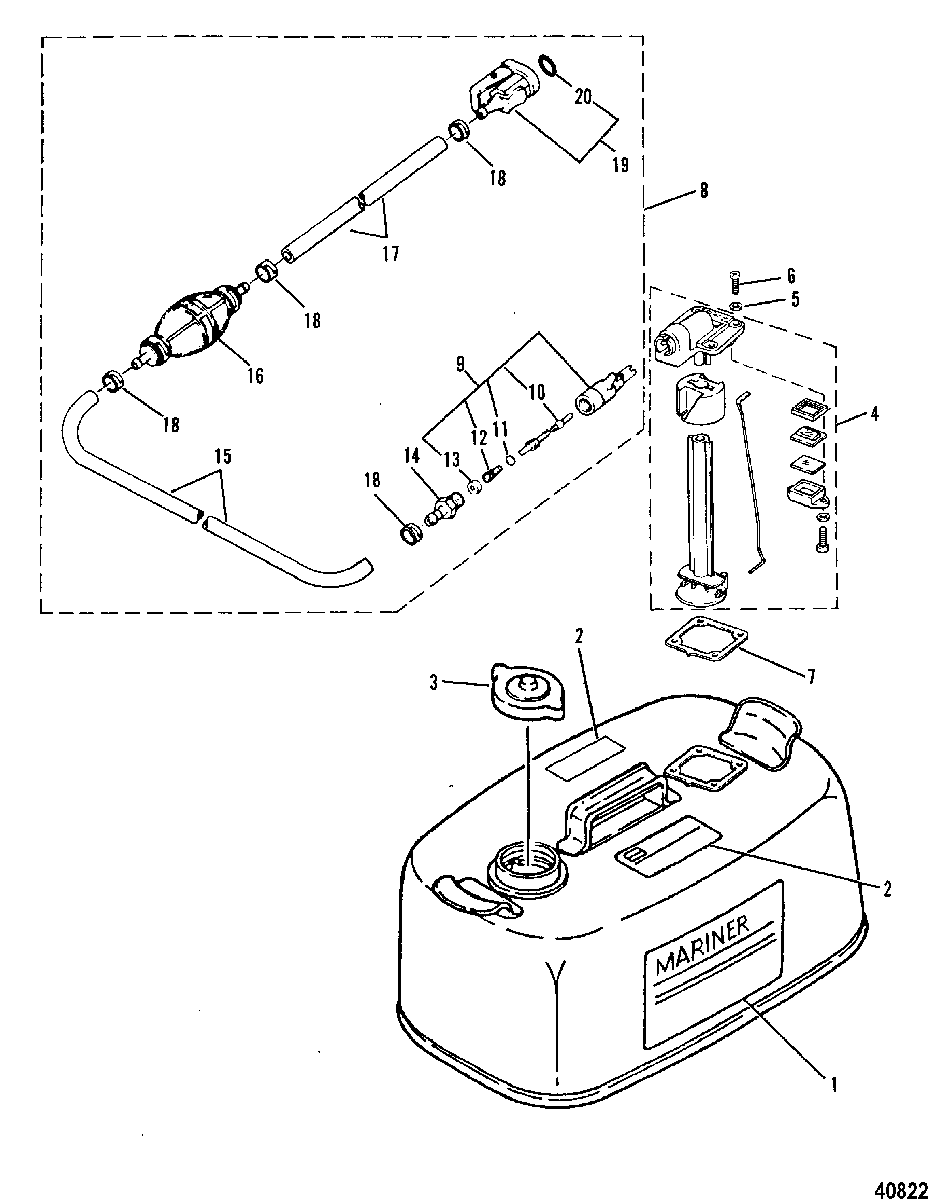

FUEL TANK AND FUEL LINE ASSEMBLY(ORIGINAL EQUIPMENT) для Mariner - W40 (W/MARATHON) 6F6-005206 & Up

  • №
    Артикул
    Название
  • 1
    37-14617M DECAL, SIDE (ENGLISH)
    DECAL, SIDE (ENGLISH)
  • 1
    37-95504M DECAL, SIDE (FRENCH)
    DECAL, SIDE (FRENCH)
  • 2
    37-95489M DECAL, TOP (ENGLISH)
    DECAL, TOP (ENGLISH)
  • 2
    37-95503M DECAL, TOP (FRENCH)
    DECAL, TOP (FRENCH)
  • 3
    36-18962M CAP, Fuel Tank
    CAP, Fuel Tank
  • 4
    95499M METER ASSEMBLY, Fuel
    METER ASSEMBLY, Fuel
  • 5
    12-95501M SEAL
    SEAL
  • 6
    10-95502M SCREW
    SCREW
  • 7
    27-95500M GASKET
    GASKET
  • 8
    32-877681Q8 LINE ASSEMBLY, Fuel (5/16" - 8MM - I.D. HOSE)
    LINE ASSEMBLY, Fuel (5/16" - 8MM - I.D. HOSE)
  • 8
    32-877681Q8 LINE ASSEMBLY, Fuel (1/4" - 6MM - I.D. HOSE)
    LINE ASSEMBLY, Fuel (1/4" - 6MM - I.D. HOSE)
  • 9
    30185Q3 BAYONET ASSEMBLY, Fuel
    BAYONET ASSEMBLY, Fuel
  • 10
    30185Q3 STEM
    STEM
  • 11
    25-16524 O-RING
    O-RING
  • 12
    24-30189 SPRING
    SPRING
  • 13
    30188 WASHER
    WASHER
  • 14
    22-89771Q2 CONNECTOR, (.250-18) (5/16" - 8MM - I.D. HOSE)
    CONNECTOR, (.250-18) (5/16" - 8MM - I.D. HOSE)
  • 14
    22-63187 FITTING, Barb (.250-18) (1/4" - 6MM - I.D. HOSE)
    FITTING, Barb (.250-18) (1/4" - 6MM - I.D. HOSE)
  • 15
    32-16571M HOSE (5/16" - 8MM - I.D. HOSE)
    HOSE (5/16" - 8MM - I.D. HOSE)
  • 15
    32-94727M HOSE (1/4" - 6MM - I.D. HOSE)
    HOSE (1/4" - 6MM - I.D. HOSE)
  • 16
    13330Q07 BULB (5/16" - 8MM - I.D. HOSE)
    BULB (5/16" - 8MM - I.D. HOSE)
  • 16
    89396Q01 BULB (1/4" - 6MM - I.D. HOSE)
    BULB (1/4" - 6MM - I.D. HOSE)
  • 17
    32-16571M HOSE (5/16" - 8MM - I.D. HOSE)
    HOSE (5/16" - 8MM - I.D. HOSE)
  • 17
    32-94727M HOSE (1/4" - 6MM - I.D. HOSE)
    HOSE (1/4" - 6MM - I.D. HOSE)
  • 18
    54-16574M CLAMP (5/16" - 8MM - I.D. HOSE)
    CLAMP (5/16" - 8MM - I.D. HOSE)
  • 18
    54-16725M CLAMP (1/4" - 6MM - I.D. HOSE)
    CLAMP (1/4" - 6MM - I.D. HOSE)
  • 19
    22-13563Q3 FITTING ASSEMBLY, Fuel Line (5/16" - 8MM - I.D. HOSE)
    FITTING ASSEMBLY, Fuel Line (5/16" - 8MM - I.D. HOSE)
  • 19
    22-14213Q CONNECTOR, Fuel (1/4" - 6MM - I.D. HOSE)
    CONNECTOR, Fuel (1/4" - 6MM - I.D. HOSE)
  • 20
    25-82789M O-RING (1/4" - 6MM - I.D. HOSE)
    O-RING (1/4" - 6MM - I.D. HOSE)
  • -
    1259-812410A1 TANK ASSEMBLY, Fuel
    TANK ASSEMBLY, Fuel
