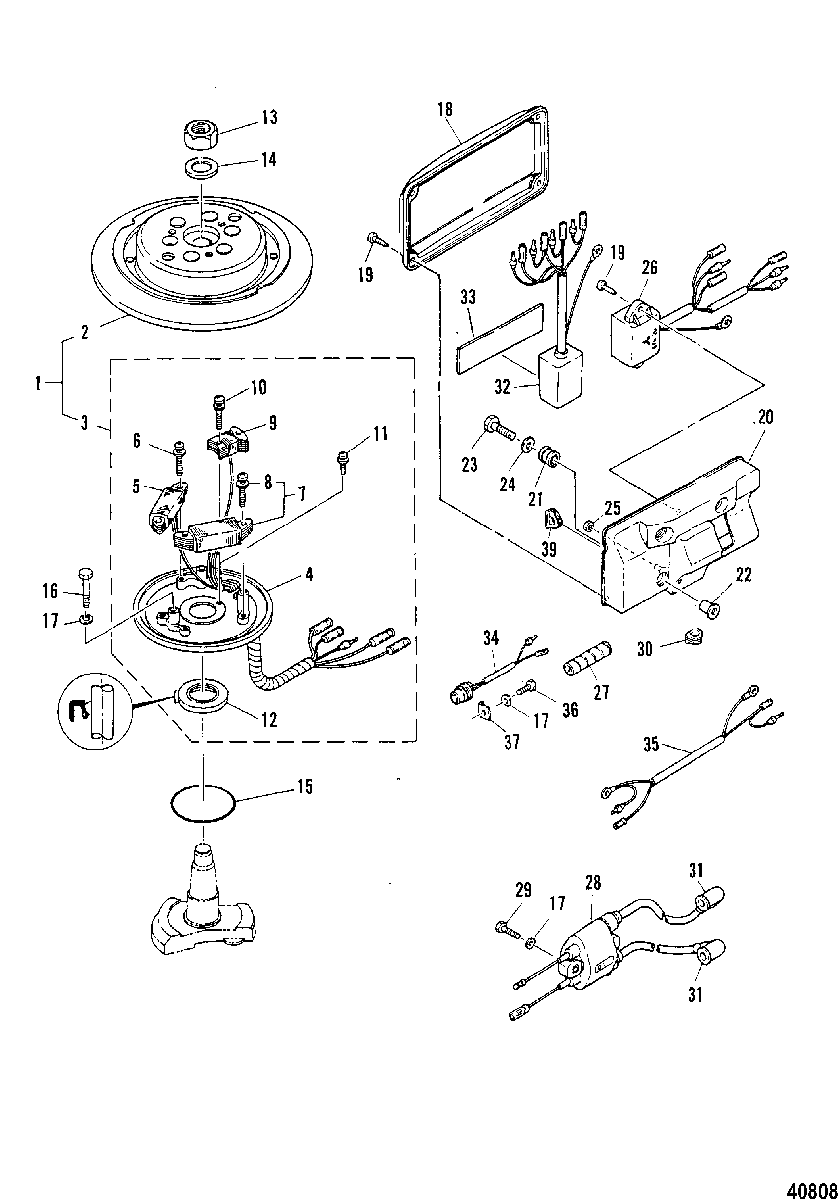

C.D.I. MAGNETO для Mariner - W40 (W/MARATHON) 6F6-005206 & Up

  • №
    Артикул
    Название
  • 1
    253-9322M MAGNETO
    SN# M-029924/ML-365385 & Below
    MAGNETO
    SN# M-029924/ML-365385 & Below
  • 2
    253-9323M ROTOR
    SN# M-029924/ML-365385 & Below
    ROTOR
    SN# M-029924/ML-365385 & Below
  • 2
    253-827133M ROTOR
    SN# M-029925/ML-365386 & Up
    ROTOR
    SN# M-029925/ML-365386 & Up
  • 3
    11724M BASE ASSEMBLY
    SN# M-029924/ML-365385 & Below
    BASE ASSEMBLY
    SN# M-029924/ML-365385 & Below
  • 3
    827134M BASE ASSEMBLY
    SN# M-029925/ML-365386 & Up
    BASE ASSEMBLY
    SN# M-029925/ML-365386 & Up
  • 4
    11726M MAGNETO BASE
    SN# M-029924/ML-365385 & Below
    MAGNETO BASE
    SN# M-029924/ML-365385 & Below
  • 4
    84-827135M LEAD WIRE
    SN# M-029925/ML-365386 & Up
    LEAD WIRE
    SN# M-029925/ML-365386 & Up
  • 5
    11727T COIL ASSEMBLY, Charge
    SN# M-029924/ML-365385 & Below
    COIL ASSEMBLY, Charge
    SN# M-029924/ML-365385 & Below
  • 5
    827136M COIL ASSEMBLY, Charge
    SN# M-029925/ML-365386 & Up
    COIL ASSEMBLY, Charge
    SN# M-029925/ML-365386 & Up
  • 6
    10-97803M SCREW
    SCREW
  • 7
    11728M COIL ASSEMBLY, Lighting
    SN# M-029924/ML-365385 & Below
    COIL ASSEMBLY, Lighting
    SN# M-029924/ML-365385 & Below
  • 7
    827137M COIL ASSEMBLY, Lighting
    SN# M-029925/ML-365386 & Up
    COIL ASSEMBLY, Lighting
    SN# M-029925/ML-365386 & Up
  • 8
    10-97803M SCREW
    SCREW
  • 9
    11729M COIL ASSEMBLY, Pulser
    SN# M-029924/ML-365385 & Below
    COIL ASSEMBLY, Pulser
    SN# M-029924/ML-365385 & Below
  • 9
    827138M COIL ASSEMBLY, Pulser
    SN# M-029925/ML-365386 & Up
    COIL ASSEMBLY, Pulser
    SN# M-029925/ML-365386 & Up
  • 10
    10-811177M SCREW
    SN# M-029924/ML-365385 & Below
    SCREW
    SN# M-029924/ML-365385 & Below
  • 10
    10-811177M SCREW
    SN# M-029925/ML-365386 & Up
    SCREW
    SN# M-029925/ML-365386 & Up
  • 11
    10-91699M SCREW
    SCREW
  • 12
    26-11731M SEAL, Oil
    SEAL, Oil
  • 13
    11-893789 NUT
    NUT
  • 14
    12-893762 WASHER
    WASHER
  • 15
    25-11732M O-RING
    O-RING
  • 16
    10-827043M BOLT
    BOLT
  • 17
    12-82214M WASHER
    WASHER
  • 18
    11733M COVER
    COVER
  • 19
    10-95187M SCREW
    SCREW
  • 20
    11734M BRACKET
    BRACKET
  • 21
    25-11735M GROMMET
    GROMMET
  • 22
    23-11736M BUSHING
    BUSHING
  • 23
    10-82441M BOLT
    BOLT
  • 24
    12-82217M WASHER
    WASHER
  • 25
    11-82389M NUT
    NUT
  • 26
    11737T SWITCHBOX ASSEMBLY
    SWITCHBOX ASSEMBLY
  • 27
    98915M INSULATOR WRAP
    INSULATOR WRAP
  • 28
    95188T COIL ASSEMBLY, Ignition
    COIL ASSEMBLY, Ignition
  • 29
    10-82405M BOLT
    BOLT
  • 30
    25-95184M GROMMET
    GROMMET
  • 31
    85-815119M PROTECTER (NOISE SUPPRESSOR)
    PROTECTER (NOISE SUPPRESSOR)
  • 31
    85-63709A1 CAP ASSEMBLY, Spark Plug
    CAP ASSEMBLY, Spark Plug
  • 32
    11739M CONTROL ASSEMBLY, Ignition
    CONTROL ASSEMBLY, Ignition
  • 33
    11740M PLATE
    PLATE
  • 34
    11741M THERM SWITCH ASSEMBLY
    THERM SWITCH ASSEMBLY
  • 35
    84-11742M GROUND WIRE
    GROUND WIRE
  • 36
    10-826957M BOLT
    BOLT
  • 37
    11743M PLATE
    PLATE
  • -
    27-11764M GASKET SET, Powerhead
    GASKET SET, Powerhead
