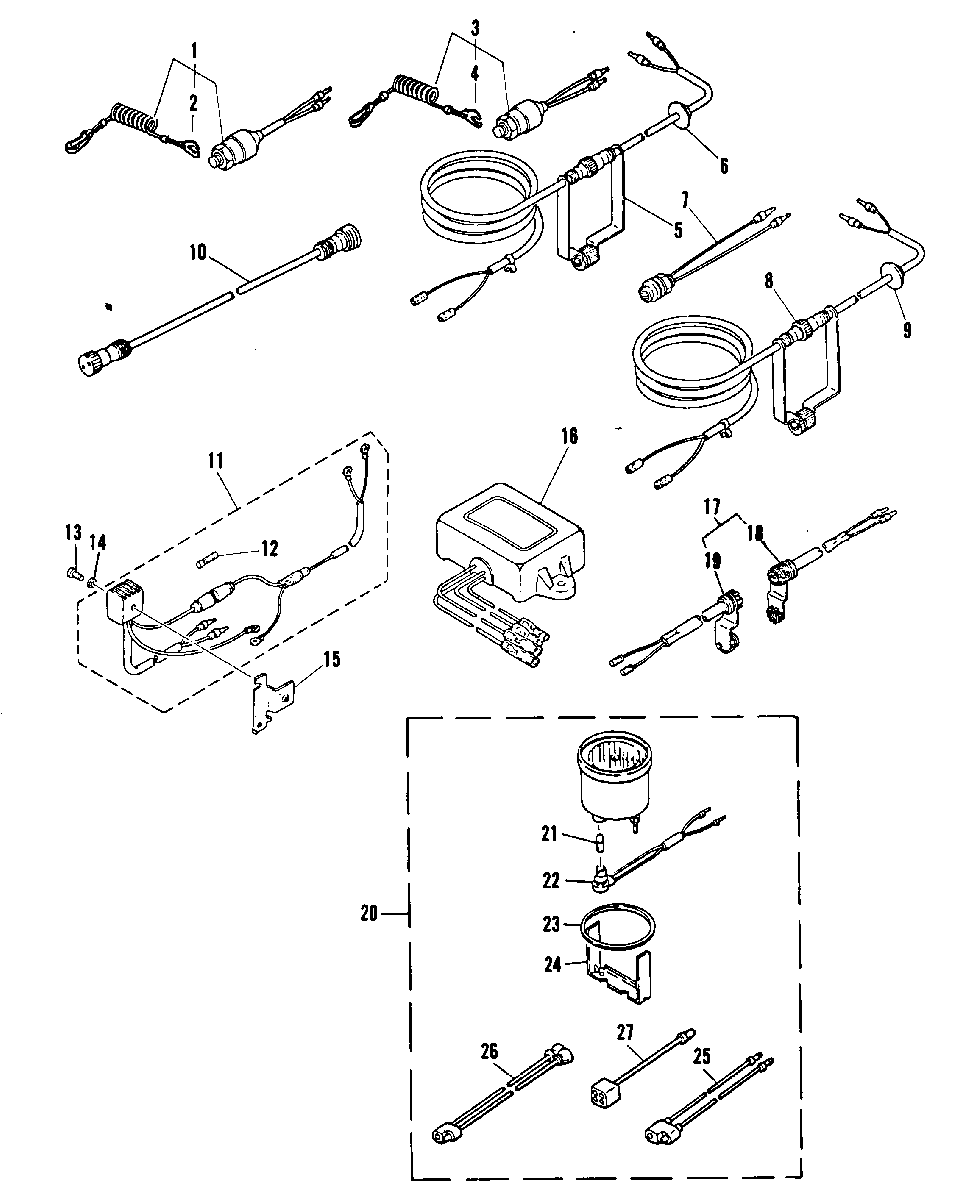

OPTIONAL PARTS для Mariner - W30 (W/MARATHON) 689-B000101 AND UP

  • №
    Артикул
    Название
  • 1
    87-97757M KILL SWITCH ASS'Y
    SERIAL 00003181-09999999
    KILL SWITCH ASS'Y
    SERIAL 00003181-09999999
  • 1
    87-97774M KILL SWITCH ASS'Y
    SERIAL 00001369-00003180
    KILL SWITCH ASS'Y
    SERIAL 00001369-00003180
  • 1
    87-97765M KILL SWITCH ASS'Y
    SERIAL 00000000-00001395
    KILL SWITCH ASS'Y
    SERIAL 00000000-00001395
  • 2
    97756M STOPPER
    STOPPER
  • 3
    87-97765M KILL SWITCH ASS'Y (5M)
    SERIAL 00001396-09999999
    KILL SWITCH ASS'Y (5M)
    SERIAL 00001396-09999999
  • 3
    87-97765M KILL SWITCH ASS'Y (5M)
    SERIAL 00000000-00001395
    KILL SWITCH ASS'Y (5M)
    SERIAL 00000000-00001395
  • 4
    97756M STOPPER
    STOPPER
  • 5
    84964M EXTENSION (5M)
    SERIAL 00003181-09999999
    EXTENSION (5M)
    SERIAL 00003181-09999999
  • 5
    92613M EXTENSION (5M)
    SERIAL 00000000-00003180
    EXTENSION (5M)
    SERIAL 00000000-00003180
  • 6
    25-84967M FROMMET
    SERIAL 00003181-09999999
    FROMMET
    SERIAL 00003181-09999999
  • 6
    25-826981M GROMMET
    SERIAL 00000000-00003180
    GROMMET
    SERIAL 00000000-00003180
  • 7
    87-97754M STOP SWITCH ASS'Y (5M)
    SERIAL 00003181-09999999
    STOP SWITCH ASS'Y (5M)
    SERIAL 00003181-09999999
  • 7
    87-97754M STOP SWITCH ASS'Y (5M)
    SERIAL 00000000-00003180
    STOP SWITCH ASS'Y (5M)
    SERIAL 00000000-00003180
  • 8
    84964M EXTENSION (5M)
    SERIAL 00003181-09999999
    EXTENSION (5M)
    SERIAL 00003181-09999999
  • 8
    92613M EXTENSION (5M)
    SERIAL 00000000-00003180
    EXTENSION (5M)
    SERIAL 00000000-00003180
  • 9
    25-84967M GROMMET
    SERIAL 00003181-09999999
    GROMMET
    SERIAL 00003181-09999999
  • 9
    25-826981M GROMMET
    SERIAL 00000000-00003180
    GROMMET
    SERIAL 00000000-00003180
  • 10
    84959M EXTENSION (2M) (FOR STOP SWITCH)
    EXTENSION (2M) (FOR STOP SWITCH)
  • 11
    83-8M0060278 RECTIFIER ASS'Y
    SERIAL 00000000-00003749
    RECTIFIER ASS'Y
    SERIAL 00000000-00003749
  • 12
    88-81522M FUSE (20A)
    SERIAL 00000000-00003749
    FUSE (20A)
    SERIAL 00000000-00003749
  • 13
    10-83108M SCREW
    SERIAL 00000000-00003749
    SCREW
    SERIAL 00000000-00003749
  • 14
    12-82211M WASHER
    SERIAL 00000000-00003749
    WASHER
    SERIAL 00000000-00003749
  • 15
    92603M PLATE
    SERIAL 00000000-00003749
    PLATE
    SERIAL 00000000-00003749
  • 16
    84125T VOLTAGE REGULATOR ASS'Y
    VOLTAGE REGULATOR ASS'Y
  • 17
    84-84124M CONNECTOR ASS'Y
    SERIAL 00003750-09999999
    CONNECTOR ASS'Y
    SERIAL 00003750-09999999
  • 18
    84-99051M CONNECTOR
    SERIAL 00003750-09999999
    CONNECTOR
    SERIAL 00003750-09999999
  • 19
    84-99052M CONNECTOR
    SERIAL 00003750-09999999
    CONNECTOR
    SERIAL 00003750-09999999
  • 20
    79-43984A1 TACHOMETER KIT
    SERIAL 00003750-09999999
    TACHOMETER KIT
    SERIAL 00003750-09999999
  • 21
    88-99055M BULT (1.2V - 1.7W)
    SERIAL 00003750-09999999
    BULT (1.2V - 1.7W)
    SERIAL 00003750-09999999
  • 22
    99056A1 SOCKET
    SERIAL 00003750-09999999
    SOCKET
    SERIAL 00003750-09999999
  • 23
    99057M DAMPER
    SERIAL 00003750-09999999
    DAMPER
    SERIAL 00003750-09999999
  • 24
    99058M PLATE
    SERIAL 00003750-09999999
    PLATE
    SERIAL 00003750-09999999
  • 25
    84-84352M WIRE, LEAD
    SERIAL 00003750-09999999
    WIRE, LEAD
    SERIAL 00003750-09999999
  • 26
    84-84353M CONNECTOR
    SERIAL 00003750-09999999
    CONNECTOR
    SERIAL 00003750-09999999
  • 27
    84-99059M WIRE, LEAD
    SERIAL 00003750-09999999
    WIRE, LEAD
    SERIAL 00003750-09999999
