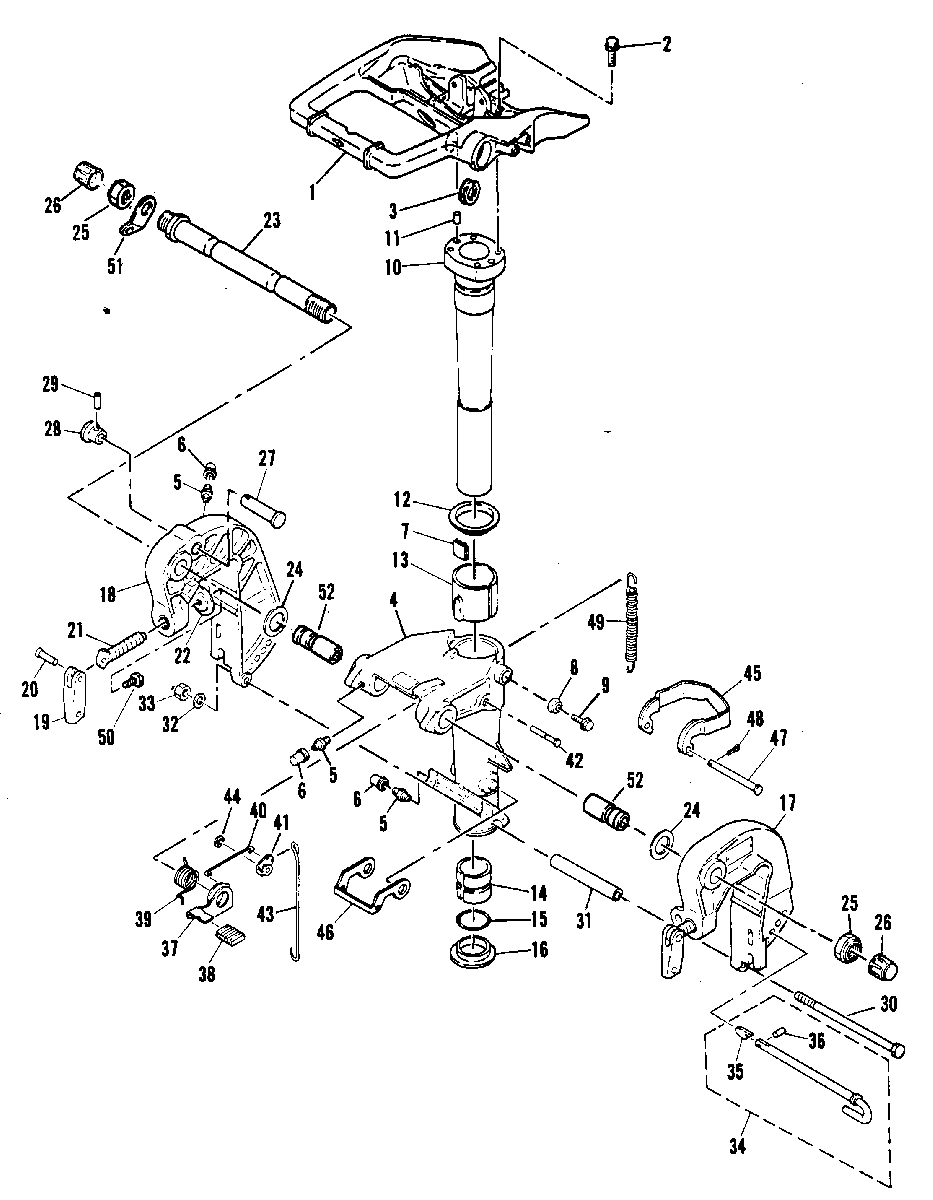

CLAMP AND SWIVEL BRACKET/REVERSE LOCK для Mariner - W30 (W/MARATHON) 689-B000101 AND UP

  • №
    Артикул
    Название
  • 1
    19113M BRACKET, STEERING
    SERIAL 00004906-09999999
    BRACKET, STEERING
    SERIAL 00004906-09999999
  • 1
    19113M BRACKET, STEERING
    SERIAL 00000000-00004905
    BRACKET, STEERING
    SERIAL 00000000-00004905
  • 2
    10-84830M BOLT
    BOLT
  • 3
    25-82070M GROMMET
    GROMMET
  • 4
    1485-9792M BRACKET, SWIVEL
    SERIAL 00004906-09999999
    BRACKET, SWIVEL
    SERIAL 00004906-09999999
  • 4
    1485-9246M BRACKET, SWIVEL
    SERIAL 00000000-00004905
    BRACKET, SWIVEL
    SERIAL 00000000-00004905
  • 5
    22-82369M FITTING, GREASE
    FITTING, GREASE
  • 6
    81439M CAP
    CAP
  • 7
    80633M PLATE, FRICTION
    PLATE, FRICTION
  • 8
    26-91637M SEAL
    SEAL
  • 9
    10-96382M BOLT
    BOLT
  • 10
    84833M SHAFT
    SHAFT
  • 11
    17-82368M PIN
    PIN
  • 12
    12-81873M WASHER
    WASHER
  • 13
    23-81964M BUSHING
    BUSHING
  • 14
    23-81959M BUSHING
    BUSHING
  • 15
    25-82274M O-RING
    O-RING
  • 16
    23-81961M BUSHING
    BUSHING
  • 17
    1484-9797M CLAMP BRACKET, PORT
    SERIAL 00004906-09999999
    CLAMP BRACKET, PORT
    SERIAL 00004906-09999999
  • 17
    1484-9797M CLAMP BRACKET, PORT
    SERIAL 00000000-00004905
    CLAMP BRACKET, PORT
    SERIAL 00000000-00004905
  • 18
    1484-9798M CLAMP BRACKET, STARBOARD
    SERIAL 00004906-09999999
    CLAMP BRACKET, STARBOARD
    SERIAL 00004906-09999999
  • 18
    1484-8246M CLAMP BRACKET, STARBOARD
    SERIAL 00000000-00004905
    CLAMP BRACKET, STARBOARD
    SERIAL 00000000-00004905
  • 19
    809959M HANDLE
    HANDLE
  • 20
    17-81888M PIN
    PIN
  • 21
    10-43098M SCREW
    SERIAL 00003181-09999999
    SCREW
    SERIAL 00003181-09999999
  • 21
    10-81756M SCREW
    SERIAL 00000000-00003180
    SCREW
    SERIAL 00000000-00003180
  • 22
    12-43099M PAD
    SERIAL 00003181-09999999
    PAD
    SERIAL 00003181-09999999
  • 22
    12-80638M PAD
    SERIAL 00000000-00003180
    PAD
    SERIAL 00000000-00003180
  • 23
    10-18974M BOLT
    SERIAL 00004906-09999999
    BOLT
    SERIAL 00004906-09999999
  • 23
    10-91639M BOLT
    SERIAL 00000000-00004905
    BOLT
    SERIAL 00000000-00004905
  • 24
    12-81836M WASHER
    WASHER
  • 25
    11-879172252 NUT
    NUT
  • 26
    811914M CAP
    CAP
  • 27
    84835M SHAFT
    SHAFT
  • 28
    95650M KNOB
    KNOB
  • 29
    17-82148M PIN
    PIN
  • 30
    10-82924M BOLT
    BOLT
  • 31
    23-19108M SPACER
    SERIAL 00004906-09999999
    SPACER
    SERIAL 00004906-09999999
  • 31
    23-19108M SPACER
    SERIAL 00000000-00004905
    SPACER
    SERIAL 00000000-00004905
  • 32
    12-82217M WASHER
    WASHER
  • 33
    11-82382M NUT
    NUT
  • 34
    17-94569M TILT ROD ASS'Y
    TILT ROD ASS'Y
  • 35
    82857M STOPPER PLATE
    STOPPER PLATE
  • 36
    17-82144M PIN
    PIN
  • 37
    91640M LEVER
    LEVER
  • 38
    91641M COVER
    COVER
  • 39
    24-91642M SPRING
    SPRING
  • 40
    91643M ROD
    ROD
  • 41
    80648M LEVER
    LEVER
  • 42
    17-19109M PIN
    SERIAL 00004906-09999999
    PIN
    SERIAL 00004906-09999999
  • 42
    17-19109M PIN
    SERIAL 00000000-00004905
    PIN
    SERIAL 00000000-00004905
  • 43
    80645M ROD
    ROD
  • 44
    53-82330M SNAP RING
    SNAP RING
  • 45
    84837M PLATE
    PLATE
  • 46
    80643M PLATE
    PLATE
  • 47
    17-81882M PIN
    PIN
  • 48
    18-82125M PIN, COTTER
    PIN, COTTER
  • 49
    24-19110M SPRING
    SERIAL 00004906-09999999
    SPRING
    SERIAL 00004906-09999999
  • 49
    24-19110M SPRING
    SERIAL 00000000-00004905
    SPRING
    SERIAL 00000000-00004905
  • 50
    10-43097M BOLT ( ) AND ABOVE
    SERIAL 00003750-09999999
    BOLT ( ) AND ABOVE
    SERIAL 00003750-09999999
  • 51
    19111M PLATE, CLAMP BRACKET
    SERIAL 00004906-09999999
    PLATE, CLAMP BRACKET
    SERIAL 00004906-09999999
  • 52
    23-19112M BUSHING
    SERIAL 00004906-09999999
    BUSHING
    SERIAL 00004906-09999999
