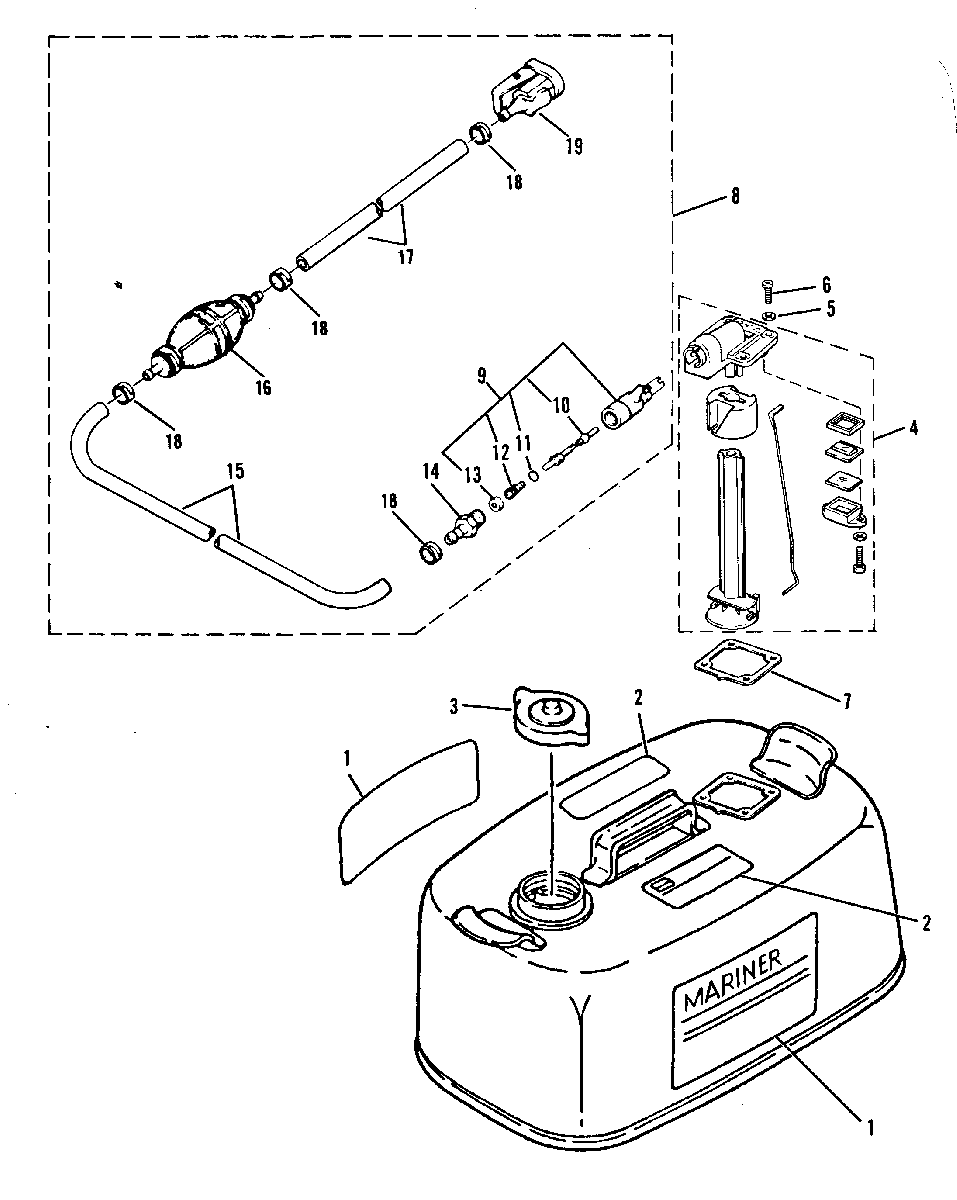

FUEL TANK AND FUEL LINE ASSEMBLY (ORIGINAL EQUIPMENT) для Mariner - W15 684-801496 AND UP
-
№АртикулНазвание
-
137-14617M DECAL, SIDE (ENGLISH)DECAL, SIDE (ENGLISH)
-
137-95504M DECAL, SIDE (FRENCH)DECAL, SIDE (FRENCH)
-
237-95489M DECAL, TOP (ENGLISH)DECAL, TOP (ENGLISH)
-
237-95503M DECAL, TOP (FRENCH)DECAL, TOP (FRENCH)
-
336-18962M FUEL TANK CAPFUEL TANK CAP
-
495499M FUEL METER ASSEMBLYFUEL METER ASSEMBLY
-
512-95501M SEALSEAL
-
610-95502M SCREWSCREW
-
727-95500M GASKETGASKET
-
832-877681Q8 FUEL LINE ASSEMBLYFUEL LINE ASSEMBLY
-
930185Q3 BAYONET BODY ASSEMBLYBAYONET BODY ASSEMBLY
-
1030185Q3 STEMSTEM
-
1125-16524 "O"-RING"O"-RING
-
1224-30189 SPRINGSPRING
-
1330188 CAP WASHERCAP WASHER
-
1422-89771Q2 FITTINGFITTING
-
1532-16571M HOSEHOSE
-
1613330Q07 PRIMER BULBPRIMER BULB
-
1732-16571M HOSEHOSE
-
1854-16574M CLAMPCLAMP
-
1922-13563Q3 FUEL CONNECTORFUEL CONNECTOR
