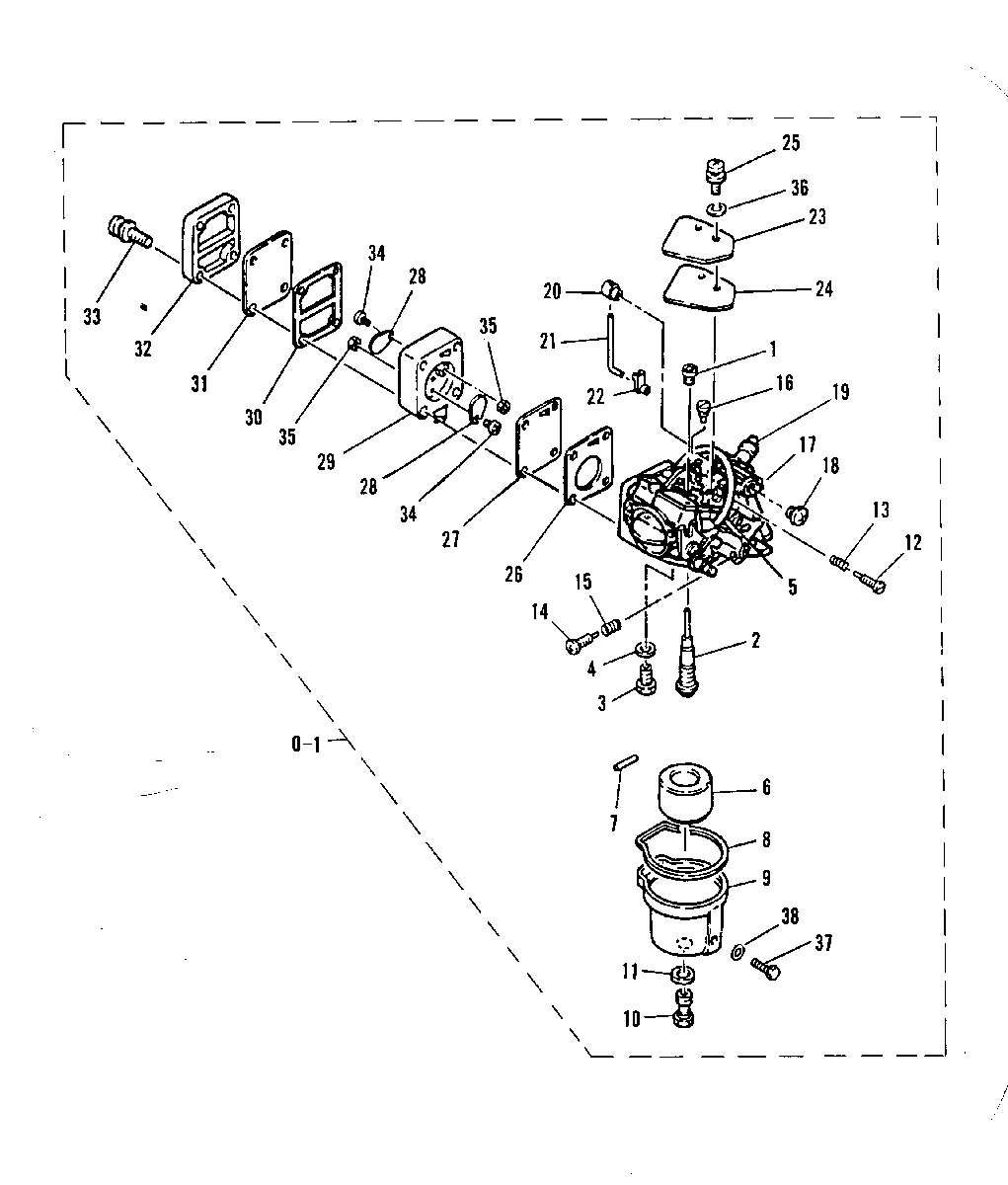

CARBURETOR/FUEL PUMP для Mariner - W15 684-801496 AND UP
-
№АртикулНазвание
-
0-11383-9513T CARBURETOR ASSEMBLYCARBURETOR ASSEMBLY
-
195494M PILOT JET (#56)PILOT JET (#56)
-
241861M MAIN NOZZLEMAIN NOZZLE
-
314216M VALVE SEAT ASSEMBLYVALVE SEAT ASSEMBLY
-
412-80261M WASHERWASHER
-
514281M TUBETUBE
-
614180M FLOATFLOAT
-
717-80451M PINPIN
-
827-43115M GASKETGASKET
-
914217M FLOAT BOWLFLOAT BOWL
-
1095495M MAIN JET (#136)MAIN JET (#136)
-
1127-80267 GASKETGASKET
-
1210-80573M IDLE MIXTURE SCREWIDLE MIXTURE SCREW
-
1324-814460M SPRINGSPRING
-
1410-83509M IDLE SPEED SCREWIDLE SPEED SCREW
-
1524-814460M SPRINGSPRING
-
1610-80434M SCREWSCREW
-
1784254M THROTTLE ARM ASSEMBLYTHROTTLE ARM ASSEMBLY
-
1810-80091M SCREWSCREW
-
1984255M COLLARCOLLAR
-
2083300M RETAINERRETAINER
-
2184256M THROTTLE RODTHROTTLE ROD
-
2216333 RETAINERRETAINER
-
2398992M PLATEPLATE
-
2427-98993T GASKETGASKET
-
2510-82500M SCREWSCREW
-
2627-815009 GASKETGASKET
-
2784262M DIAPHRAGMDIAPHRAGM
-
2821-41888M CHECK VALVECHECK VALVE
-
2984263M BODYBODY
-
3027-815010M GASKETGASKET
-
3184265M DIAPHRAGMDIAPHRAGM
-
3284266M COVERCOVER
-
3310-80954M SCREWSCREW
-
3411873M SCREWSCREW
-
3511-82537M NUTNUT
-
3613-82206M WASHERWASHER
-
3710-82512M SCREWSCREW
-
3827-14218M GASKETGASKET
-
-814481M REPAIR KITREPAIR KIT
