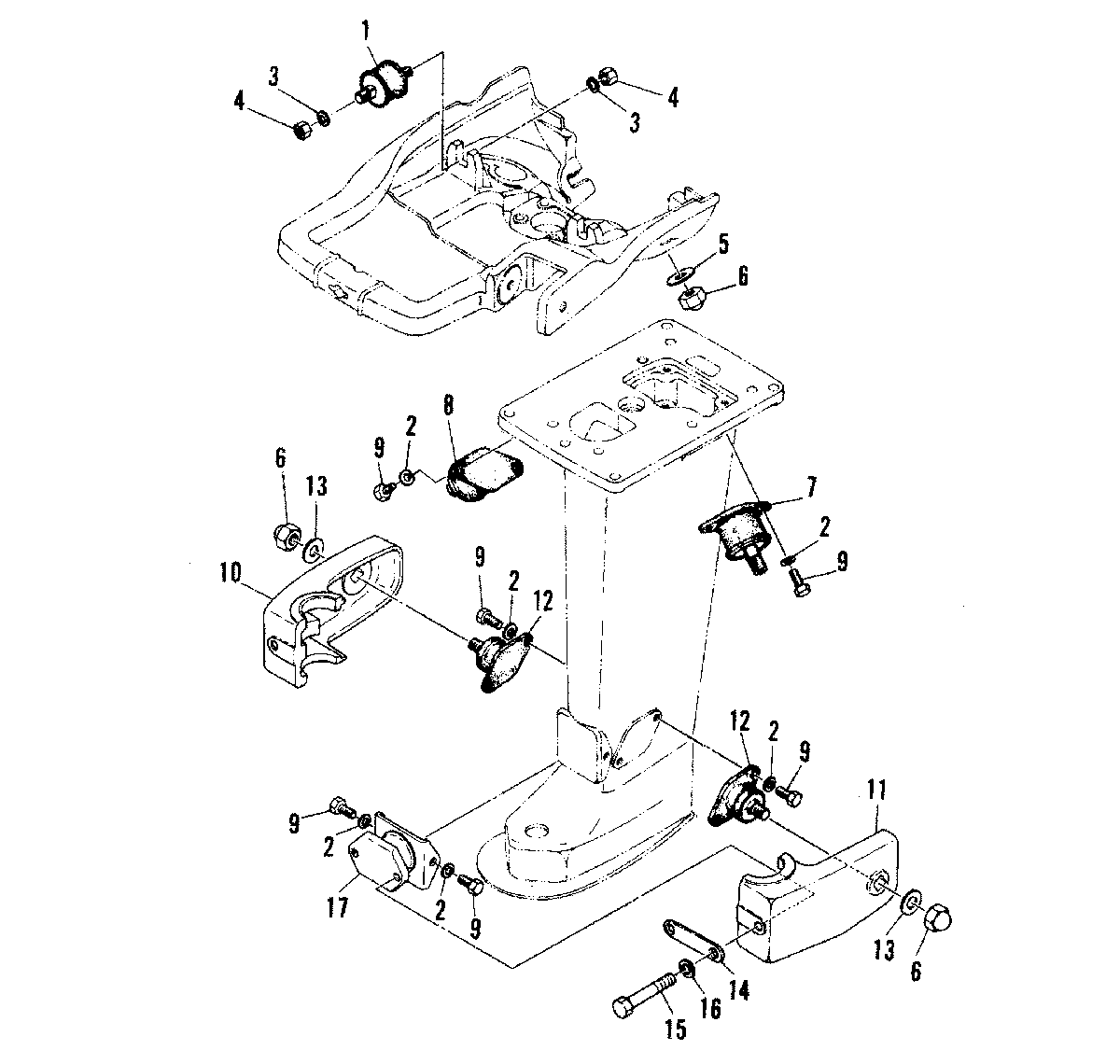

MOUNTING SYSTEM для Mariner - W15 (ML) 662-33771 THRU 662-304410

  • №
    Артикул
    Название
  • 1
    80242M MOUNT, RUBBER-UPPER FRONT
    MOUNT, RUBBER-UPPER FRONT
  • 2
    13-82212M WASHER, LOCK
    WASHER, LOCK
  • 3
    12-82216M WASHER, LOCK
    WASHER, LOCK
  • 4
    11-82382M NUT
    NUT
  • 5
    12-81806M WASHER
    WASHER
  • 6
    11-82396M NUT
    NUT
  • 7
    80240M MOUNT, RUBBER-UPPER SIDE (PORT)
    MOUNT, RUBBER-UPPER SIDE (PORT)
  • 8
    80241M MOUNT, RUBBER-UPPER SUDE (STARBOARD)
    MOUNT, RUBBER-UPPER SUDE (STARBOARD)
  • 9
    10-826957M BOLT
    BOLT
  • 10
    80906M HOUSING, LOWER MOUTNT (STARBOARD)
    HOUSING, LOWER MOUTNT (STARBOARD)
  • 11
    80907M HOUSING, LOWER MOUNT (PORT)
    HOUSING, LOWER MOUNT (PORT)
  • 12
    80243M MOUNT, LOWER SIDE
    MOUNT, LOWER SIDE
  • 13
    12-81806M WASHER
    WASHER
  • 14
    80908M PLATE
    PLATE
  • 15
    10-43103M BOLT
    BOLT
  • 16
    13-82215M WASHER, LOCK
    WASHER, LOCK
  • 17
    80909M MOUNT, RUBBER-LOWER FRONT
    MOUNT, RUBBER-LOWER FRONT
