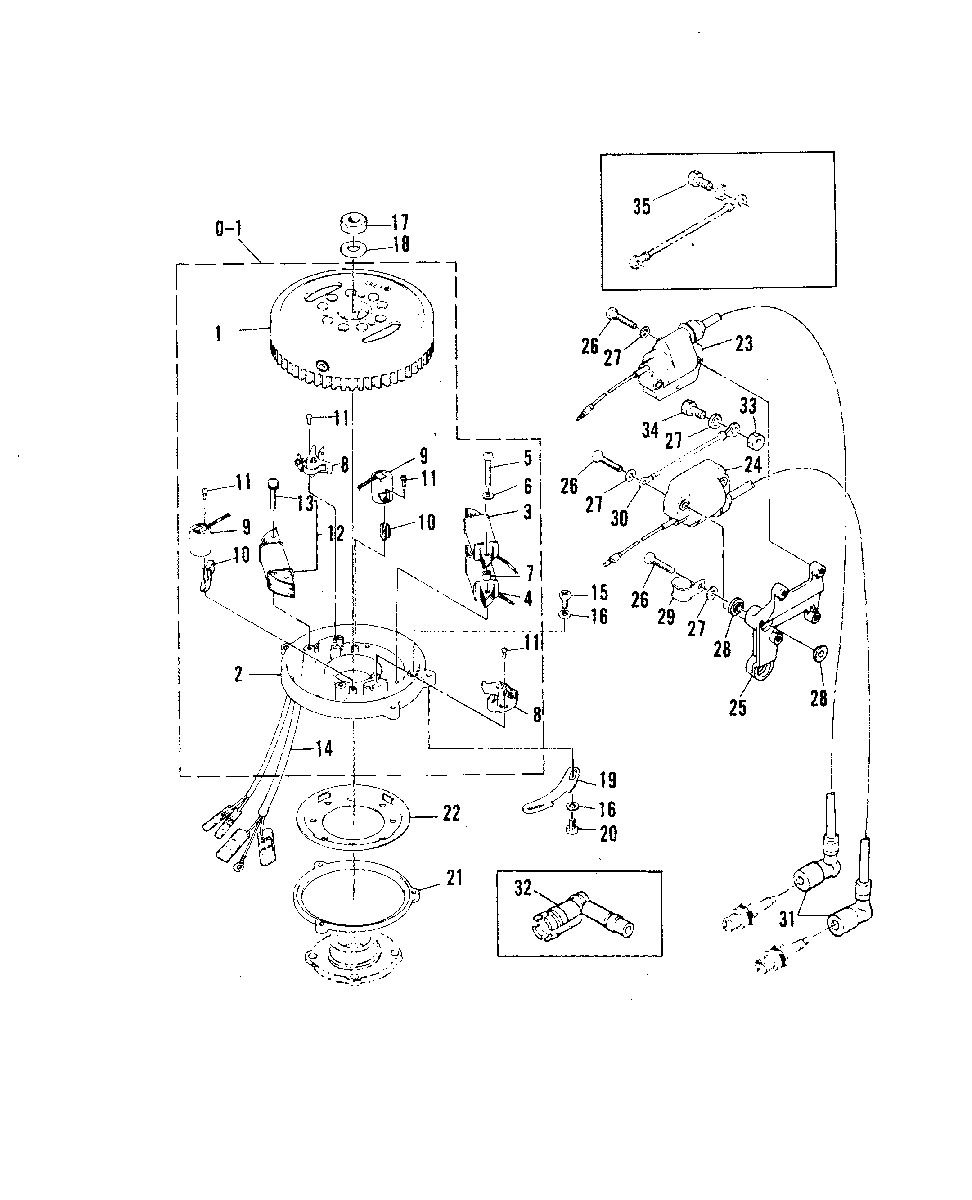

FLYWHEEL MAGNETO для Mariner - W15 (ML) 662-33771 THRU 662-304410

  • №
    Артикул
    Название
  • 0-1
    253-7173M FLYWHEEL MAGNETO ASS'Y WITHOUT LIGHTING COIL
    FLYWHEEL MAGNETO ASS'Y WITHOUT LIGHTING COIL
  • 0-1
    253-6822M FLYWHEEL MAGNETO ASS'Y WITH LIGHTING COIL
    FLYWHEEL MAGNETO ASS'Y WITH LIGHTING COIL
  • 1
    253-8219M FLYWHEEL
    FLYWHEEL
  • 2
    81245M BASE, MAGNETO
    BASE, MAGNETO
  • 3
    80551M IGNITION COIL, #1 CYLINDER
    IGNITION COIL, #1 CYLINDER
  • 4
    80552M IGNITION COIL, #2 CYLINDER
    IGNITION COIL, #2 CYLINDER
  • 5
    10-82568M SCREW
    SCREW
  • 6
    13-82186M WASHER, LOCK
    SERIAL 00000921-09999999
    WASHER, LOCK
    SERIAL 00000921-09999999
  • 6
    13-82186M WASHER, LOCK
    SERIAL 00000000-00000920
    WASHER, LOCK
    SERIAL 00000000-00000920
  • 7
    23-80555M SPACER, COIL
    SPACER, COIL
  • 8
    80930M BREAKER POINT ASS'Y
    BREAKER POINT ASS'Y
  • 9
    80558M CONDENSER
    CONDENSER
  • 10
    80025M LUBRICATOR
    LUBRICATOR
  • 11
    10-82500M SCREW W/WASHER
    SCREW W/WASHER
  • 12
    80553M LIGHTING COIL ASS'Y (80E)
    LIGHTING COIL IS OPTIONAL ON U.S.A. ENGINES.
    LIGHTING COIL ASS'Y (80E)
    LIGHTING COIL IS OPTIONAL ON U.S.A. ENGINES.
  • 13
    10-82522M SCREW
    SCREW
  • 14
    84-94776M LEAD WIRE
    LEAD WIRE
  • 15
    10-82176M SCREW
    SCREW
  • 16
    13-82212M WASHER, LOCK
    WASHER, LOCK
  • 17
    11-81771M NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 18
    12-81814M WASHER
    WASHER
  • 19
    81233M STOP, MAGNETO BASE
    STOP, MAGNETO BASE
  • 20
    10-84088M BOLT
    BOLT
  • 21
    81231M RETAINER, MAGNETO BASE-INNER
    RETAINER, MAGNETO BASE-INNER
  • 22
    81232M RETAINER, MAGNETO BASE-OUTER
    RETAINER, MAGNETO BASE-OUTER
  • 23
    84498M SECONDARY IGNITION COIL ASS'Y
    SECONDARY IGNITION COIL ASS'Y
  • 24
    84498M SECONDARY IGNITION COIL ASS'Y
    SECONDARY IGNITION COIL ASS'Y
  • 25
    81248M BRACKET, INGITION COIL
    BRACKET, INGITION COIL
  • 26
    10-83285M BOLT
    BOLT
  • 27
    12-82214M WASHER, LOCK
    WASHER, LOCK
  • 28
    23-81970M COLLAR, COIL BRACKET BOLT
    COLLAR, COIL BRACKET BOLT
  • 29
    54-82040M CLAMP, COIL CLAMP
    CLAMP, COIL CLAMP
  • 30
    84-81250M WIRE, GROUND
    WIRE, GROUND
  • 31
    85-63709A1 PLUG CAP
    PLUG CAP
  • 32
    85-815119M PLUG CAP, NOISE SUPPRESSOR (OPT)
    PLUG CAP, NOISE SUPPRESSOR (OPT)
  • 33
    11-82389M NUT
    SERIAL 00000101-09999999
    NUT
    SERIAL 00000101-09999999
  • 34
    10-91772M BOLT
    SERIAL 00000101-09999999
    BOLT
    SERIAL 00000101-09999999
  • 35
    10-826957M BOLT
    SERIAL 00000000-00000100
    BOLT
    SERIAL 00000000-00000100
