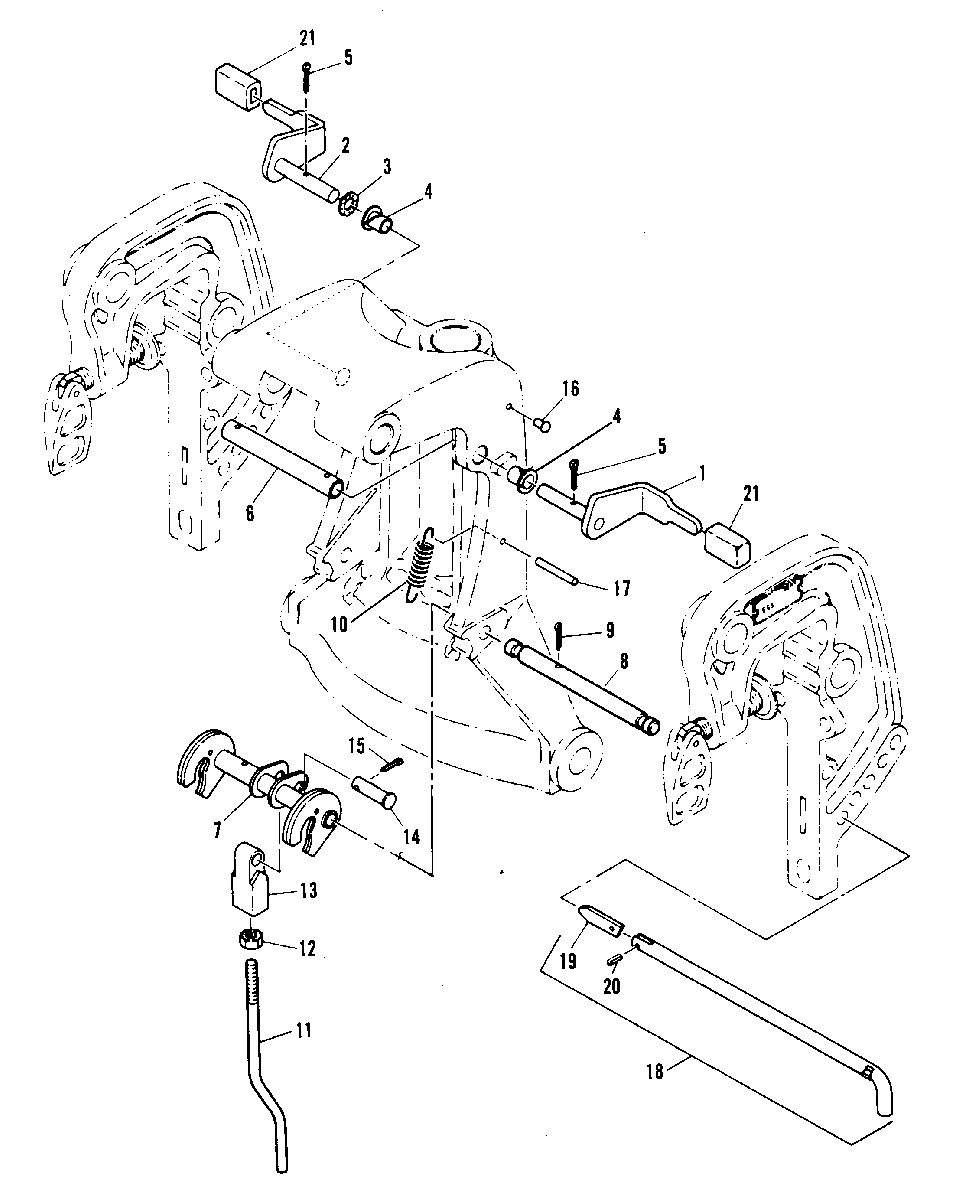

REVERSE LOCK для Mariner - W-48 670-334241 AND UP

  • №
    Артикул
    Название
  • 1
    81393M LEVER, TILT STOP SUPPORT (PORT)
    LEVER, TILT STOP SUPPORT (PORT)
  • 2
    81394M LEVER, TILT STOP SUPPORT (STARBOARD)
    LEVER, TILT STOP SUPPORT (STARBOARD)
  • 3
    13-92652M WASHER, WAVE
    WASHER, WAVE
  • 4
    23-81947M BUSHING
    BUSHING
  • 5
    18-82132M PIN, COTTER
    PIN, COTTER
  • 6
    23-81980M COLLAR, TILT STOP SUPPORT
    COLLAR, TILT STOP SUPPORT
  • 7
    41315M REVERSE LOCK
    REVERSE LOCK
  • 8
    17-41314M ROD, REVERSE LOCK
    ROD, REVERSE LOCK
  • 9
    18-82130M PIN, COTTER
    PIN, COTTER
  • 10
    24-82103M SPRING, TENSION
    SPRING, TENSION
  • 11
    83132M ROD, REVERSE LOCK (M)
    ROD, REVERSE LOCK (M)
  • 11
    83065M ROD, REVERSE LOCK (ML)
    ROD, REVERSE LOCK (ML)
  • 12
    11-82382M NUT
    NUT
  • 13
    81400M CLEVIS, REVERSE LOCK
    CLEVIS, REVERSE LOCK
  • 14
    17-82138M PIN, CLEVIS
    PIN, CLEVIS
  • 15
    18-82128M PIN, COTTER
    PIN, COTTER
  • 16
    17-81909M RIVET
    RIVET
  • 17
    17-82159M PIN, ROLL
    PIN, ROLL
  • 18
    17-814972T TILT LOCK PIN ASS'Y
    TILT LOCK PIN ASS'Y
  • 19
    84044M STOPPER PLATE
    STOPPER PLATE
  • 20
    17-82145M PIN, ROLL
    PIN, ROLL
  • 21
    81395M COVER
    COVER
