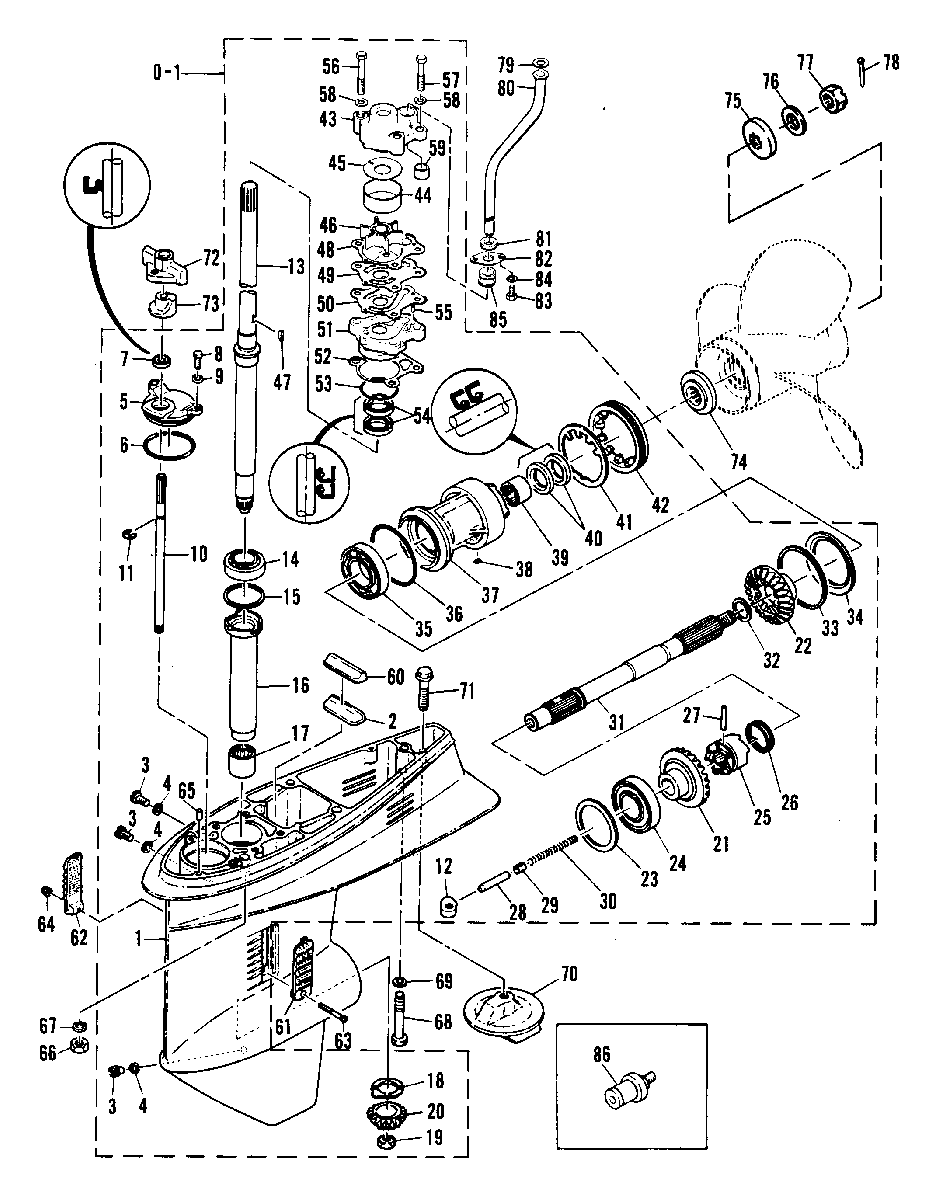

GEARHOUSING ASSEMBLY для Mariner - W-48 670-334241 AND UP

  • №
    Артикул
    Название
  • 0-1
    1651-7978M GEAR HOUSING ASS'Y (M)
    GEAR HOUSING ASS'Y (M)
  • 0-1
    1651-7979M GEAR HOUSING ASS'Y (ML)
    GEAR HOUSING ASS'Y (ML)
  • 1
    1651-7971M GEAR HOUSING
    GEAR HOUSING
  • 2
    81449M GUIDE, SEAL
    GUIDE, SEAL
  • 3
    22-81924M SCREW
    SCREW
  • 4
    27-81987 GASKET
    GASKET
  • 5
    81445M COFER, GEAR HOUSING
    COFER, GEAR HOUSING
  • 6
    25-82281M O-RING
    O-RING
  • 7
    26-82257M OIL SEAL, GEAR HOUSING COVER
    OIL SEAL, GEAR HOUSING COVER
  • 8
    10-826957M BOLT
    BOLT
  • 9
    12-82214M WASHER
    WASHER
  • 10
    81408M ROD, SHIFT - LOWER
    ROD, SHIFT - LOWER
  • 11
    53-82334M SNAP RING
    SNAP RING
  • 12
    81409M CAM, SHIFT
    CAM, SHIFT
  • 13
    45-81678M DRIVESHAFT (M)
    DRIVESHAFT (M)
  • 13
    45-81679M DRIVESHAFT (ML)
    DRIVESHAFT (ML)
  • 14
    31-82319T BEARING, TAPERED ROLLER
    BEARING, TAPERED ROLLER
  • 15
    15-81467M SHIM, DRIVESHAFT BEARING (.05MM)
    SHIM, DRIVESHAFT BEARING (.05MM)
  • 15
    15-81468M SHIM, DRIVESHAFT BEARING (.08MM)
    SHIM, DRIVESHAFT BEARING (.08MM)
  • 15
    15-19148002 SHIM, DRIVESHAFT BEARING (.12MM)
    SHIM, DRIVESHAFT BEARING (.12MM)
  • 15
    15-19148004 SHIM, DRIVESHAFT BEARING (.30MM)
    SHIM, DRIVESHAFT BEARING (.30MM)
  • 15
    15-19153M SHIM, DRIVESHAFT BEARING (.50MM)
    SHIM, DRIVESHAFT BEARING (.50MM)
  • 16
    23-81453M SLEEVE, DRIVESHAFT
    SLEEVE, DRIVESHAFT
  • 17
    31-82316T BEARING, NEEDLE
    BEARING, NEEDLE
  • 18
    12-81455M THRUST WASHER
    THRUST WASHER
  • 19
    11-81772M NUT, DRIVESHAFT
    NUT, DRIVESHAFT
  • 20
    43-84442T GEAR, PINION
    GEAR, PINION
  • 21
    43-84443T GEAR, FORWARD
    GEAR, FORWARD
  • 22
    43-84444T GEAR REVERSE
    GEAR REVERSE
  • 23
    15-81456M SHIM, FORWARD GEAR ADJUST (.05 MM)
    SHIM, FORWARD GEAR ADJUST (.05 MM)
  • 23
    15-81457M SHIM, FORWARD GEAR ADJUST (.08 MM)
    SHIM, FORWARD GEAR ADJUST (.08 MM)
  • 23
    15-19148003 SHIM, FORWARD GEAR ADJUST (.12 MM)
    SHIM, FORWARD GEAR ADJUST (.12 MM)
  • 23
    15-19158M SHIM, FORWARD GEAR ADJUST (.30 MM)
    SHIM, FORWARD GEAR ADJUST (.30 MM)
  • 23
    15-81460M SHIM, FORWARD GEAR ADJUST (.50 MM)
    SHIM, FORWARD GEAR ADJUST (.50 MM)
  • 24
    31-82320T BEARING, TAPERED ROLLER
    BEARING, TAPERED ROLLER
  • 25
    52-81473T CLUTCH
    CLUTCH
  • 26
    81474M RING, CROSS PIN
    RING, CROSS PIN
  • 27
    17-81903M CROS PIN, CLUTCH
    CROS PIN, CLUTCH
  • 28
    92643M PLUNGER, SHIFT
    PLUNGER, SHIFT
  • 29
    81475M SLIDE, SHIFT
    SLIDE, SHIFT
  • 30
    24-82091M SPRING, SHIFT
    SPRING, SHIFT
  • 31
    44-92644M SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 32
    12-81837M WASHER, REVERSE GEAR
    WASHER, REVERSE GEAR
  • 33
    81432M SHIM, REVERSE GEAR ADJUST (.05 MM)
    SHIM, REVERSE GEAR ADJUST (.05 MM)
  • 33
    15-81463M SHIM, REVERSE GEAR ADJUST (.08 MM)
    SHIM, REVERSE GEAR ADJUST (.08 MM)
  • 33
    15-19163002 SHIM, REVERSE GEAR ADJUST (.12 MM)
    SHIM, REVERSE GEAR ADJUST (.12 MM)
  • 33
    15-19163001 SHIM, REVERSE GEAR ADJUST (.30 MM)
    SHIM, REVERSE GEAR ADJUST (.30 MM)
  • 33
    15-19165M SHIM, REVERSE GEAR ADJUST (.50 MM)
    SHIM, REVERSE GEAR ADJUST (.50 MM)
  • 34
    12-81461M THRUST WASHER, REVERSE GEAR
    THRUST WASHER, REVERSE GEAR
  • 35
    30-82296T BEARING, BALL
    BEARING, BALL
  • 36
    25-82289M O-RING
    O-RING
  • 37
    81446M BEARING CARRIER
    BEARING CARRIER
  • 38
    28-81916M KEY
    KEY
  • 39
    31-82317M BEARING, NEEDLE
    BEARING, NEEDLE
  • 40
    26-854017 OIL SEAL, PROPELLER SHAFT
    OIL SEAL, PROPELLER SHAFT
  • 41
    14-81877M WASHER, TAB
    WASHER, TAB
  • 42
    11-8M0059031 NUT
    NUT
  • 43
    46-81416M BODY, WATER PUMP
    BODY, WATER PUMP
  • 44
    81672M INSERT, CARTRIDGE
    INSERT, CARTRIDGE
  • 45
    83131M INNER PLATE, CARTRIDGE
    INNER PLATE, CARTRIDGE
  • 46
    47-97108M IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 47
    28-97089M KEY
    KEY
  • 48
    27-81417 GASKET, WATER PUMP
    GASKET, WATER PUMP
  • 49
    81673M OUTER PLATE, CARTRIDGE
    OUTER PLATE, CARTRIDGE
  • 50
    27-81421M GASKET, CARTRIDGE OUTER PLATE
    GASKET, CARTRIDGE OUTER PLATE
  • 51
    46-81422M BASE, WATER PUMP
    BASE, WATER PUMP
  • 52
    27-81418M GASKET, WATER PUMP BASE
    GASKET, WATER PUMP BASE
  • 53
    25-82275M O-RING
    O-RING
  • 54
    26-82234M OIL SEAL, WATER PUMP
    OIL SEAL, WATER PUMP
  • 55
    17-82354M PIN, DOWEL
    PIN, DOWEL
  • 56
    10-84057M BOLT
    BOLT
  • 57
    10-85277614 BOLT
    BOLT
  • 58
    12-82217M WASHER
    WASHER
  • 59
    26-81426M SEAL
    SEAL
  • 60
    81448M SEAL, RUBBER
    SEAL, RUBBER
  • 61
    19166M COVER, WATER INLET - PORT
    COVER, WATER INLET - PORT
  • 62
    19167M COVER, WATER INLET - STARBOARD
    COVER, WATER INLET - STARBOARD
  • 63
    10-82484M SCREW
    SCREW
  • 64
    11-8528165 NUT
    NUT
  • 65
    17-82364M PIN, DOWEL
    PIN, DOWEL
  • 66
    11-82395M NUT
    NUT
  • 67
    13-82218M WASHER, LOCK
    WASHER, LOCK
  • 68
    10-98953M BOLT W/WASHER
    BOLT W/WASHER
  • 70
    83859T TRIM TAB
    TRIM TAB
  • 71
    10-82801M BOLT, TRIM TAB ATTACHING
    BOLT, TRIM TAB ATTACHING
  • 72
    98937M GUIDE, REVERSE ROD
    GUIDE, REVERSE ROD
  • 73
    81410M CAM, REVERSE ROD
    CAM, REVERSE ROD
  • 74
    73345A1 THRUST WASHER (FOR MARINER REPLACEMENT PROPELLER)
    THRUST WASHER (FOR MARINER REPLACEMENT PROPELLER)
  • 74
    12-81477M THRUST WASHER (FOR ORIGINAL PROPELLER)
    THRUST WASHER (FOR ORIGINAL PROPELLER)
  • 75
    23-84445T THRUST WASHER , REAR (FOR ORIGINAL PROPELLER)
    THRUST WASHER , REAR (FOR ORIGINAL PROPELLER)
  • 76
    12-83700M WASHER
    WASHER
  • 77
    859935 NUT, PROPELLER
    NUT, PROPELLER
  • 78
    18-95295 PIN, COTTER
    PIN, COTTER
  • 79
    12-81852M WASHER, WATER TUBE
    WASHER, WATER TUBE
  • 80
    32-81674M TUBE, WATER (M)
    TUBE, WATER (M)
  • 80
    32-81675M TUBE, WATER (ML)
    TUBE, WATER (ML)
  • 81
    25-81989M GASKET, WATER TUBE
    GASKET, WATER TUBE
  • 82
    81428M SET PLATE, WATER TUBE
    SET PLATE, WATER TUBE
  • 83
    10-91772M BOLT
    BOLT
  • 84
    13-82212M WASHER, LOCK
    WASHER, LOCK
  • 85
    26-81427M SEAL, WATER TUBE LOWER
    SEAL, WATER TUBE LOWER
  • 86
    22-8M0121335 PLUG, WATER FLUSH (OPT)
    PLUG, WATER FLUSH (OPT)
  • 86
    27-92648M GASKET SET, LOWER UNIT
    REPLACEMENT PARTS
    GASKET SET, LOWER UNIT
    REPLACEMENT PARTS
  • 86
    84187T REPAIR KIT, WATER PUMP
    REPLACEMENT PARTS
    REPAIR KIT, WATER PUMP
    REPLACEMENT PARTS
