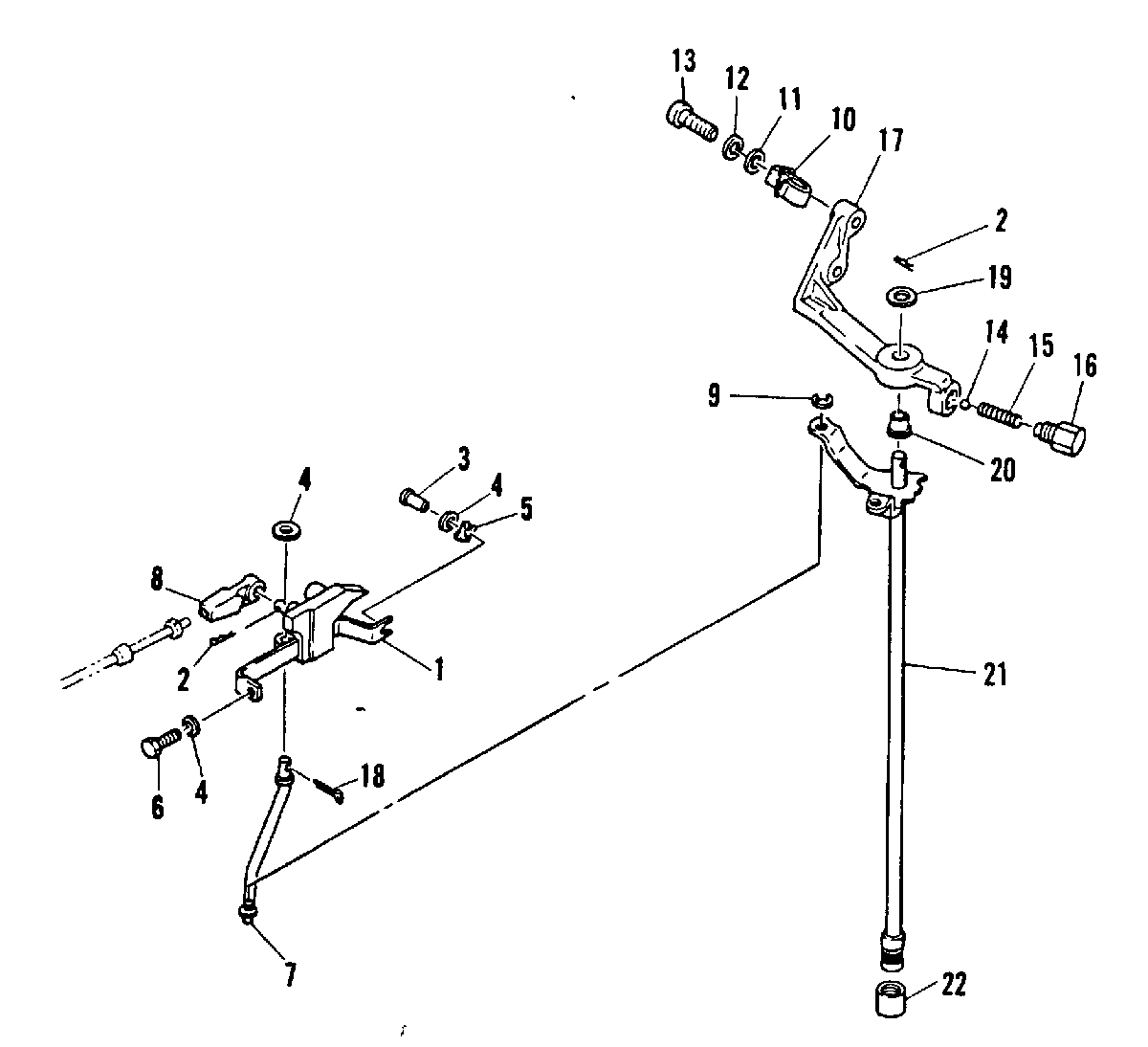

GEAR SHIFT LINKAGE для Mariner - W-48 670-007191 AND UP
-
№АртикулНазвание
-
198919M BRACKET, SHIFTBRACKET, SHIFT
-
218-82053M PIN, COTTERPIN, COTTER
-
317-82137M PIN, CLEVISPIN, CLEVIS
-
412-82214M WASHER, LOCKWASHER, LOCK
-
513-81866M WASHER, WAVEWASHER, WAVE
-
610-82423M BOLTBOLT
-
784209M LEVER, SHIFT RODLEVER, SHIFT ROD
-
881480M CLEVIS, SHIFT CONTROL CABLECLEVIS, SHIFT CONTROL CABLE
-
953-82330M SNAP RINGSNAP RING
-
1054-92664M CLAMPCLAMP
-
1112-82217M WASHERWASHER
-
1213-82215M WASHER, LOCKWASHER, LOCK
-
1310-82441M BOLTBOLT
-
1492659M BALL, DETENTBALL, DETENT
-
1524-82081M SPRING, DETENTSPRING, DETENT
-
1623-80635M RETAINER, COMPRESSION SPRINGRETAINER, COMPRESSION SPRING
-
1798920M BRACKET, SHIFT RODBRACKET, SHIFT ROD
-
1818-43089M PIN, COTTERPIN, COTTER
-
1912-82216M WASHERWASHER
-
2023-98923M BUSHINGBUSHING
-
2119169M SHIFT ROD ASS'Y, UPPER (M)SHIFT ROD ASS'Y, UPPER (M)
-
2119170M SHIFT ROD ASS'Y, UPPER (ML)SHIFT ROD ASS'Y, UPPER (ML)
-
2298924M BOOT, SHIFT RODBOOT, SHIFT ROD
