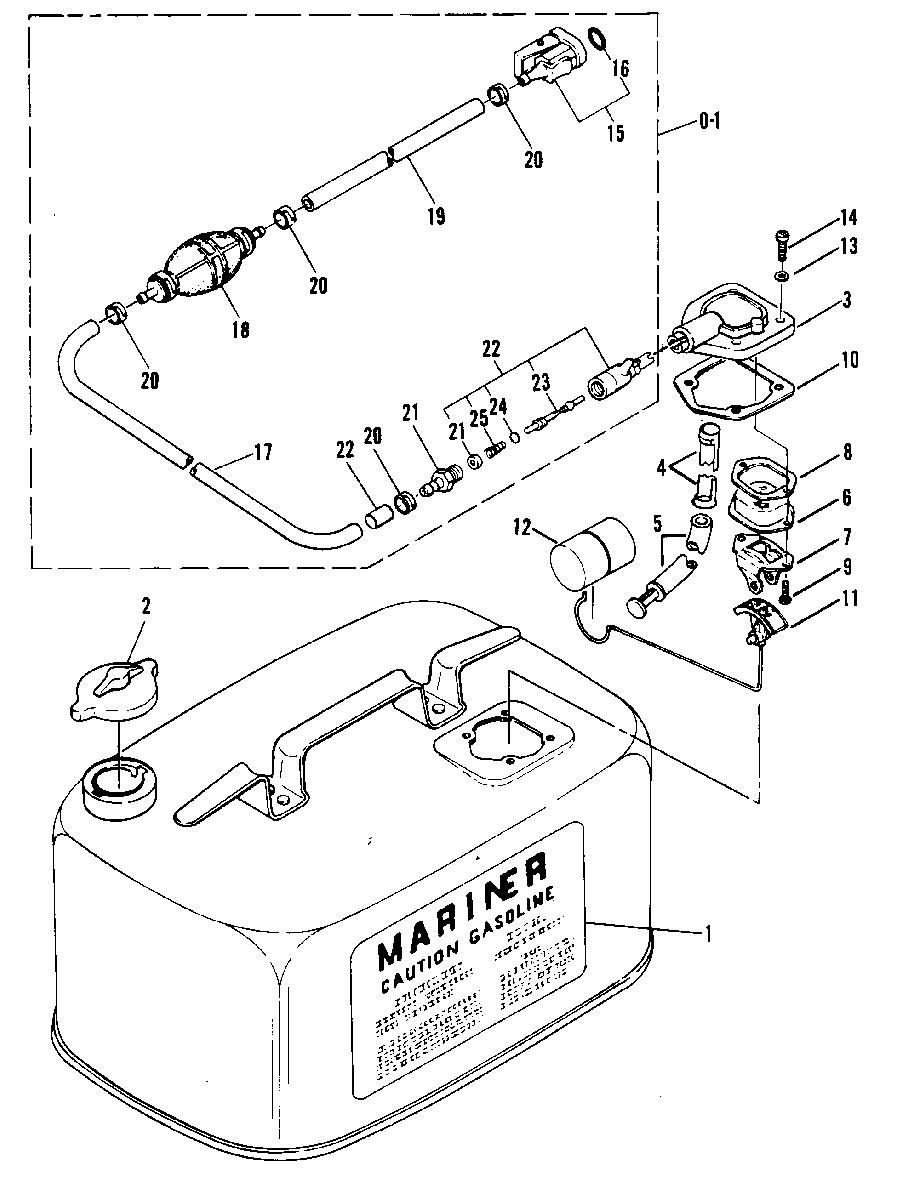

FUEL TANK AND FUEL LINE ASSEMBLY для Mariner - W-48 670-007191 AND UP
-
№АртикулНазвание
-
137-82984M DECAL, SIDEDECAL, SIDE
-
236-18962M FUEL TANK CAPFUEL TANK CAP
-
383618M FUEL METER ASSYFUEL METER ASSY
-
454-83764M CLAMP, PICKUP HOSECLAMP, PICKUP HOSE
-
532-94727M HOSE, PICKUPHOSE, PICKUP
-
680269M LENS, INDICATORLENS, INDICATOR
-
780268M BRACKET, INDICATORBRACKET, INDICATOR
-
827-17540M GASKET, HOUSING TO LENS INDICATORGASKET, HOUSING TO LENS INDICATOR
-
910-83523M SCREWSCREW
-
1027-81320M GASKET, HOUSING TO TANKGASKET, HOUSING TO TANK
-
1181318M INDICATOR, FUEL LEVELINDICATOR, FUEL LEVEL
-
1281319M FLOAT, INDICATORFLOAT, INDICATOR
-
1312-95501M WASHER, HOUSING SCREWWASHER, HOUSING SCREW
-
1410-82496M SCREW, HOUSING ATTACHINGSCREW, HOUSING ATTACHING
-
0-132-877681Q8 FUEL LINE ASS'YFUEL LINE ASS'Y
-
1522-14213Q FUEL CONNECTOR, ENGINE ENDFUEL CONNECTOR, ENGINE END
-
1625-82789M O-RINGO-RING
-
1732-94727M HOSE, CONNECTOR HOUSING TO BULBHOSE, CONNECTOR HOUSING TO BULB
-
1889396Q01 BULB, PRIMERBULB, PRIMER
-
1932-94727M HOSE, BULB TO CONNECTORHOSE, BULB TO CONNECTOR
-
2054-16725M CLAMP, HOUSECLAMP, HOUSE
-
2123-81327M COLLARCOLLAR
-
2230185Q3 BAYONET BODY ASS'YBAYONET BODY ASS'Y
-
2330185Q3 STEM. BAYONET BODYSTEM. BAYONET BODY
-
2425-16524 O-RING, BAYONET BODY STEMO-RING, BAYONET BODY STEM
-
2524-30189 SPRING, BAYONET BODY STEMSPRING, BAYONET BODY STEM
-
2630188 WASHER, CAPWASHER, CAP
-
2722-63187 FITTING, FUEL LINEFITTING, FUEL LINE
