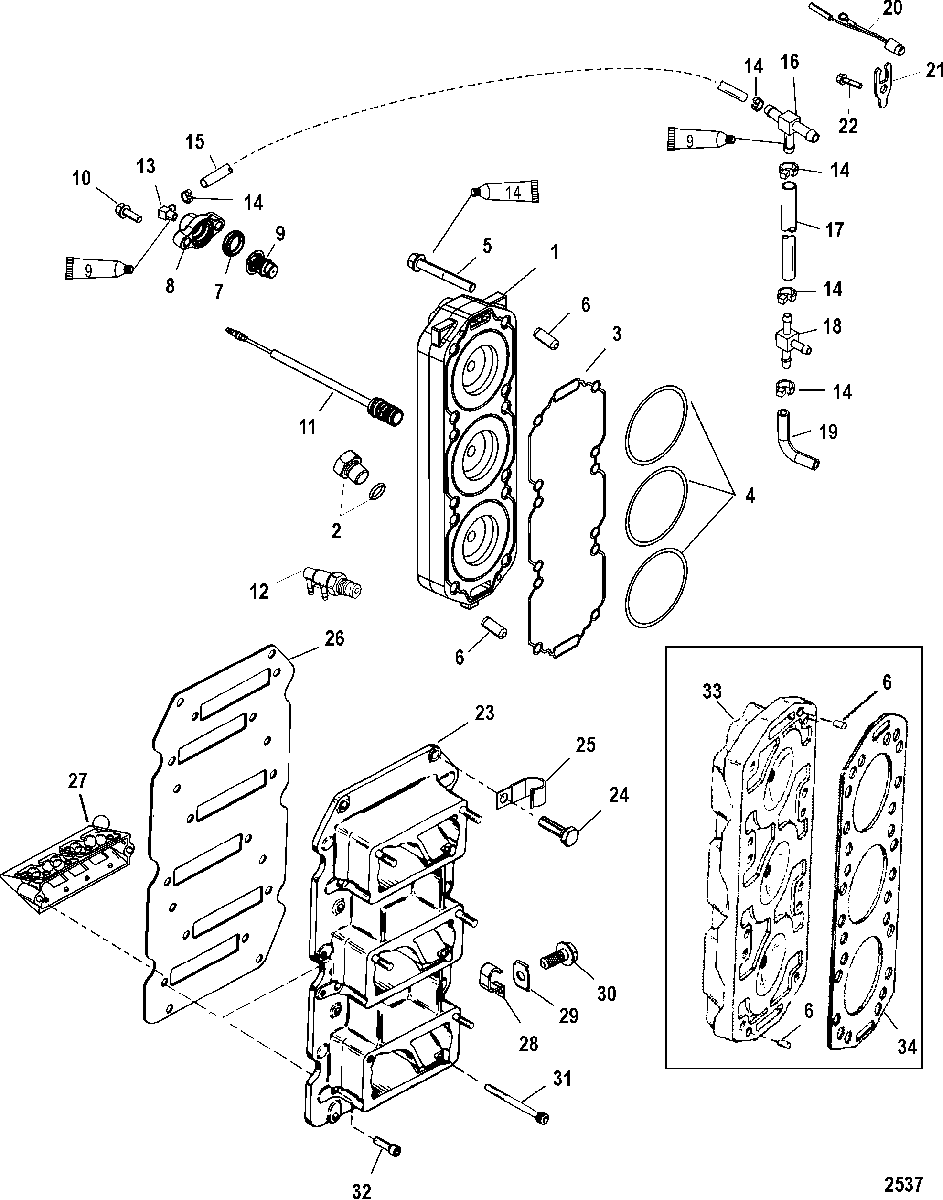

Reed Block and Cylinder Head для Mariner - V-200 0G960500 THRU 1B226999

  • №
    Артикул
    Название
  • 1
    858281A9 CYLINDER HEAD
    (140/150/XR6/ MAGNUM III) SN# 0T800999 & Below
    CYLINDER HEAD
    (140/150/XR6/ MAGNUM III) SN# 0T800999 & Below
  • 1
    858281A9 CYLINDER HEAD KIT
    (140/150/XR6/ MAGNUM III) SN# 0T801000 & Up
    CYLINDER HEAD KIT
    (140/150/XR6/ MAGNUM III) SN# 0T801000 & Up
  • 1
    858281A10 CYLINDER HEAD
    (200) SN# 0T800999 & Below
    CYLINDER HEAD
    (200) SN# 0T800999 & Below
  • 1
    858281A10 CYLINDER HEAD ASSEMBLY
    (200) SN# 0T801000 & Up
    CYLINDER HEAD ASSEMBLY
    (200) SN# 0T801000 & Up
  • 2
    22-8591001 PLUG
    SN# 0T800999 & Below
    PLUG
    SN# 0T800999 & Below
  • 2
    22-8591001 PLUG ASSEMBLY, (M10 x 1.5) Brass
    (200) SN# 0T801000 & Up
    PLUG ASSEMBLY, (M10 x 1.5) Brass
    (200) SN# 0T801000 & Up
  • 3
    8584521 SEAL
    (140/150/XR6/ MAGNUM III/200)
    SEAL
    (140/150/XR6/ MAGNUM III/200)
  • 4
    8597721 SEAL
    (140/150/XR6/ MAGNUM III/200)
    SEAL
    (140/150/XR6/ MAGNUM III/200)
  • 5
    10-8M0125882 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 6
    17-63779 PIN, Dowel (.250 x .625)
    PIN, Dowel (.250 x .625)
  • 7
    27-62386001 GASKET
    SN# 0T979999 & Below
    GASKET
    SN# 0T979999 & Below
  • 7
    27-62386001 GASKET
    SN# 0T980000 & Up
    GASKET
    SN# 0T980000 & Up
  • 8
    90390A1 COVER KIT
    COVER KIT
  • 9
    75692 THERMOSTAT
    THERMOSTAT
  • 10
    10-40011149 SCREW, (M8 x 25) Stainless Steel
    SCREW, (M8 x 25) Stainless Steel
  • 11
    974651 SENDER (STBD.)
    SENDER (STBD.)
  • 12
    814612 VALVE, Thermal Air
    VALVE, Thermal Air
  • 13
    22-687271 FITTING, (.250-18) 90 Degree - Brass
    FITTING, (.250-18) 90 Degree - Brass
  • 14
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 15
    32-77653101 HOSE, (48.00 Inches Bulk) (Cut to 12-3/4 Inches)
    HOSE, (48.00 Inches Bulk) (Cut to 12-3/4 Inches)
  • 16
    22-68728 FITTING
    FITTING
  • 17
    32-77653101 HOSE, (48.00 Inches Bulk) (Cut to 13-1/2 Inches)
    HOSE, (48.00 Inches Bulk) (Cut to 13-1/2 Inches)
  • 18
    22-815914 T-FITTING
    T-FITTING
  • 19
    32-77653101 HOSE, (48.00 Inches Bulk)
    (Cut to 4-1/2 Inches)
    HOSE, (48.00 Inches Bulk)
    (Cut to 4-1/2 Inches)
  • 19
    32-827602002 HOSE
    (Molded)
    HOSE
    (Molded)
  • 20
    13536A13 SENSOR ASSEMBLY, Temperature (PORT) (2-WIRE)
    SENSOR ASSEMBLY, Temperature (PORT) (2-WIRE)
  • 21
    137151 RETAINER
    RETAINER
  • 22
    10-81893414 SCREW, (M8 x 14)
    SCREW, (M8 x 14)
  • 23
    43517A9 PLATE ASSEMBLY
    PLATE ASSEMBLY
  • 24
    10-28668 SCREW, (.250-20 x .875) Stainless Steel
    SCREW, (.250-20 x .875) Stainless Steel
  • 25
    54-55098 J CLIP
    J CLIP
  • 26
    27-146972 GASKET
    GASKET
  • 27
    855952T3 REED BLOCK ASSEMBLY
    REED BLOCK ASSEMBLY
  • 28
    54-65292 J CLIP
    J CLIP
  • 29
    8M0084613 C WASHER
    C WASHER
  • 30
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 31
    10-96529 SCREW, (.250-20 x 2.00)
    SCREW, (.250-20 x 2.00)
  • 32
    10-55715 SCREW, (.250-20 x .880)
    SCREW, (.250-20 x .880)
  • 33
    18787A18 CYLINDER HEAD ASSEMBLY
    (135)
    CYLINDER HEAD ASSEMBLY
    (135)
  • 34
    27-18785T GASKET
    (135)
    GASKET
    (135)
  • -
    27-815791A00 GASKET SET, Engine, Cylinder head o-rings and seal not included
    GASKET SET, Engine, Cylinder head o-rings and seal not included
  • -
    812815R97 POWERHEAD ASSEMBLY
    (135)
    POWERHEAD ASSEMBLY
    (135)
  • -
    823434R00 POWERHEAD ASSEMBLY
    (140/150/XR6/MAGNUM III)
    POWERHEAD ASSEMBLY
    (140/150/XR6/MAGNUM III)
  • -
    813043R00 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
