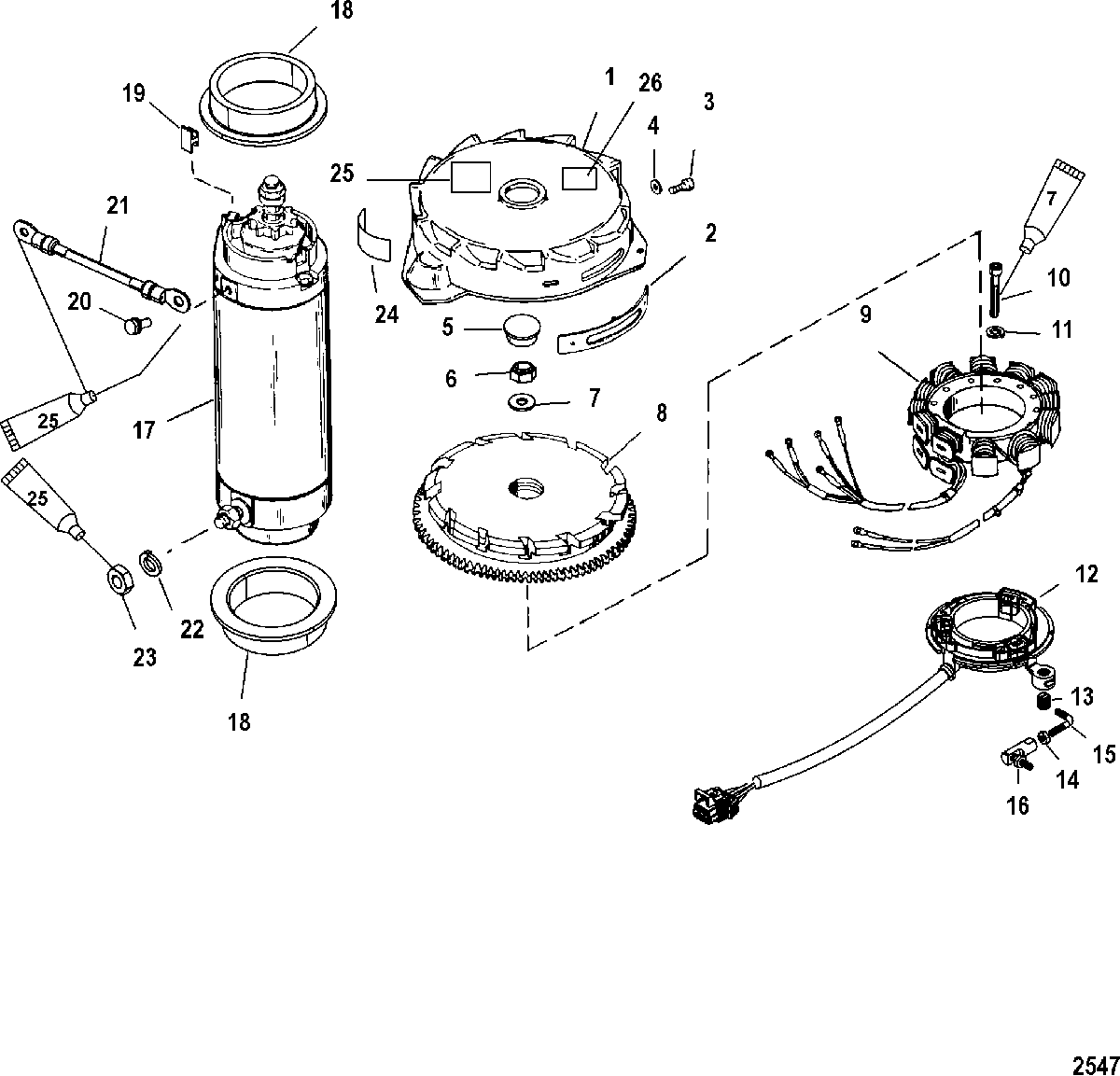

Flywheel/Starter Motor для Mariner - V-200 0G960500 THRU 1B226999

  • №
    Артикул
    Название
  • 1
    18896A1 COVER KIT
    COVER KIT
  • 2
    79022 MARKER
    MARKER
  • 3
    10-37572 SCREW, (.190-32 x .380)
    SCREW, (.190-32 x .380)
  • 4
    12-72761 WASHER, (.203 x .562 x .060) Stainless Steel
    WASHER, (.203 x .562 x .060) Stainless Steel
  • 5
    19-45907 PLUG, Yellow
    PLUG, Yellow
  • 6
    11-52901 NUT, (.625-18)
    NUT, (.625-18)
  • 7
    12-33001 WASHER, (.641 x 1.250 x .190)
    WASHER, (.641 x 1.250 x .190)
  • 8
    271-859238T17 FLYWHEEL ASSEMBLY
    SN# 0T800999 & Below
    FLYWHEEL ASSEMBLY
    SN# 0T800999 & Below
  • 8
    271-859238T17 FLYWHEEL
    SN# 0T801000 & Up
    FLYWHEEL
    SN# 0T801000 & Up
  • 9
    398-858404T4 STATOR
    SN# 0T599000 & Up
    STATOR
    SN# 0T599000 & Up
  • 9
    398-858404T4 STATOR ASSEMBLY
    SN# 0T598999 & Below
    STATOR ASSEMBLY
    SN# 0T598999 & Below
  • 10
    10-90045 SCREW, (#10-32 x 1.375)
    SCREW, (#10-32 x 1.375)
  • 11
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 12
    96455T18 TRIGGER ASSEMBLY
    TRIGGER ASSEMBLY
  • 13
    74897T PIVOT
    PIVOT
  • 14
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 15
    76035 ROD
    ROD
  • 16
    62459T BALL JOINT ASSEMBLY
    BALL JOINT ASSEMBLY
  • 17
    50-893893 STARTER MOTOR ASSEMBLY
    SN# 0T469023 & Up
    STARTER MOTOR ASSEMBLY
    SN# 0T469023 & Up
  • 17
    50-893893 STARTER MOTOR ASSEMBLY
    SN# 0T409000 THRU 0T469022
    STARTER MOTOR ASSEMBLY
    SN# 0T409000 THRU 0T469022
  • 17
    50-893893 STARTER MOTOR ASSEMBLY
    SN# 0T408999 & Below
    STARTER MOTOR ASSEMBLY
    SN# 0T408999 & Below
  • 18
    23-8M0034918 COLLAR
    COLLAR
  • 19
    8M0043376 STOP, Rubber, Rubber
    STOP, Rubber, Rubber
  • 20
    10-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
    SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
  • 21
    84-93388A1 CABLE ASSEMBLY, (6.00 Inches) Black
    CABLE ASSEMBLY, (6.00 Inches) Black
  • 22
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 23
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 24
    NSS NOT SOLD SEPARATE, Decal-In-Gear Idle
    NOT SOLD SEPARATE, Decal-In-Gear Idle
  • 25
    37-8272822 DECAL, Warning, High Voltage
    DECAL, Warning, High Voltage
  • 26
    37-881865 DECAL, Caution-Start in Gear
    (Start In Gear)
    DECAL, Caution-Start in Gear
    (Start In Gear)
