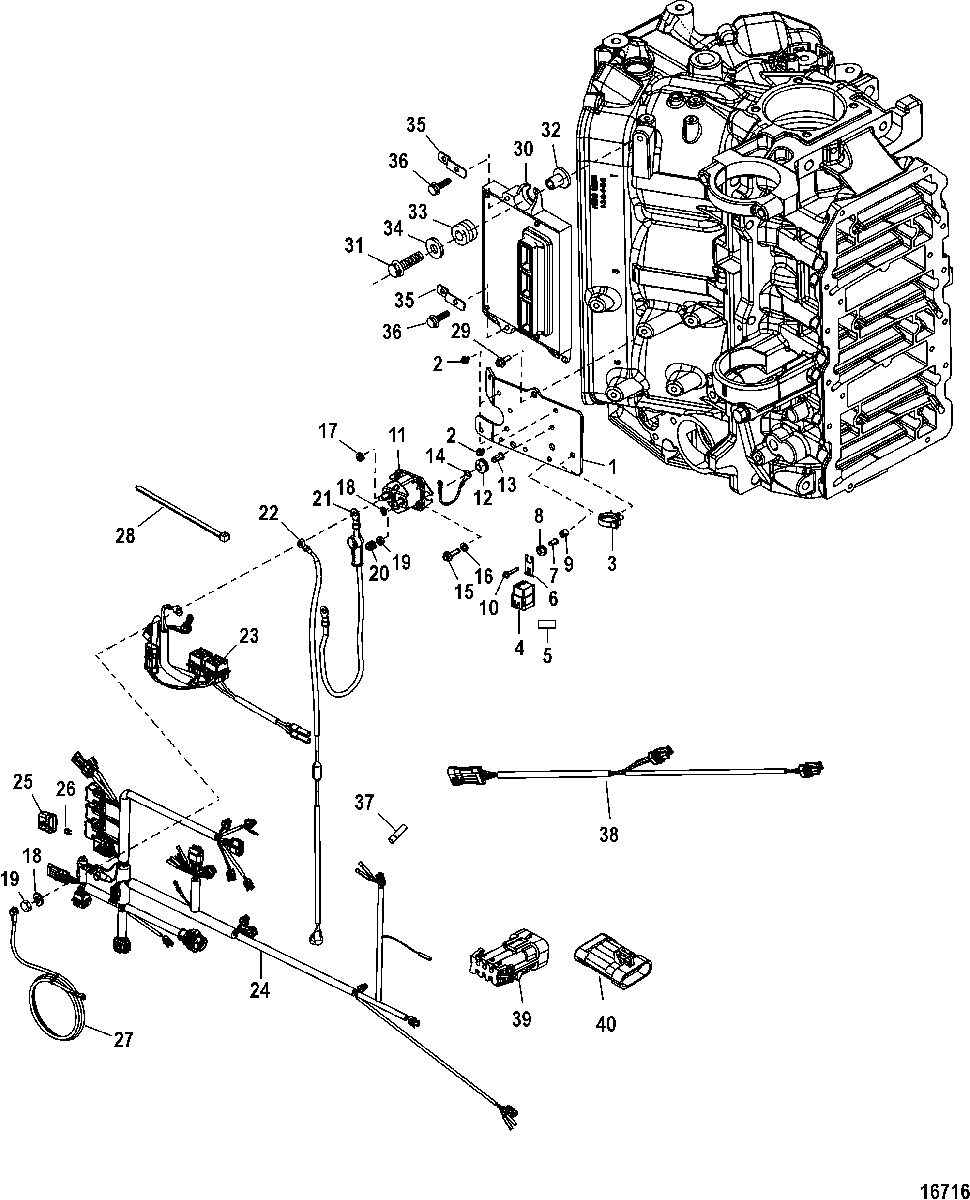

Electrical Plate Assembly для Mariner - V-200 EFI (2.5L) 1B227000 & Up

  • №
    Артикул
    Название
  • -
    NSS NOT SOLD SEPARATE, Electrical Plate Assembly-Complete
    NOT SOLD SEPARATE, Electrical Plate Assembly-Complete
  • 1
    833137F1 PLATE
    PLATE
  • 2
    10-82129110 SCREW, (M6 x 10)
    SCREW, (M6 x 10)
  • 3
    54-858755 CLIP, (1.00)
    CLIP, (1.00)
  • 4
    882751A1 RELAY ASSEMBLY
    RELAY ASSEMBLY
  • 5
    NSS NOT SOLD SEPARATE, Decal-Trim Relay
    NOT SOLD SEPARATE, Decal-Trim Relay
  • 6
    828102 BRACKET
    BRACKET
  • 7
    23-818968 BUSHING
    BUSHING
  • 8
    25-818967 GROMMET
    GROMMET
  • 9
    23-19661 BUSHING
    BUSHING
  • 10
    10-82129135 SCREW, (M6 x 35)
    SCREW, (M6 x 35)
  • 11
    89-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
    SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
  • 12
    25-822179 GROMMET
    GROMMET
  • 13
    23-818968 BUSHING
    BUSHING
  • 14
    84-88807A16 CABLE ASSEMBLY, (4.00 Inches) Black
    CABLE ASSEMBLY, (4.00 Inches) Black
  • 15
    10-82129125 SCREW, (M6 x 25 MM)
    SCREW, (M6 x 25 MM)
  • 16
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 17
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 18
    13-53166 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 19
    11-68292 NUT, (.312-18)
    NUT, (.312-18)
  • 20
    11-813938 CAP NUT, (#10-32)
    CAP NUT, (#10-32)
  • 21
    84-882829A1 CABLE ASSEMBLY, Starter
    CABLE ASSEMBLY, Starter
  • 22
    84-878231T03 HARNESS ASSEBMLY, Fuse
    HARNESS ASSEBMLY, Fuse
  • 23
    84-819514T21 HARNESS ASSEMBLY, Trim
    SN# 1B417701 & Below
    HARNESS ASSEMBLY, Trim
    SN# 1B417701 & Below
  • 23
    84-819514T21 HARNESS ASSEMBLY, Trim
    SN# 1B417702 & Up
    HARNESS ASSEMBLY, Trim
    SN# 1B417702 & Up
  • 24
    84-892970T01 HARNESS ASSEMBLY, Engine
    HARNESS ASSEMBLY, Engine
  • 25
    858754 COVER, Fuse
    COVER, Fuse
  • -
    879346A50 HARNESS ASSEMBLY (FUEL INJECTOR)
    HARNESS ASSEMBLY (FUEL INJECTOR)
  • -
    879346A41 HARNESS ASSEMBLY (TPS)
    HARNESS ASSEMBLY (TPS)
  • 26
    88-832969T20 FUSE, Mini - Yellow - 20 Ampere
    (20 AMP)
    FUSE, Mini - Yellow - 20 Ampere
    (20 AMP)
  • 26
    88-832969T05 FUSE, Mini - Tan - 5 Ampere
    (5 AMP)
    FUSE, Mini - Tan - 5 Ampere
    (5 AMP)
  • 27
    84-88439A46 CABLE ASSEMBLY, Battery - Positive
    CABLE ASSEMBLY, Battery - Positive
  • 28
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 29
    10-82130012 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 30
    89790630T PCM, Propulsion Control Module
    (150) SN# 1B348750 & Below
    PCM, Propulsion Control Module
    (150) SN# 1B348750 & Below
  • 30
    88555764T PCM, Propulsion Control Module
    (150) SN# 1B348751 THRU 1B417701
    PCM, Propulsion Control Module
    (150) SN# 1B348751 THRU 1B417701
  • 30
    89790630T PCM, Propulsion Control Module
    (150) SN# 1B417702 & Up
    PCM, Propulsion Control Module
    (150) SN# 1B417702 & Up
  • 30
    89790617T PCM, Propulsion Control Module
    (200) SN# 1B417701 & Below
    PCM, Propulsion Control Module
    (200) SN# 1B417701 & Below
  • 30
    89790617T PCM, Propulsion Control Module
    (200) SN# 1B417702 & Up
    PCM, Propulsion Control Module
    (200) SN# 1B417702 & Up
  • 31
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 32
    23-856954 BUSHING
    BUSHING
  • 33
    25-834985 GROMMET
    GROMMET
  • 34
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 35
    858953 BRACKET
    BRACKET
  • 36
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 37
    13540 CAP, Female
    CAP, Female
  • 37
    13541 PLUG, Male
    PLUG, Male
  • 38
    84-882815A1 HARNESS ASSEMBLY, Knock Sensor
    (200)
    HARNESS ASSEMBLY, Knock Sensor
    (200)
  • 39
    877613A02 CONNECTOR ASSEMBLY, Weather Cap 6 Pin
    CONNECTOR ASSEMBLY, Weather Cap 6 Pin
  • 40
    830796A04 CONNECTOR ASSEMBLY, Weather Cap - Male
    CONNECTOR ASSEMBLY, Weather Cap - Male
