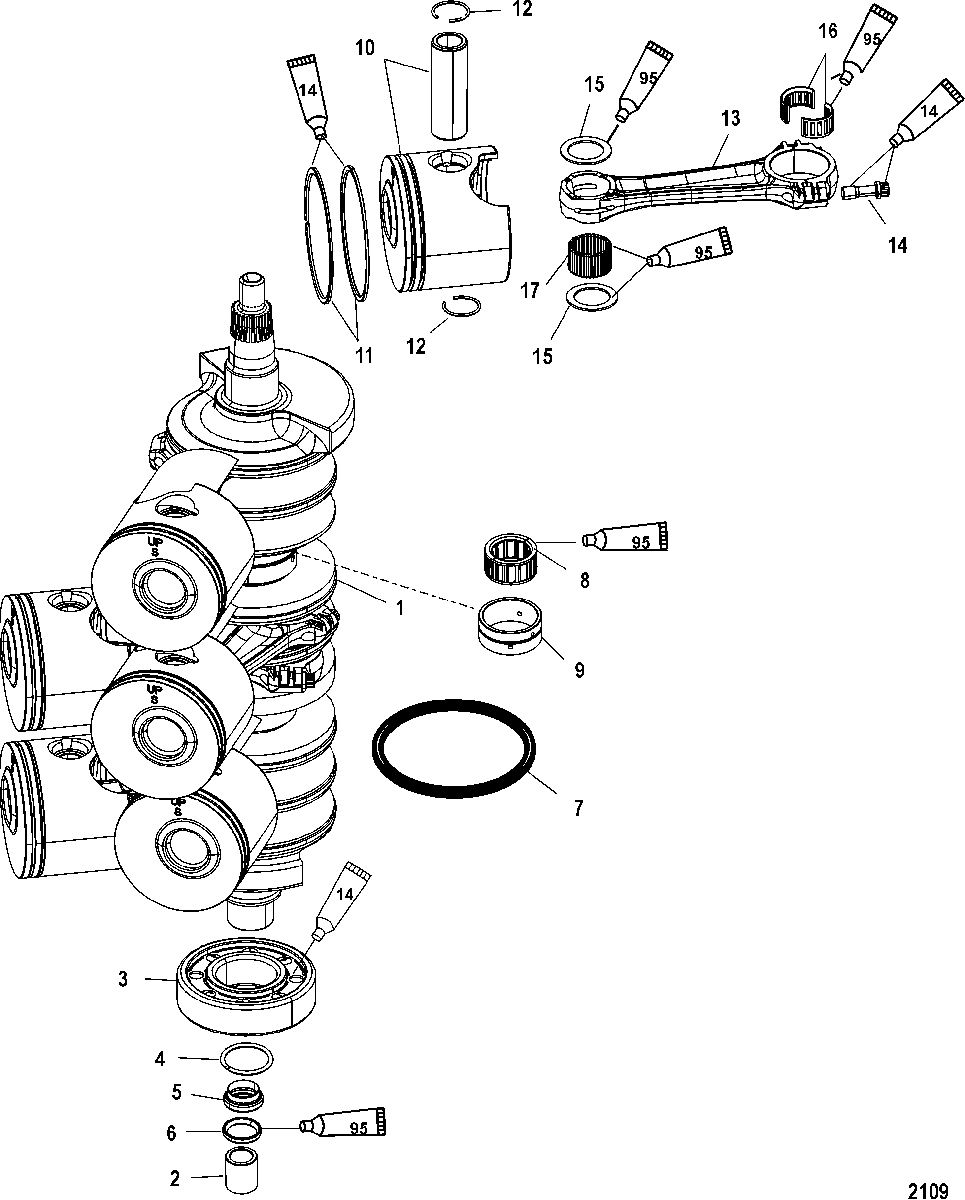

Crankshaft, Pistons and Connecting Rods для Mariner - V-200 EFI (2.5L) 1B227000 & Up

  • №
    Артикул
    Название
  • 1
    455-850690T2 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    78662 WEAR SLEEVE
    WEAR SLEEVE
  • 3
    30-67923T BEARING, Ball (Lower)
    BEARING, Ball (Lower)
  • 4
    53-67446 RING, Retaining
    RING, Retaining
  • 5
    54196A6 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 6
    65800 PACKING
    PACKING
  • 7
    39-67377T RING, Sealing, Sealing
    RING, Sealing, Sealing
  • 8
    31-16756A6 BEARING KIT
    BEARING KIT
  • 9
    NSS NOT SOLD SEPARATE, Race
    NOT SOLD SEPARATE, Race
  • 10
    785-883062T3 PISTON
    (Port-Standard)
    PISTON
    (Port-Standard)
  • 10
    785-883063T3 PISTON
    (Starboard-Standard)
    PISTON
    (Starboard-Standard)
  • 10
    785-883062T2 PISTON
    (Port-.015 Oversize)
    PISTON
    (Port-.015 Oversize)
  • 10
    785-883063T2 PISTON
    (Starboard-.015 Oversize)
    PISTON
    (Starboard-.015 Oversize)
  • 11
    39-822321A12 RING KIT, Piston - Standard, Piston
    (Standard)
    RING KIT, Piston - Standard, Piston
    (Standard)
  • 11
    39-822321A1 RING KIT, Piston - .015 Oversize, Piston
    (.015 Oversize)(Quantity of 8 rings in set)
    RING KIT, Piston - .015 Oversize, Piston
    (.015 Oversize)(Quantity of 8 rings in set)
  • 12
    53-857196 LOCK RING
    LOCK RING
  • 13
    644-818141A13 CONNECTING ROD KIT
    CONNECTING ROD KIT
  • 14
    10-763491 SCREW, (.312-24 x .875)
    SCREW, (.312-24 x .875)
  • 15
    12-8M0012298 WASHER
    WASHER
  • 16
    31-8M0045428 BEARING KIT
    BEARING KIT
  • 17
    29-822553 BEARING, Needle
    BEARING, Needle
  • -
    27-8M0046715 GASKET SET
    GASKET SET
  • -
    883511T04 POWERHEAD ASSEMBLY
    (150)
    POWERHEAD ASSEMBLY
    (150)
  • -
    883600T04 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
