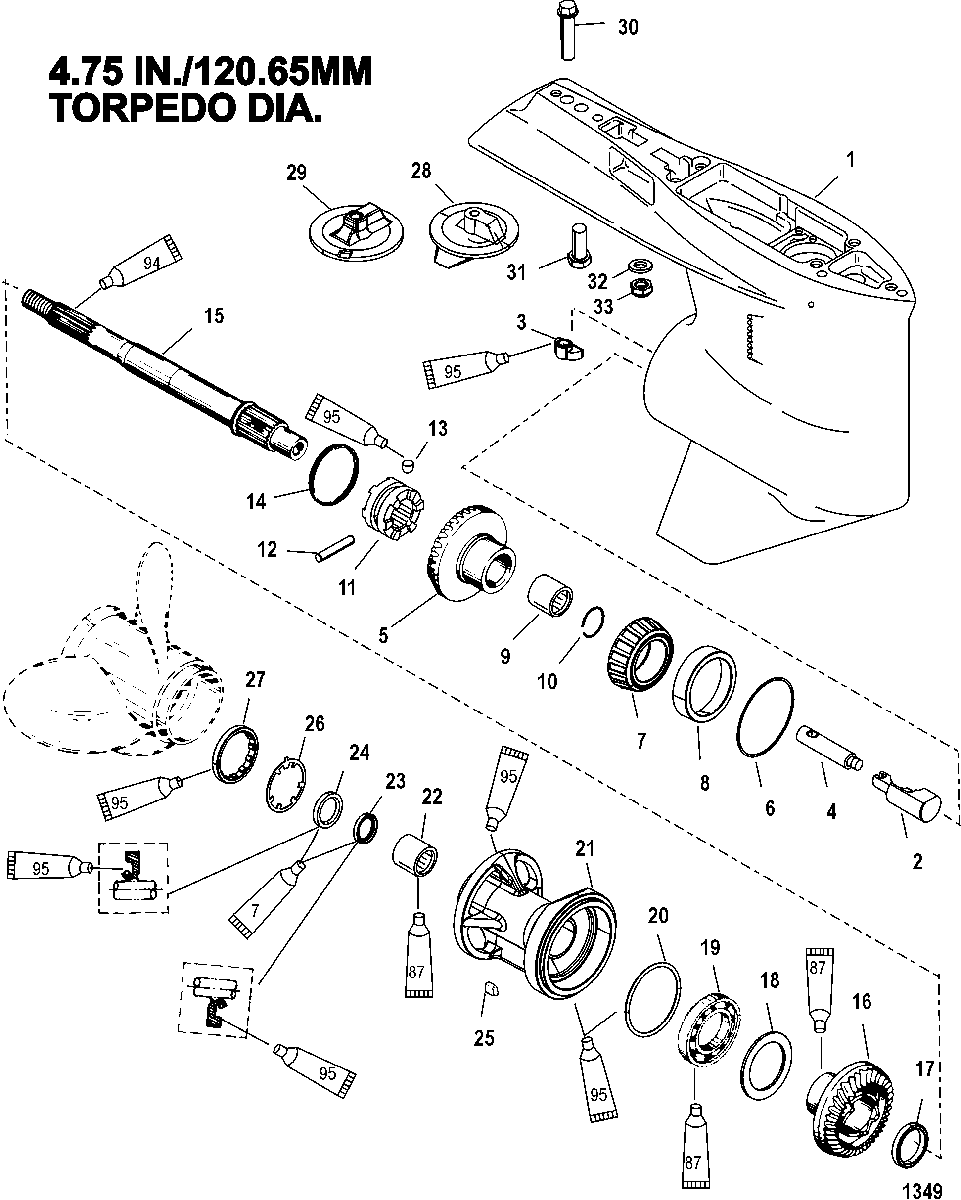

Gear Housing, Propeller Shaft - Standard Rotation для Mariner - V-200 EFI (2.5L) 0T801000 THRU 1B226999
-
№АртикулНазвание
-
-1647-9148T84 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(LONG - 1.87:1)GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(LONG - 1.87:1) -
-1647-9148T85 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(X-LONG - 1.87:1)GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(X-LONG - 1.87:1) -
-1647-9148T81 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(LONG - 2:1)GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(LONG - 2:1) -
-1647-9148T82 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(X-LONG - 2:1)GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(X-LONG - 2:1) -
11647-9148T93 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
289594A1 FOLLOWER ASSEMBLYFOLLOWER ASSEMBLY
-
3789562 SHIFT CAMSHIFT CAM
-
4828287 RODROD
-
543-803615T2 GEAR ASSEMBLY, Forward 1.87:1 - 15/28
(1.87:1 Gear Ratio) SN# 0T979999 & BelowGEAR ASSEMBLY, Forward 1.87:1 - 15/28
(1.87:1 Gear Ratio) SN# 0T979999 & Below -
543-803615T2 GEAR ASSEMBLY, Pinion/Forward
(1.87:1 Gear Ratio) SN# 0T980000 & UpGEAR ASSEMBLY, Pinion/Forward
(1.87:1 Gear Ratio) SN# 0T980000 & Up -
543-803612T2 GEAR ASSEMBLY, Forward 2:1 - 14/28
(2:1 Gear Ratio) SN# 0T979999 & BelowGEAR ASSEMBLY, Forward 2:1 - 14/28
(2:1 Gear Ratio) SN# 0T979999 & Below -
543-803612T2 GEAR ASSEMBLY, Pinion/Forward
(2:1 Gear Ratio) SN# 0T980000 & UpGEAR ASSEMBLY, Pinion/Forward
(2:1 Gear Ratio) SN# 0T980000 & Up -
615-8M0063266 SHIM SETSHIM SET
-
731-30894A1 BEARING SET, Cup And ConeBEARING SET, Cup And Cone
-
8NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
931-30895T BEARING, NeedleBEARING, Needle
-
1053-856823 RING, RetainingRING, Retaining
-
1152-859340T CLUTCHCLUTCH
-
1217-8M0100263 PIN, CrossPIN, Cross
-
1317-828356 PIN, DetentPIN, Detent
-
1424-30893 SPRINGSPRING
-
1544-94148 PROPELLER SHAFTPROPELLER SHAFT
-
1643-828175A1 GEAR ASSEMBLY, Reverse - 15/28
(1.87:1 Gear Ratio)GEAR ASSEMBLY, Reverse - 15/28
(1.87:1 Gear Ratio) -
1643-828177A1 GEAR ASSEMBLY, Reverse - 14/28
(2:1 Gear Ratio)GEAR ASSEMBLY, Reverse - 14/28
(2:1 Gear Ratio) -
1723-824108 SPACERSPACER
-
18681001 RING, ThrustRING, Thrust
-
1930-88957T BEARING, BallBEARING, Ball
-
2025-31534 O-RINGO-RING
-
2143567T1 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
2231-30956T BEARING, NeedleBEARING, Needle
-
2326-14077 SEAL, Oil (INSIDE)SEAL, Oil (INSIDE)
-
2426-76868 SEAL (OUTSIDE)SEAL (OUTSIDE)
-
2528-30281 KEYKEY
-
2614-79447 TAB WASHERTAB WASHER
-
278M2000347 RETAINERRETAINER
-
2831640T07 TRIM TABTRIM TAB
-
2997-76214Q5 ANODE KITANODE KIT
-
3010-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
3110-65210 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
3212-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
3311-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
-26-89238A2 SEAL KITSEAL KIT
-
-52-803491T1 FOLLOWER ASSEMBLY, Clutch/CamFOLLOWER ASSEMBLY, Clutch/Cam
-
-31-803033T1 BEARING AND SEAL KIT (W/O Foward Bearing)BEARING AND SEAL KIT (W/O Foward Bearing)
-
-27-8M0046715 GASKET SETGASKET SET
