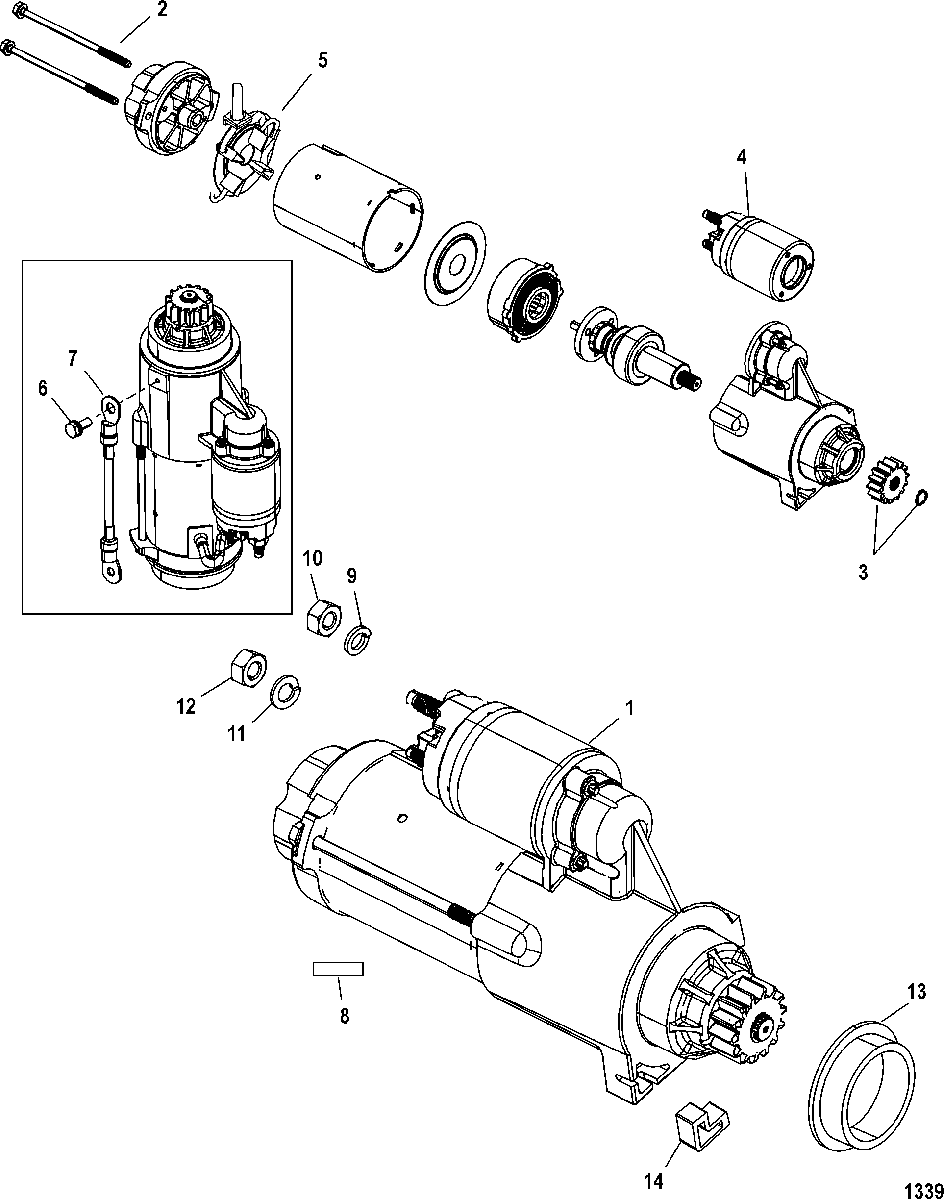

Starter Motor для Mariner - V-200 EFI (2.5L) 0T801000 THRU 1B226999

  • №
    Артикул
    Название
  • 1
    50-892339T01 STARTER MOTOR ASSEMBLY
    SN# 0T960098 & Below
    STARTER MOTOR ASSEMBLY
    SN# 0T960098 & Below
  • 1
    50-892339T01 STARTER MOTOR ASSEMBLY
    SN# 0T960099 & Up
    STARTER MOTOR ASSEMBLY
    SN# 0T960099 & Up
  • 2
    10-803005 THRU BOLT
    THRU BOLT
  • 3
    43-880805A1 GEAR KIT
    GEAR KIT
  • 4
    809463A1 SOLENOID KIT
    SOLENOID KIT
  • 5
    10-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
    SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
  • 6
    84-93388A1 CABLE ASSEMBLY, (6.00 Inches) Black
    CABLE ASSEMBLY, (6.00 Inches) Black
  • 7
    37-8272822 DECAL, Warning, High Voltage
    DECAL, Warning, High Voltage
  • 8
    13-400255 LOCKWASHER, (M5)
    LOCKWASHER, (M5)
  • 9
    11-400211 NUT, (M5) Stainless Steel
    NUT, (M5) Stainless Steel
  • 10
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 11
    11-400213 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 12
    23-8M0034918 COLLAR
    COLLAR
  • 13
    8M0043276 STOP
    STOP
