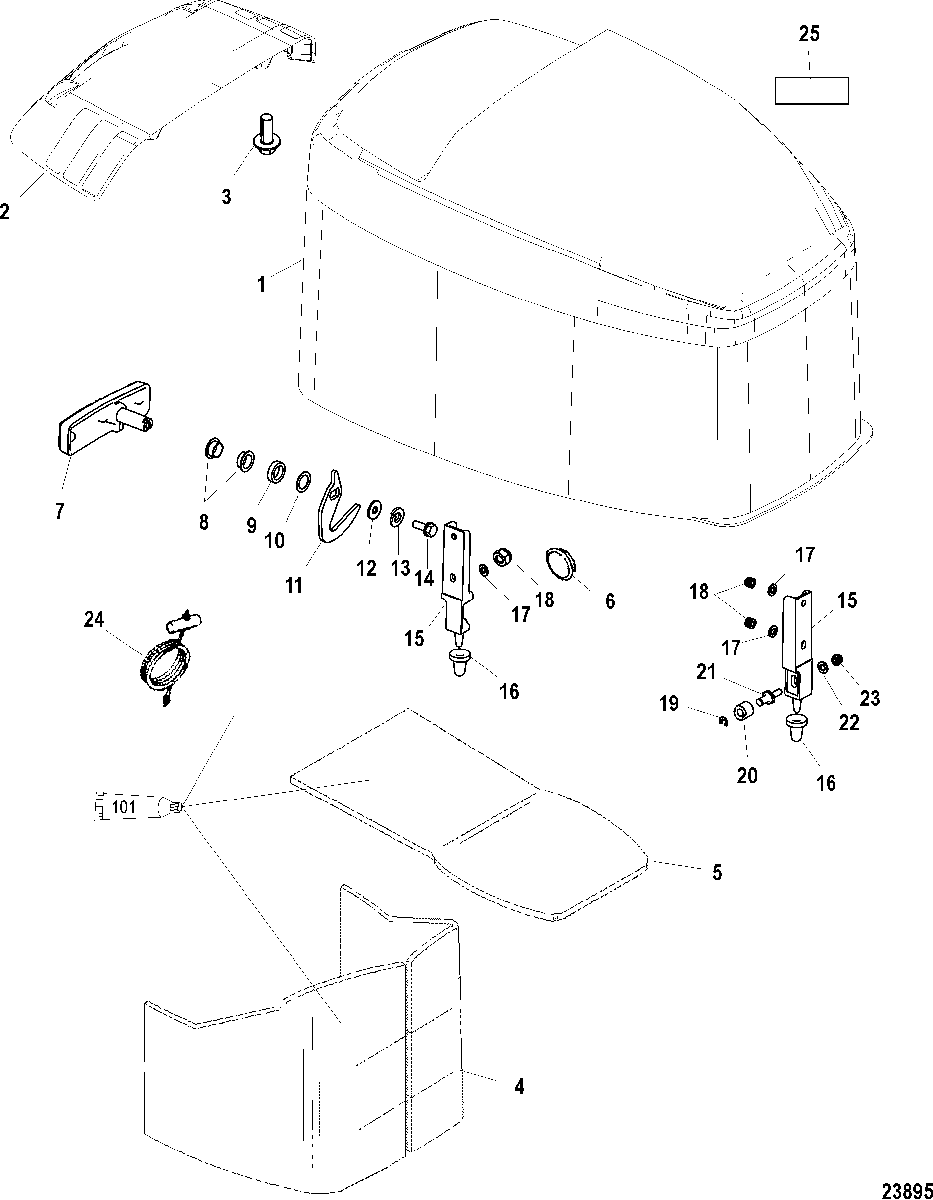

TOP COWL для Mariner - V-175 0G760300 THRU 0G960499
-
№АртикулНазвание
-
1100-8M0107145 TOP COWL ASSEMBLY, Black
(BLACK)TOP COWL ASSEMBLY, Black
(BLACK) -
14021-827328T8 TOP COWL ASSEMBLY, Silver
(SILVER)TOP COWL ASSEMBLY, Silver
(SILVER) -
2821256T03 INLET, Air
(BLACK)INLET, Air
(BLACK) -
2821256T2 INLET, Air
(SILVER)INLET, Air
(SILVER) -
310-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
4828344A02 SOUND BLANKET KITSOUND BLANKET KIT
-
5NSS NOT SOLD SEPARATE, Sound Blanket (TOP)NOT SOLD SEPARATE, Sound Blanket (TOP)
-
619-823865 CAP PLUGCAP PLUG
-
7831207A16 HANDLE
(BLACK)HANDLE
(BLACK) -
7831207A16 HANDLE
(SILVER)HANDLE
(SILVER) -
823-812707 BUSHINGBUSHING
-
923-831214 SPACERSPACER
-
1013-12134 WASHER, WaveWASHER, Wave
-
118M0001081 CAM, Latch ShaftCAM, Latch Shaft
-
1212-4002316 WASHERWASHER
-
1313-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1410-28635 SCREW, (.250-20 x .620) Stainless SteelSCREW, (.250-20 x .620) Stainless Steel
-
158M0036792 BRACKET, FrontBRACKET, Front
-
16815477 BUMPER, LatchBUMPER, Latch
-
1712-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1811-401366 NUT, (M6)NUT, (M6)
-
1953-8237951 RING, RetainingRING, Retaining
-
20815263 ROLLERROLLER
-
218155381 PIN, RollPIN, Roll
-
2212-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
2311-401366 NUT, (M6)NUT, (M6)
-
2447341A11 ROPE AND HANDLE KIT, Manual StartingROPE AND HANDLE KIT, Manual Starting
-
25NSS NOT SOLD SEPARATE, Decal-Starting ProcedureNOT SOLD SEPARATE, Decal-Starting Procedure
