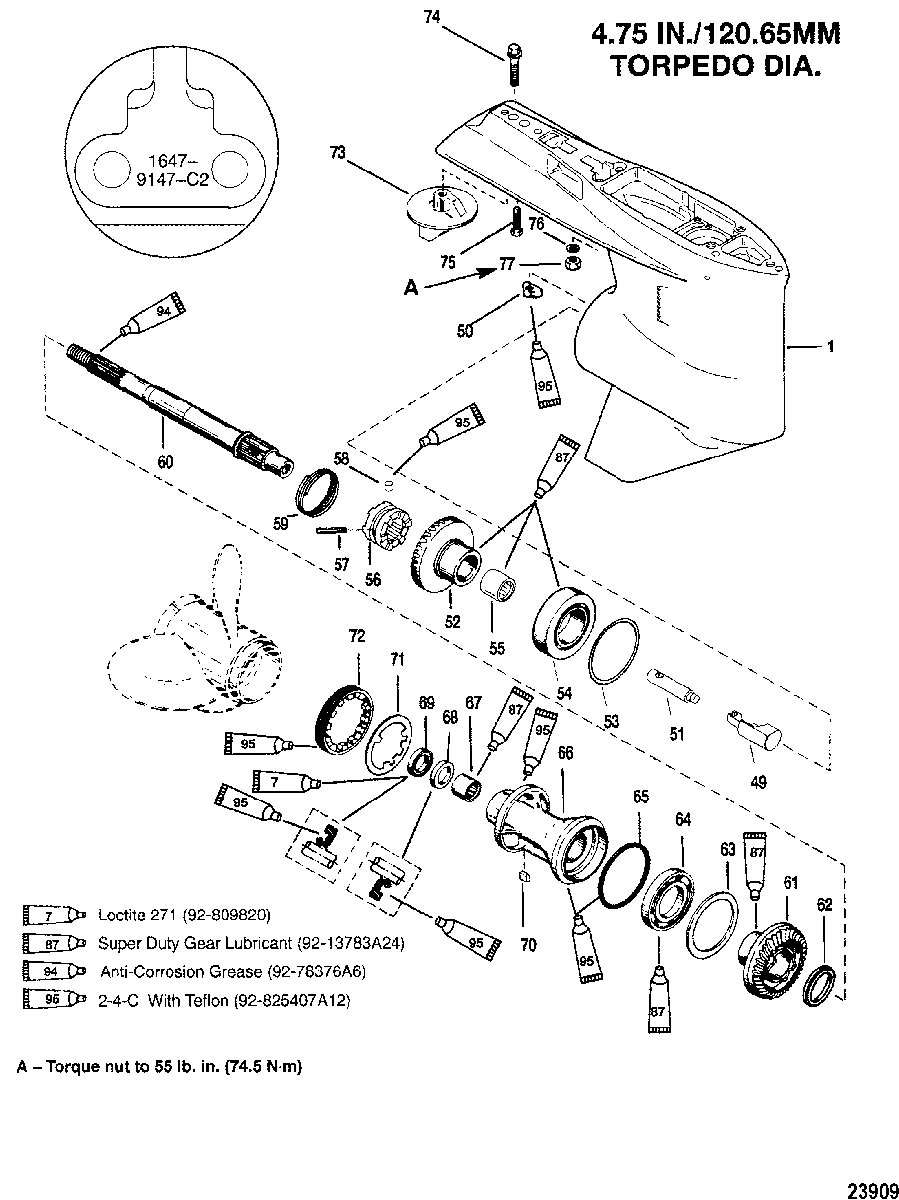

GEAR HOUSING(PROP SHAFT)(STANDARD ROTATION) для Mariner - V-175 0G760300 THRU 0G960499

  • №
    Артикул
    Название
  • 1
    1647-9148T93 GEAR HOUSING ASSEMBLY, Basic
    GEAR HOUSING ASSEMBLY, Basic
  • 49
    89594A1 FOLLOWER ASSEMBLY
    FOLLOWER ASSEMBLY
  • 50
    789562 SHIFT CAM
    SHIFT CAM
  • 51
    828287 ROD
    ROD
  • 52
    43-803615T2 GEAR SET
    (150/XR6/MAG. III/175/200)(1.87:1 - 15/28)
    GEAR SET
    (150/XR6/MAG. III/175/200)(1.87:1 - 15/28)
  • 52
    43-803612T2 GEAR ASSEMBLY, Forward
    (135)(2.0:1 - 14/28)
    GEAR ASSEMBLY, Forward
    (135)(2.0:1 - 14/28)
  • 53
    15-8M0063266 SHIM SET (.006-7-9-10-20)
    SHIM SET (.006-7-9-10-20)
  • 54
    31-30894A1 BEARING SET, Cup And Cone
    BEARING SET, Cup And Cone
  • 55
    31-30895T BEARING, Needle
    BEARING, Needle
  • 56
    52-859340T CLUTCH, Sliding
    CLUTCH, Sliding
  • 57
    17-8M0100263 PIN, Cross
    PIN, Cross
  • 58
    17-828356 PIN, Detent
    PIN, Detent
  • 59
    24-30893 SPRING
    SPRING
  • 60
    44-94148 PROPELLER SHAFT
    PROPELLER SHAFT
  • 61
    43-828175A1 GEAR ASSEMBLY, Reverse - 15/28
    (150/XR6/MAG. III/175/200)(1.87:1)
    GEAR ASSEMBLY, Reverse - 15/28
    (150/XR6/MAG. III/175/200)(1.87:1)
  • 61
    43-828177A1 GEAR ASSEMBLY, Reverse - 14/28
    (135)(2.0:1)
    GEAR ASSEMBLY, Reverse - 14/28
    (135)(2.0:1)
  • 62
    23-824108 SPACER
    SPACER
  • 63
    681001 RING, Thrust
    RING, Thrust
  • 64
    30-88957T BEARING ASSEMBLY, Ball
    BEARING ASSEMBLY, Ball
  • 65
    25-31534 O-RING
    O-RING
  • 66
    43567T1 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 67
    31-30956T BEARING, Needle
    BEARING, Needle
  • 68
    26-14077 SEAL, Oil (INSIDE)
    SEAL, Oil (INSIDE)
  • 69
    26-76868 SEAL (OUTSIDE)
    SEAL (OUTSIDE)
  • 70
    28-30281 KEY
    KEY
  • 71
    14-79447 TAB WASHER
    TAB WASHER
  • 72
    8M2000347 RETAINER
    RETAINER
  • 73
    31640T07 TRIM TAB
    TRIM TAB
  • 73
    97-76214Q5 ANODE KIT
    (TRACKER/XR6/MAG III/175 /200 LONG)
    ANODE KIT
    (TRACKER/XR6/MAG III/175 /200 LONG)
  • 74
    10-806327 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 75
    10-65210 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 76
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    WASHER, (.453 x .812 x .105) Stainless Steel
  • 77
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • -
    27-815791A92 GASKET SET, Engine
    GASKET SET, Engine
  • -
    26-89238A2 SEAL KIT
    SEAL KIT
