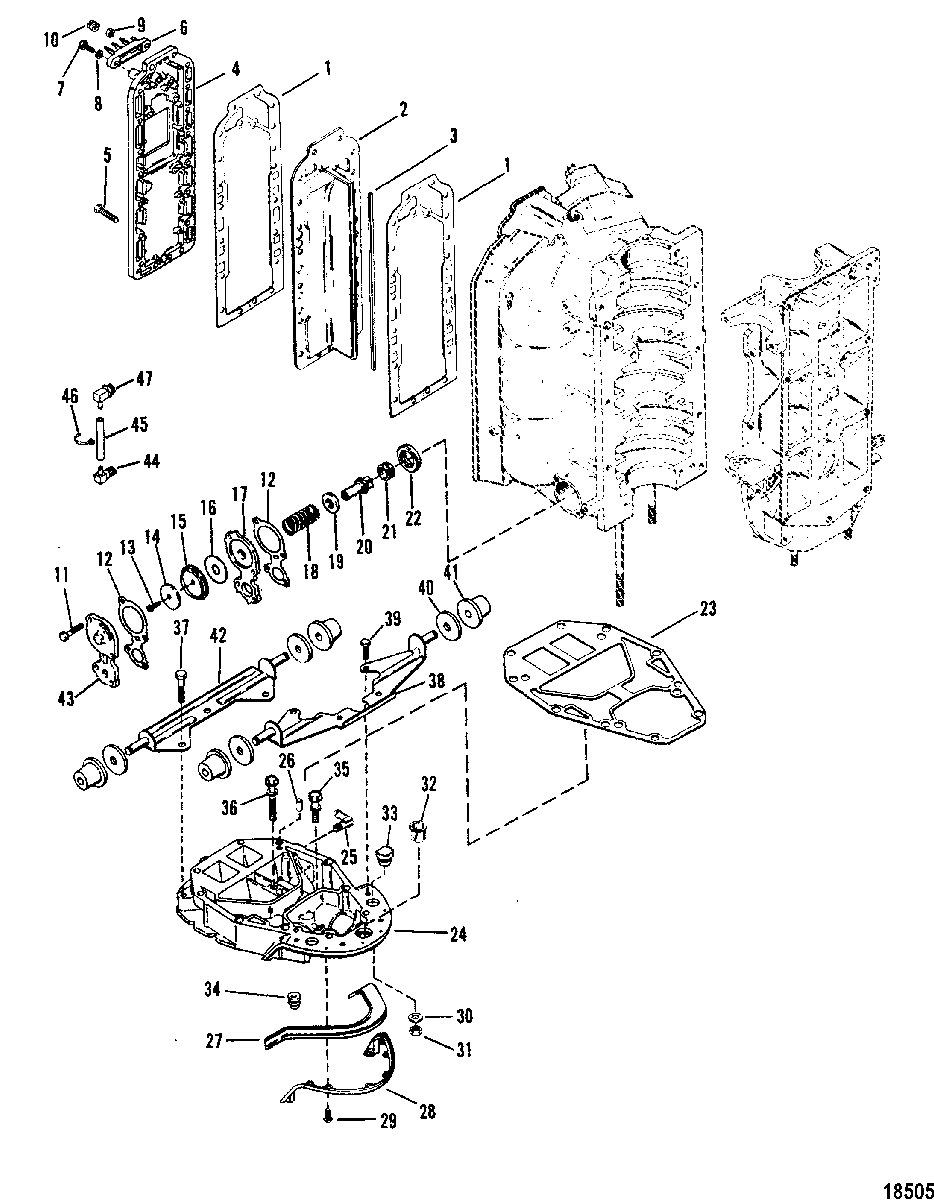

Exhaust Manifold and Exhaust Plate для Mariner - V-175 0C100861 THRU 0C239552

  • №
    Артикул
    Название
  • 1
    27-904841 GASKET, DIVIDER PLATE
    GASKET, DIVIDER PLATE
  • 2
    99169A1 DIVIDER PLATE, DIVIDER
    DIVIDER PLATE, DIVIDER
  • 3
    26-814754 SEAL, DIVIDER PLATE
    SEAL, DIVIDER PLATE
  • 4
    193071 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 5
    10-74824 SCREW, (.312-18 x 1.250), COVER AND PLATE TO CYLINDER BLOCK
    SCREW, (.312-18 x 1.250), COVER AND PLATE TO CYLINDER BLOCK
  • 6
    86-194373 TERMINAL BLOCK (3 TERMINALS)
    TERMINAL BLOCK (3 TERMINALS)
  • 7
    10-31716 SCREW, (.250-20 x .620), TERMINAL BLOCK
    SCREW, (.250-20 x .620), TERMINAL BLOCK
  • 8
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, TERMINAL BLOCK SCREW
    WASHER, (.281 x .500 x .060) Stainless Steel, TERMINAL BLOCK SCREW
  • 9
    11-45076 NUT, (#10-32) Brass, TERMINAL BLOCK
    NUT, (#10-32) Brass, TERMINAL BLOCK
  • 10
    11-813938 CAP NUT, (#10-32)
    CAP NUT, (#10-32)
  • 11
    10-74824 SCREW, (.312-18 x 1.250), COVER TO CYLINDER BLOCK
    SCREW, (.312-18 x 1.250), COVER TO CYLINDER BLOCK
  • 12
    27-78690002 GASKET, RELIEF VALVE PLATE
    GASKET, RELIEF VALVE PLATE
  • 13
    10-69570 SCREW, (#10-16 x .750), DIAPHRAGM TO PLATE
    SCREW, (#10-16 x .750), DIAPHRAGM TO PLATE
  • 14
    12-76451 WASHER, DIAPHRAGM SCREW
    WASHER, DIAPHRAGM SCREW
  • 15
    144791 DIAPHRAGM
    DIAPHRAGM
  • 16
    16496 DEFLECTOR, Water
    DEFLECTOR, Water
  • 17
    16497A1 PLATE, RELIEF VALVE
    PLATE, RELIEF VALVE
  • 18
    24-64878 SPRING, (Black), COMPRESION POPPET VALVE
    SPRING, (Black), COMPRESION POPPET VALVE
  • 19
    12-85303 WASHER, POPPET SPRING
    WASHER, POPPET SPRING
  • 20
    14480 POPPET, VALVE
    POPPET, VALVE
  • 21
    25-64872 GROMMET, POPPET VALVE
    GROMMET, POPPET VALVE
  • 22
    65848 CARRIER, POPPET VALVE
    CARRIER, POPPET VALVE
  • 23
    27-991764 GASKET, EXHAUST PLATE
    GASKET, EXHAUST PLATE
  • 24
    41944A5 PLATE ASSEMBLY, EXHAUST
    PLATE ASSEMBLY, EXHAUST
  • 25
    22-996642 ELBOW, EXHAUST PLATE
    ELBOW, EXHAUST PLATE
  • 26
    17-43044 PIN, Dowel, LOCATING-EXHAUST PLATE
    PIN, Dowel, LOCATING-EXHAUST PLATE
  • 27
    8M0043165 SEAL, EXHAUST PLATE
    SEAL, EXHAUST PLATE
  • 28
    680101 BRACKET, SEAL RETAINING
    BRACKET, SEAL RETAINING
  • 29
    10-48408 SCREW, (#10-16 x .500), BRACKET TO EXHAUST PLATE
    SCREW, (#10-16 x .500), BRACKET TO EXHAUST PLATE
  • 30
    12-20553 WASHER, POWERHEAD STUD
    WASHER, POWERHEAD STUD
  • 31
    11-69254 NUT, POWERHEAD STUD
    NUT, POWERHEAD STUD
  • 32
    23-27132 BUSHING, EXHAUST PLATE
    BUSHING, EXHAUST PLATE
  • 33
    25-19564001 GROMMET
    GROMMET
  • 34
    25-12602002 GROMMET, EXHAUST PLATE
    GROMMET, EXHAUST PLATE
  • 35
    10-66727 SCREW, (.312-18 x 1.250), EXHAUST PLATE ATTACHING
    SCREW, (.312-18 x 1.250), EXHAUST PLATE ATTACHING
  • 36
    10-68783 SCREW, (.312-18 x 2.50), EXHAUST PLATE ATTACHING
    SCREW, (.312-18 x 2.50), EXHAUST PLATE ATTACHING
  • 37
    10-898833 SCREW, (.375-16 x 3.50), EXHAUST PLATE ATTACHING
    SCREW, (.375-16 x 3.50), EXHAUST PLATE ATTACHING
  • 38
    812905T BRACKET ASSEMBLY, FRONT
    BRACKET ASSEMBLY, FRONT
  • 39
    10-90285 SCREW, (.312-18 x .625), FRONT BRACKET
    SCREW, (.312-18 x .625), FRONT BRACKET
  • 40
    12-187031 WASHER
    WASHER
  • 41
    25-18778001 GROMMET
    GROMMET
  • 42
    18578T09 BRACKET ASSEMBLY, Rear, REAR
    BRACKET ASSEMBLY, Rear, REAR
  • 43
    14462A1 COVER, RELIEF VALVE (OLD DESIGN)
    COVER, RELIEF VALVE (OLD DESIGN)
  • 43
    8M0039767 COVER, RELIEF VALVE (NEW DESIGN)
    COVER, RELIEF VALVE (NEW DESIGN)
  • 44
    22-920071 FITTING, (.250-18) (90 DEG.) (NEW DESIGN)
    FITTING, (.250-18) (90 DEG.) (NEW DESIGN)
  • 45
    32-8M0108355 LINE, (57.00 Inches Bulk) (NEW DESIGN)
    LINE, (57.00 Inches Bulk) (NEW DESIGN)
  • 46
    54-816311T TIE STRAP (NEW DESIGN)
    TIE STRAP (NEW DESIGN)
  • 47
    22-8144301 FITTING, (.500-14) (NEW DESIGN)
    FITTING, (.500-14) (NEW DESIGN)
  • -
    27-11338A88 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
