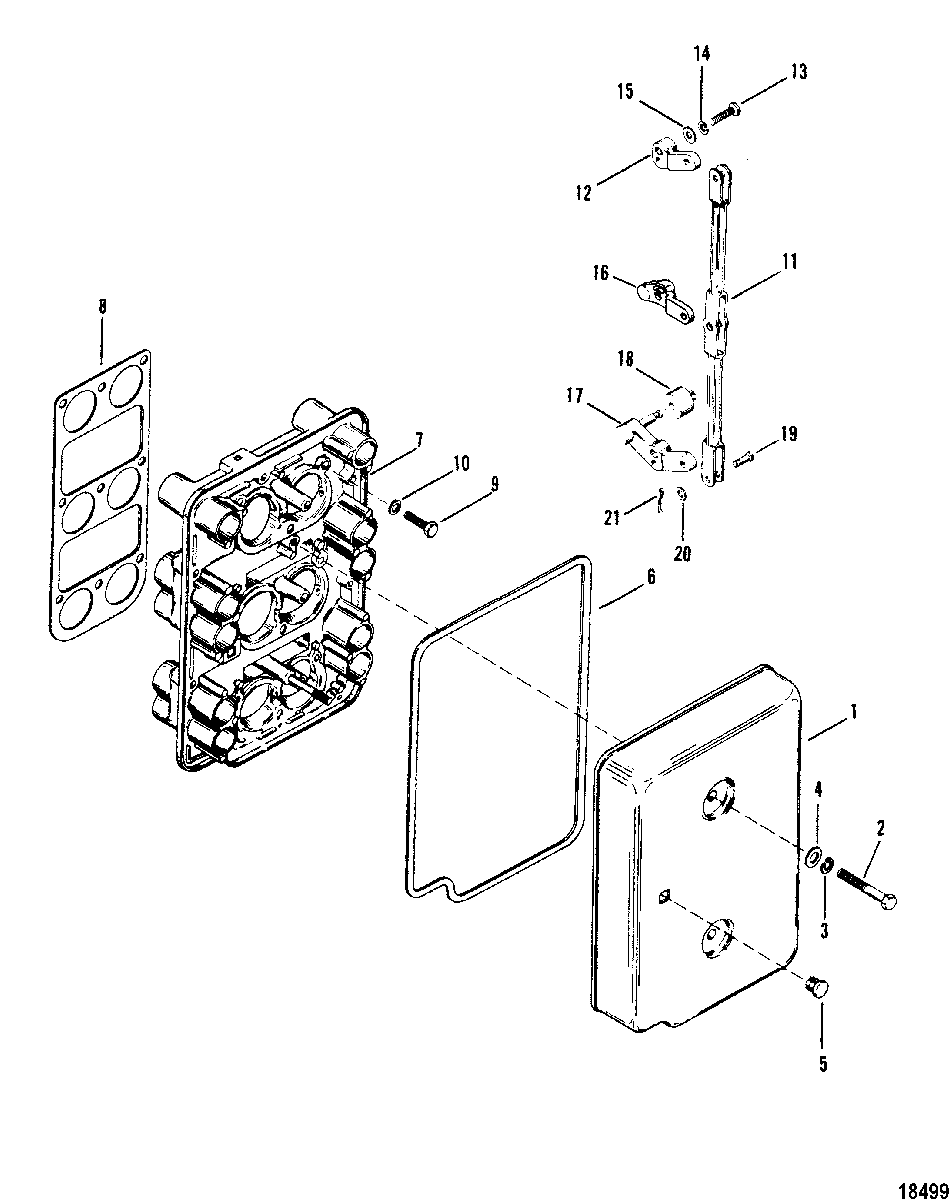

Choke Plate and Throttle Levers для Mariner - V-175 0C100861 THRU 0C239552

  • №
    Артикул
    Название
  • 1
    67246T COVER, INDUCTION SILENCER
    COVER, INDUCTION SILENCER
  • 2
    10-30720 SCREW, (.250-20 x 2.25), COVER TO CHOKE PLATE
    SCREW, (.250-20 x 2.25), COVER TO CHOKE PLATE
  • 3
    13-26992 LOCKWASHER, (.250) Stainless Steel, COVER SCREW
    LOCKWASHER, (.250) Stainless Steel, COVER SCREW
  • 4
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, COVER SCREW
    WASHER, (.281 x .500 x .060) Stainless Steel, COVER SCREW
  • 5
    19-90585 PLUG, INDUCTION SILENCER COVER
    PLUG, INDUCTION SILENCER COVER
  • 6
    27-672751 GASKET, COVER
    GASKET, COVER
  • 7
    799831 PLATE, CHOKE
    PLATE, CHOKE
  • 8
    27-672741 GASKET, CHOKE PLATE TO CARBURETOR
    GASKET, CHOKE PLATE TO CARBURETOR
  • 9
    10-68000 SCREW, (.250-28 x 1.00), CHOKE PLATE TO CARBURETOR
    SCREW, (.250-28 x 1.00), CHOKE PLATE TO CARBURETOR
  • 10
    12-20583 WASHER, CHOKE PLATE SCREW
    WASHER, CHOKE PLATE SCREW
  • 11
    67760 LINK, Throttle
    LINK, Throttle
  • 12
    67759 LEVER, Throttle, UPPER
    LEVER, Throttle, UPPER
  • 13
    10-15124 SCREW, (#10-32 x .750), THROTTLE LEVERS TO THROTTLE LINK
    SCREW, (#10-32 x .750), THROTTLE LEVERS TO THROTTLE LINK
  • 14
    13-26996 LOCKWASHER, (#10) Stainless Steel, THROTTLE LEVERS SCREW
    LOCKWASHER, (#10) Stainless Steel, THROTTLE LEVERS SCREW
  • 15
    12-56681 WASHER, (.203 x .500 x .032), THROTTLE LEVERS SCREW
    WASHER, (.203 x .500 x .032), THROTTLE LEVERS SCREW
  • 16
    41049 LEVER, Throttle, CENTER
    LEVER, Throttle, CENTER
  • 17
    67749 LEVER, Throttle, LOWER
    LEVER, Throttle, LOWER
  • 18
    67748 ROLLER, LOWER THROTTLE LEVER
    ROLLER, LOWER THROTTLE LEVER
  • 19
    17-67297 PIN, Clevis, THROTTLE LEVES TO THROTTLE LINK
    PIN, Clevis, THROTTLE LEVES TO THROTTLE LINK
  • 20
    12-89302 WASHER, (.203 x .406 x .040), CLEVIS PIN
    WASHER, (.203 x .406 x .040), CLEVIS PIN
  • 21
    18-26953 COTTER PIN, CLEVIS PIN
    COTTER PIN, CLEVIS PIN
  • -
    27-11338A88 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
